Datalogic · PD9630-ARK1

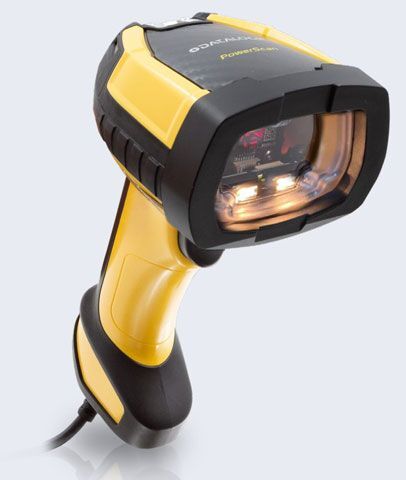

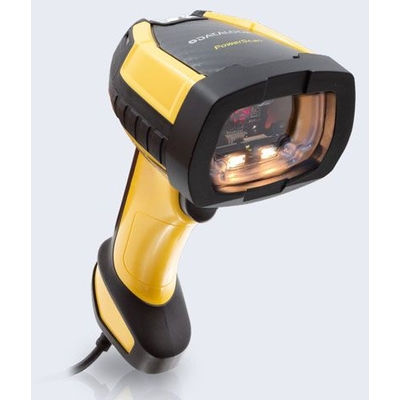

Datalogic PowerScan PD9630 Auto-Range Wired 2D Barcode Scanner Kit

An ultra-rugged wired auto-range scanner kit with 1D and 2D area imaging, USB and serial interfaces, IP65/IP67 ratings, vibration and Datalogic 3GL feedback.

Auto RangeSupplied scanner-range classification

IP65 and IP67Dust- and water-resistant rugged design

USB and serialIncluded USB cable is specifically listed

Product overview

Auto-range industrial imaging with wired multi-interface support

The Datalogic PowerScan PD9630-ARK1 is supplied as a wired auto-range area-imager kit for 1D and 2D codes. Its balanced handheld form uses a white LED, frame-style aiming, vibration, notification LEDs and a beeper.

Good-read feedback combines Datalogic 3 Green Lights, Green Spot and dual good-read LEDs. Motionix motion sensing is described as automatically switching between handheld and presentation scanning modes.

Product details

Technical specifications

Supplied product information
Brand	Datalogic
SKU	PD9630-ARK1
Manufacturer part number as supplied	PD9630ARK1
Product model	PD9630
Product line / series	PowerScan 9600
Product type	Wired barcode-scanner kit
Scanning capability	1D; 2D
Scanner range	Auto Range
Scan pattern	Area; omnidirectional
Image sensor	Imager
Connectivity	Cable
Host interfaces	USB; serial
Cable specifically listed as included	USB
Light / illumination	White LED
Scan mode	Trigger
Minimum print contrast	15%
Maximum ambient light	100,000 lux
Reading angles	52° skew; 52° pitch; 360° roll
Ingress ratings	IP65; IP67
Features	Vibration; notification LED; beep
Colour	Black and yellow
Dimensions as supplied	79 × 140 × 190 mm (W × L × H)
Weight as supplied	318 g
Other kit contents	Not supplied

Helpful answers

Frequently asked questions

What does the PD9630-ARK1 scan?

The supplied capability covers both 1D and 2D barcodes.

Which interfaces are listed?

USB and serial host interfaces are supplied.

What rugged ratings are provided?

The product page lists IP65 and IP67.

What is included in the kit?

A USB cable is specifically listed, but the remaining kit contents are not supplied.

(PD9630-ARK1)

Interfaces/Ports
Host Interface	USB
	Serial
General Information
Product Type	Barcode Scanner Kit
Manufacturer Part Number	PD9630ARK1
Manufacturer Website Address	http://www.datalogic.com
Manufacturer	Datalogic S.p.A
Product Model	PD9630
Product Name	POWERSCAN 9600 PD9630 Barcode Scanner Kit
Product Line	PowerScan
Product Series	9600
Brand Name	Datalogic
Physical Characteristics
Weight (Approximate)	318 g
Durability	Dust Resistant
	Water Resistant
Form Factor	Handheld
Length	140 mm
Height	190 mm
Width	79 mm
Product Color	Black
	Yellow
Color Family	Dual Colour
Rugged	Yes
Miscellaneous
Application/Usage	Inventory
	Logistics
	Manufacturing

	Packing
	Industrial
	Component Tracking
	Assembly Line
	Warehouse
	Sorting
	Picking
Ingress Protection (IP) Rating	IP65
	IP67
Technical Information
Connectivity Technology	Cable
Features	Vibration
	Notification LED
	Beep
Light Source	LED
Scanner Range	Auto Range
Scan Pattern	Area
	Omni-directional
Image Sensor Type	Imager
Illumination Type	LED
Scan Mode	Trigger
Illumination Color	White
Cable Type Included	USB
Scanning Capability	2D
	1D
Reading Angle (Skew)	52°
Reading Angle (Pitch)	52°
Reading Angle (Roll)	360°
Maximum Ambient Light	100000 lux
Minimum Print Contrast	15%
Air Electrostatic Discharge (+/-)	20kV

SKU	PD9630-ARK1
Brand	DATALOGIC
Shipping Weight	0.5900kg
Shipping Width	0.009m
Shipping Height	0.025m
Shipping Length	0.013m
