Premium handheld scanners for corded or cordless value added applications using 2D barcodes | LCA AND ECODESIGN TO REDUCE CARBON FOOTPRINT

The Gryphon 4600 scanner series has been designed with an Ecodesign LCAbased approach, focused on reducing environmental impact through optimized energy efficiency, the use of recycled materials, minimized packaging volume and weight, and increased product durability.

AI BARCODE NEURAL DECODING

A powerful combination of a high-speed dual-core processor, AI-driven algorithms, and advanced neural network-based decoding technology delivers a significant boost in scanning performance. It enables faster decoding of both 1D and 2D barcodes, improves the readability of damaged, poorly printed, or distorted codes, and enhances performance when scanning on shiny, reflective, or curved surfaces.

EASY TO USE, INTUITIVE SCANNING

The Gryphon 4600 scanner delivers an unbeatable scanning experience thanks to the highly visible green central cross LED aimer for easier targeted scanning. Datalogic's 'Green Spot' technology, exclusive 3GL™ (3 Green Lights) and Vibration provide superior good-read feedback. The dual-color LED illumination technology, featuring warm white and red light user-selectable, allows to adapt to any application need on the fly.

FROM NEAR TO FAR, FAST READING

The Gryphon 4600 scanner delivers snappy reading performance on all common 1D and 2D codes, including GS1 Digital Link and Digital Watermarking, as well as smaller, high density, high resolution condensed codes and it also excels at reading barcodes from mobile devices. The dual-sensor optics powering the HP models deliver unprecedented capability to read codes from near to far distances, while the improved motion tolerance allows first pass decoding of fast-moving codes.

WIRELESS COMMUNICATIONS AND WIRELESS CHARGING

The Gryphon 4600 wireless solutions offers both Bluetooth 5.2 classic and low energy (BLE) wireless technology and Datalogic's STAR Cordless System (433/915 MHz radio frequencies). The recharge capability through an inductive charging system eliminates the need for contact cleaning and maintenance. This reliable wireless charging technology ensures 24/7 operation with no interruptions for maintenance or repair, maximizing productivity and performance.

BATTERY AND SUPERCAP POWER PACKS, LONG LASTING

The Gryphon 4600 wireless scanners can exploit both high-capacity LI-Ion battery pack or SuperCapacitor pack (battery free) providing fast charge and long lasting and for outstanding operating experience.

  • LED aimer is a perfect choice for patient-facing applications
  • Wired connectivity makes this scanner ideal for retail and desktop applications

(GD4690-BKK1B-HP)

Interfaces/Ports
Host Interface USB
  Serial
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3250 mAh
Maximum Battery Recharge Time 3.50 Hour
Physical Characteristics
Weight (Approximate) 426 g
Durability Drop Resistant
Form Factor Handheld
Product Color Black
Color Family Black
Product Material Plastic
General Information
Product Type Barcode Scanner Kit
Manufacturer Part Number GD4690-BKK1B-HP
Manufacturer Website Address http://www.datalogic.com
Manufacturer Datalogic S.p.A
Product Model GD4690
Product Name Gryphon GD4690 Barcode Scanner Kit
Product Line Gryphon
Product Series 4600
Brand Name Datalogic
Miscellaneous
Application/Usage Laboratory
  Transportation
  Retail
  Pharmacy
  Commercial Service
  Entertainment
  Healthcare
  Manufacturing
Package Contents
  • Gryphon GD4690 Barcode Scanner
  • Presentation Base
  • USB Cable
Ingress Protection (IP) Rating IP52
Environmental Compliance Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS)
  China Restriction of Hazardous Substances (China RoHS)
Technical Information
Barcode Symbology Supported

1D / Linear Codes:

Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code
  • GS1 Digital Link

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes

OCR:

  • OCR-A
  • OCR-B
  • MICR
Connectivity Technology Cable
Features Beep
  Vibration
  Notification LED
Scanning Distance 1.25 m
Light Source LED
Image Formats BMP
  TIFF
  JPEG
Drop Specification

Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

Depth of Field

Label size, printing resolution, contrast, and ambient light dependent. Minimum distance determined by symbol length and scan angle.

Scan Pattern Omni-directional
Image Sensor Type Imager
Illumination Type LED
Illumination Color Hyper Red/Warm White
Cable Type Included USB
Scanning Capability 2D
  1D
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Maximum Ambient Light 110000 lux
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 0.08 mm
Maximum Element Resolution (Code 39) 0.51 mm
Minimum Element Resolution (DataMatrix) 0.13 mm
Maximum Element Resolution (DataMatrix) 0.25 mm
Minimum Element Resolution (PDF417) 0.13 mm
Maximum Element Resolution (PDF417) 0.25 mm
Air Electrostatic Discharge (+/-) 16kV
AI-powered Yes
Interfaces/Ports
Host Interface USB
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3250 mAh
Maximum Battery Recharge Time 3.50 Hour
Physical Characteristics
Weight (Approximate) 426 g
Durability Drop Resistant
Form Factor Handheld
Product Color Black
Color Family Black
Product Material Plastic
General Information
Product Type Barcode Scanner Kit
Manufacturer Part Number GD4620-BKK1B-HD
Manufacturer Website Address http://www.datalogic.com
Manufacturer Datalogic S.p.A
Product Model GD4620
Product Name Gryphon GD4620 Barcode Scanner
Product Line Gryphon
Product Series 4600
Brand Name Datalogic
Miscellaneous
Application/Usage Transportation
  Laboratory
  Commercial Service
  Healthcare
  Pharmacy
  Entertainment
  Retail
  Manufacturing
Package Contents
  • Gryphon GD4620 Barcode Scanner
  • Presentation Base
  • USB Cable
Ingress Protection (IP) Rating IP52
Environmental Compliance China Restriction of Hazardous Substances (China RoHS)
Technical Information
Barcode Symbology Supported

1D / Linear Codes:

Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code
  • GS1 Digital Link

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes

OCR:

  • OCR-A
  • OCR-B
  • MICR
Connectivity Technology Cable
Features Vibration
  Grayscale Image Capture
  Beep
  Notification LED
  3GL
Scanning Distance 520.70 mm
Light Source LED
Image Formats JPEG
  TIFF
  BMP
Scanner Range High Density
Drop Specification

Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

Depth of Field

Label size, printing resolution, contrast, and ambient light dependent. (*) Minimum distance determined by symbol length and scan angle.

Scan Pattern Omni-directional
Image Sensor Type Imager
Illumination Type LED
Illumination Color Hyper Red/Warm White
Cable Type Included USB
Scanning Capability 1D
  2D
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Maximum Ambient Light 110000 lux
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 0.08 mm
Maximum Element Resolution (Code 39) 0.51 mm
Minimum Element Resolution (DataMatrix) 0.13 mm
Maximum Element Resolution (DataMatrix) 0.25 mm
Minimum Element Resolution (PDF417) 0.13 mm
Maximum Element Resolution (PDF417) 0.25 mm
Air Electrostatic Discharge (+/-) 16kV
AI-powered Yes
SKU GD4690-BKK1B-HP
Brand DATALOGIC
Shipping Weight 0.3800kg
Shipping Width 0.110m
Shipping Height 0.080m
Shipping Length 0.225m
Shipping Cubic 0.001980000m3

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

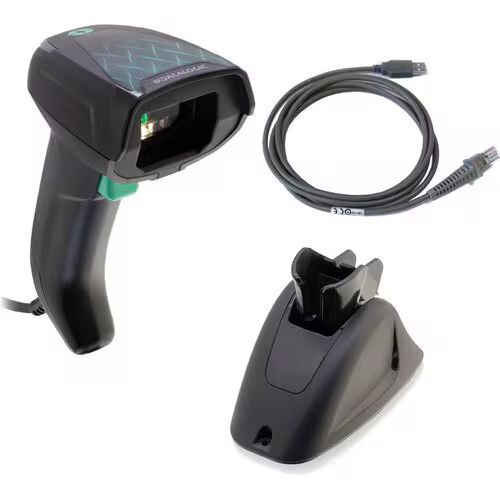

Datalogic Gryphon GD4690-BKK1B-HP 2D Scanner with USB/RS-232+Presentation Base Cable - Black

Model # GD4690-BKK1B-HP

  • SKU: GD4690-BKK1B-HP

$303.00
In Stock
