Zebra Barcode Scanner DS3678-ER3U42A2SVW
Model # DS3678-ER3U42A2SVW
-
SKU: DS3678-ER3U42A2SVW
Don't pay: $1,890.00
$1,709.00
SAVE $181.00 (10%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

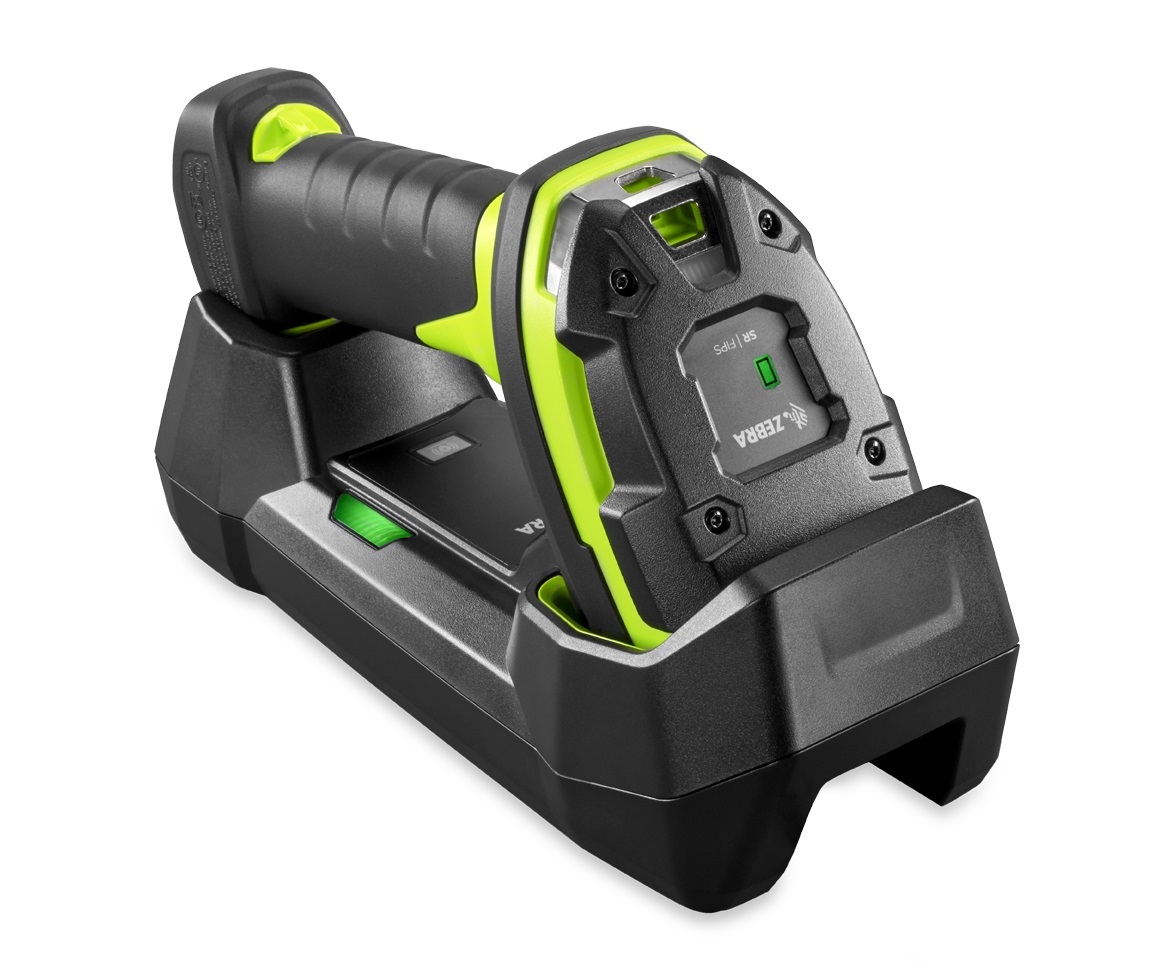

Zebra DS3678-ER Ultra-Rugged Extended-Range USB Cradle Scanner Kit
A wireless DS3678-ER extended-range scanner kit identified with Bluetooth, standard cradle, USB components and no AC line cord.
Product overview
Extended-range wireless kit with USB cradle and power components
The Zebra DS3678-ER3U42A2SVW is identified as a 3600 Series extended-range barcode scanner kit with wireless Bluetooth connectivity, a standard cradle and USB components.
The supplied kit list names a DS3678-ER2F003VZWW scanner, CBA-U42-S07PAR shielded USB cable, STB3678-C100F3WW cradle, PWR-BGA12V50W0WW power supply and CBL-DC-451A1-01 DC cable. It states that no line cord is supplied and references adding a CAIEC power cable.
The approved specification table lists 1D and 2D imaging, omnidirectional scanning, a 218.44 mm scanning-distance value, multiple 2.4 m drops and the Industrial Green product colour.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS3678-ER3U42A2SVW |
| Product model | DS3678-ER |
| Product series | 3600 |
| Product type | Extended-range barcode scanner kit |
| Scanning capability | 1D and 2D |
| Scanner range | Extended range |
| Scanning distance as supplied | 218.44 mm |
| Connectivity | Wireless Bluetooth |
| Scan pattern | Omnidirectional |
| Image sensor | Imager |
| Cable type included | USB |
| Drop specification | Multiple 8 ft. / 2.4 m drops to concrete |
| Ingress protection | Scanner: IP67; cradle: IP65 |
| Field of view | 42° horizontal; 28° vertical |
| Reading angles | 60° skew; 60° pitch; 360° roll |
| Minimum print contrast | 15% |
| DataMatrix element resolution | 0.25 mm minimum; 5.08 mm maximum |
| Dimensions | 185.4 × 76.2 × 142.2 mm |
| Weight | 436 g |
| Colour as supplied | Catalogue name: black; description/specification: Industrial Green confirmation required |
| Scanner listed | DS3678-ER2F003VZWW |
| USB cable listed in kit description | CBA-U42-S07PAR; specification also says USB cable separate confirmation required |
| Cradle listed | STB3678-C100F3WW |
| Power supply listed | PWR-BGA12V50W0WW |
| DC cable listed | CBL-DC-451A1-01 |
| AC line cord | Not included; CAIEC power cable referenced |
Helpful answers
Frequently asked questions
What range type is listed?
The specification table identifies Extended Range.
Does the kit use Bluetooth?
Yes. Bluetooth and wireless connectivity are listed.
Is an AC line cord included?
No. The supplied kit wording says to add a CAIEC power cable.
Why are the colour and USB cable details flagged?
The supplied catalogue name, kit description and specification table conflict, so confirmation is required.
(DS3678-ER3U42A2SVW)
Network & Communication
| Bluetooth | Yes |
Miscellaneous
| Additional Information | USB Cable separate |
| Application/Usage | Warehouse |
| Manufacturing | |
| Industrial | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP67 |
| IP65 |
Technical Information
| Barcode Symbology Supported |
1D: 2D: Digimarc: IUID Support: |
| Connectivity Technology | Wireless |
| Scanning Distance | 218.44 mm |
| Scanner Range | Extended Range |
| Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (DataMatrix) | 5.08 mm |
Physical Characteristics
| Weight (Approximate) | 436 g |
| Form Factor | Handheld |
| Height | 185.4 mm |
| Width | 76.2 mm |
| Depth | 142.2 mm |
| Product Color | Industrial Green |
| Rugged | Yes |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS3678-ER3U42A2SVW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS3678-ER |
| Product Name | DS3678-ER Barcode Scanner Kit |
| Product Series | 3600 |
| Brand Name | Zebra |
| SKU | DS3678-ER3U42A2SVW |
| Brand | ZEBRA |
| Shipping Weight | 2.1000kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.160m |
| Shipping Length | 0.310m |
| Shipping Cubic | 0.012896000m3 |
Manufacturer warranty: 36 Month Warranty
