Zebra · DS3608-XR3U4602ZVW

Zebra DS3608-XR Ultra-Rugged Extended-Range 1D/2D USB Scanner Kit

An Industrial Green corded extended-range imager kit with a shielded USB cable for 1D and 2D barcode capture.

5 cm to over 32 mSupplied barcode reading range

3.05 m drop10 ft. drop to concrete stated

USB kitShielded CBA-U46-S07ZAR cable included

Product overview

Extended-range corded scanning with a shielded USB cable

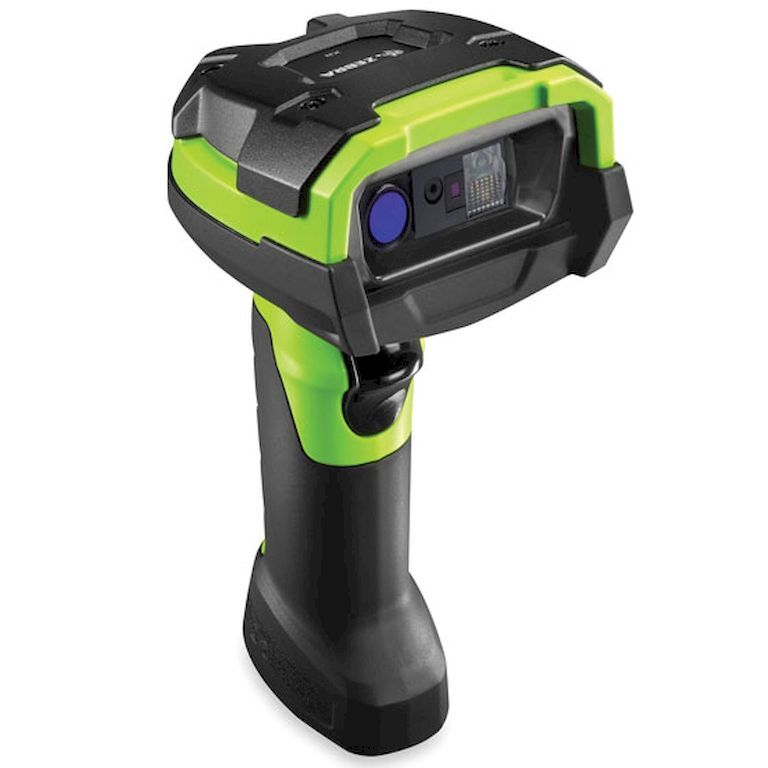

The Zebra DS3608-XR3U4602ZVW kit combines an Industrial Green DS3608-XR extended-range scanner with a CBA-U46-S07ZAR shielded USB cable.

The approved page states barcode reading from as close as 2 in./5 cm to over 105 ft./32 m. Compared with the DS3600-ER, it also states more than 40% greater scanning range, aimer visibility increased by up to seven times and a 10% reduction in device weight.

USB host connectivity, cable operation, vibration feedback and 123Scan configuration are listed. The supplied ruggedness statement specifies 10 ft. drops to concrete and operation in hot or cold extreme temperatures.

Product details

Technical specifications

Supplied product information
Brand	Zebra
SKU / manufacturer part number	DS3608-XR3U4602ZVW
Product model	DS3608-XR
Product type	Extended-range barcode scanner kit
Scanning capability	1D and 2D
Reading range as supplied	2 in. / 5 cm to over 105 ft. / 32 m
Connectivity	Corded
Host interface	USB
Feedback	Vibration
Drop specification as supplied	10 ft. / 3.05 m to concrete
Scanner included	Zebra DS3608-XR extended-range scanner
Cable included	CBA-U46-S07ZAR shielded USB cable
Colour	Industrial Green
Rugged	Yes
Shipping weight as supplied	0.5300 kg

Helpful answers

Frequently asked questions

What scanning range is stated?

The page states from 2 in./5 cm to over 105 ft./32 m.

What is included in the kit?

An Industrial Green DS3608-XR scanner and CBA-U46-S07ZAR shielded USB cable are listed.

Is this a corded USB scanner?

Yes. Cable connectivity and a USB host interface are stated.

What drop specification is supplied?

The page states 10 ft. drops to concrete.

(DS3608-XR3U4602ZVW)

Interfaces/Ports
Host Interface	USB
Technical Information
Connectivity Technology	Cable
Features	Vibration
Physical Characteristics
Product Color	Green
Color Family	Green

Rugged	Yes
General Information
Product Type	Barcode Scanner Kit
Manufacturer Part Number	DS3608-XR3U4602ZVW
Manufacturer Website Address	http://www.zebra.com/ap/en.html
Manufacturer	Zebra Technologies Corporation
Product Model	DS3608-XR
Product Name	DS3608-XR Barcode Scanner Kit
Brand Name	Zebra
