View PDF BrochureComplete USB kit
Includes the QD2220 scanner, USB cable 90A052065 and stand STD-QW25-BK.
Datalogic QD2220 Barcode Scanner Handheld With Stand 1D USB
Model # QD2220-BKK1S
-
SKU: QD2220-BKK1S
- Pick Up Available
- Australian Warranty
- Checkout Securely
Datalogic product

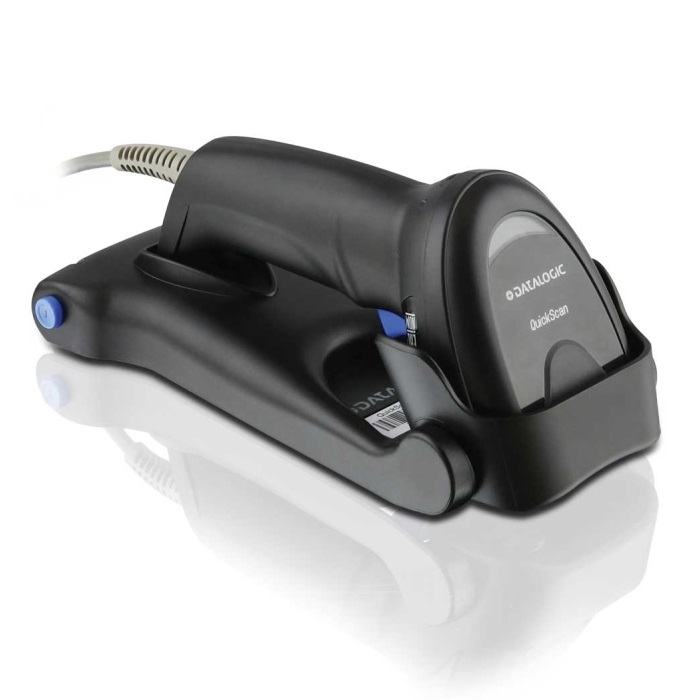

Datalogic QuickScan QD2220 1D USB Scanner Kit with Stand
A black USB-only corded 1D linear imager kit with scanner, cable and stand, visible LED aiming, IP42 protection and a five-year warranty.
1D standard-range imaging
Reads supported linear codes, including long barcodes used on bills, documents and packaging.
Five-year warranty
The supplied warranty field states five years of manufacturer coverage.
Entry-level corded scanning
The QuickScan QD2220 provides USB-only linear imaging for compatible 1D barcode applications.
Visible aiming and feedback
Red LED aiming plus visual and audible good-read indications provide direct operator confirmation.
Screen and document use
The supplied description includes long codes and screen-based coupon reading through plexiglass barriers.
Lightweight protected body
The scanner weighs approximately 123 grams and carries an IP42 ingress-protection rating.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised Datalogic reseller. This product is supplied with the stated five-year Datalogic manufacturer warranty.
Frequently asked questions
What is included in the QD2220 kit?
The kit contains the scanner, USB cable 90A052065 and stand STD-QW25-BK.
Does it scan 2D barcodes?
No. The supplied scanning capability is 1D.
Which interface does it use?
It is a USB-only corded scanner.
What warranty period is supplied?
The source states a five-year manufacturer warranty.
(QD2220-BKK1S)
Datalogic QuickScan QD2220 1D USB Scanner Kit with Stand features
Linear LED imaging
Supports the supplied standard-range 1D barcode applications.
Stand and cable included
Ships with the listed USB cable and desktop stand.
Fast motion tolerance
Carries the supplied 1016mm/s motion-tolerance figure.
IP42 lightweight housing
Combines the stated ingress rating with a 123-gram handheld design.
This is the USB-only black kit with cable 90A052065 and stand STD-QW25-BK.
Datalogic QuickScan QD2220 1D USB Scanner Kit with Stand specifications
Product details
| SKU / model | QD2220-BKK1S |
|---|---|
| Product line / series | Datalogic QuickScan I 2200 |
| Product type | Corded 1D barcode scanner kit |
| Package contents | Scanner; USB cable 90A052065; stand STD-QW25-BK |
| Host interface | USB |
| Connectivity | Cable |
| Scanning capability | 1D |
| Scanner range | Standard Range |
| Scan pattern | Linear |
| Image sensor | CCD / imager |
| Light and illumination | Red LED |
| Scan mode | Trigger |
| Motion tolerance | 1016 mm/s |
| Maximum ambient light | 120000 lux |
| Minimum print contrast | 15% |
| Code 39 element resolution | 0.100.51 mm |
| Reading angles | 65° skew; 65° pitch; 45° roll |
| Input / standby current | 165 mA / 40 mA |
| Ingress protection | IP42 |
| Approximate weight | 123 g |
| Colour | Black |
Warranty
| Coverage | 5-year manufacturer warranty |
|---|
| SKU | QD2220-BKK1S |
| Brand | DATALOGIC |
| Shipping Weight | 0.5500kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.024m |
| Shipping Length | 0.013m |
5-year manufacturer warrantyDatalogic
