View PDF BrochureZebra DS4608 Barcode Scanner Handheld With Stand 2D USB
Model # DS4608-SR7U2100SGW
-
SKU: DS4608-SR7U2100SGW
Don't pay: $200.00
$179.00
SAVE $21.00 (10%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

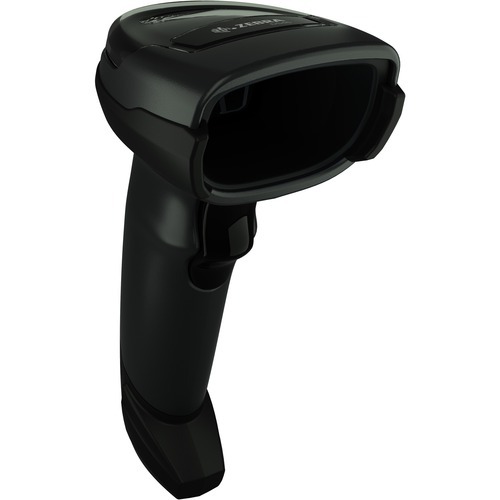

Zebra DS4608-SR Standard-Range 1D/2D USB Scanner Kit with Stand
A Twilight Black corded standard-range imager kit with an included stand and USB cable.
Product overview
Standard-range USB kit with confirmed stand
The Zebra DS4608-SR7U2100SGW is identified as a DS4608 standard-range barcode scanner kit with a stand and USB cable included.
The supplied specifications list 1D and 2D barcode formats plus OCR-A, OCR-B, MICR and US Currency. A 710 mm scanning-distance value and UPC capture up to 28 inches are also stated.
The corded imager uses a multi-interface host connection and is listed with IP52 protection and multiple 1.8 m drops to concrete.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS4608-SR7U2100SGW |
| Product model | DS4608 |
| Product series | DS4600 |
| Product type | Barcode scanner kit with stand |
| Scanner range | Standard range |
| Scanning capability | 1D and 2D |
| OCR formats listed | OCR-A, OCR-B, MICR and US Currency |
| Connectivity | Cable |
| Host interface | Multi-interface |
| Stand included | Yes |
| Cable included | USB |
| Scanning distance as supplied | 710 mm |
| UPC capture distance stated in narrative | Up to 28 in. |
| Image sensor | Imager |
| Drop specification | Multiple drops at 6 ft. / 1.8 m to concrete |
| Ingress protection | IP52 |
| Field of view | 36° horizontal; 23° vertical |
| Reading angles | 60° skew; 60° pitch; 360° roll |
| Minimum print contrast | 15% |
| Applications stated | Inventory, hospitality, industrial and retail |
| Dimensions | 165.1 × 66 × 99.1 mm |
| Approximate weight | 161.9 g |
| Colour | Twilight Black |
Helpful answers
Frequently asked questions
Is a stand included with this SKU?
Yes. The approved specification block explicitly lists the stand as included.
Is a USB cable included?
Yes. USB is listed as the included cable type.
What barcode capability is stated?
The page lists 1D and 2D formats plus supplied OCR formats.
What ruggedness details are supplied?
IP52 protection and multiple 1.8 m drops to concrete are stated.
(DS4608-SR7U2100SGW)
Interfaces/Ports
| Host Interface | Multi-interface |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Cable |
| Scanning Distance | 710 mm |
| Scanner Range | Standard Range |
| Drop Specification | Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
| Image Sensor Type | Imager |
| Stand Included | Yes |
| Cable Type Included | USB |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 36° |
| Field of View (Vertical) | 23° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
Miscellaneous
| Application/Usage | Inventory |
| Hospitality | |
| Industrial | |
| Retail | |
| Ingress Protection (IP) Rating | IP52 |
Physical Characteristics
| Weight (Approximate) | 161.9 g |
| Form Factor | Handheld |
| Height | 165.1 mm |
| Width | 66 mm |
| Depth | 99.1 mm |
| Product Color | Twilight Black |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS4608-SR7U2100SGW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS4608 |
| Product Name | DS4608 Barcode Scanner Kit |
| Product Series | DS4600 |
| Brand Name | Zebra |
| SKU | DS4608-SR7U2100SGW |
| Brand | ZEBRA |
| Shipping Weight | 0.6800kg |
| Shipping Width | 0.014m |
| Shipping Height | 0.024m |
| Shipping Length | 0.019m |
