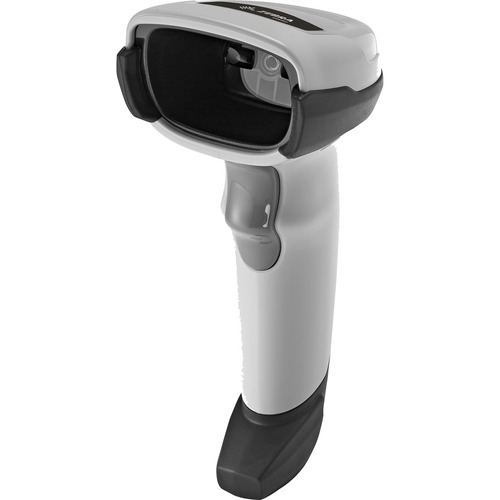

Zebra DS2208 Barcode Scanner Handheld With Stand 2D USB - White
Model # DS2208-SR6U2100SGW
-
SKU: DS2208-SR6U2100SGW
Don't pay: $447.00
$127.00
SAVE $320.00 (72%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS2208 Standard-Range 1D/2D USB Scanner Kit with Stand White
A Nova White corded DS2208-SR kit with shielded USB cable and stand, 30 scans per second, standard-range omnidirectional scanning and IP42 rating.
Product overview
Complete white USB scanning kit
The Zebra DS2208-SR6U2100SGW is a Nova White handheld barcode-scanner kit. The supplied title identifies a DS2208-SR00006ZZWW scanner, CBA-U21-S07ZBR shielded USB cable and 20-71043-04R stand.
The approved specifications list USB cable connectivity, standard-range omnidirectional 1D/2D scanning at 30 scans per second, a 368.30 mm scanning distance and IP42 rating.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS2208-SR6U2100SGW |
| Product model | DS2208-SR |
| Product type | Barcode scanner kit |
| Scanner included | DS2208-SR00006ZZWW |
| Cable included | CBA-U21-S07ZBR shielded USB cable |
| Stand included | 20-71043-04R |
| Host interface | USB |
| Scanning capability | 1D and 2D |
| Scan pattern / rate | Omnidirectional; 30 scans per second |
| Scanning distance | 368.30 mm |
| Scanner range | Standard range |
| Image sensor | Imager |
| Drop specification | Multiple drops from 1.5 m to concrete |
| Ingress protection | IP42 |
| Field of view | 33° horizontal; 25° vertical |
| Reading angles | 65° skew; 65° pitch; 360° roll |
| Maximum ambient light | 107,600 lux |
| Minimum print contrast | 25% |
| Dimensions | 165.1 × 66 × 99.1 mm |
| Weight | 161.6 g |
| Colour | Nova White |
| Barcode number | 5711783398493 |
Helpful answers
Frequently asked questions
What is included in the white kit?
The title lists the DS2208-SR00006ZZWW scanner, a shielded USB cable and the 20-71043-04R stand.
What scan rate is stated?
The supplied specification lists 30 scans per second.
Does it scan 1D and 2D barcodes?
Yes. Both capabilities and their supported symbologies are listed.
What durability details are supplied?
The page lists IP42 and multiple-drop resistance from 1.5 m to concrete.
What colour is the scanner?
Nova White is listed.
(DS2208-SR6U2100SGW)
Interfaces/Ports
| Host Interface | USB |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Cable |
| Scanning Distance | 368.30 mm |
| Scanner Range | Standard Range |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Scan Pattern | Omni-directional |
| Scan Rate | 30 scan/s |
| Image Sensor Type | Imager |
| Stand Included | Yes |
| Cable Type Included | USB |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 33° |
| Field of View (Vertical) | 25° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 127 mm/s |
| Maximum Ambient Light | 107600 lux |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 0.13 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
Physical Characteristics
| Weight (Approximate) | 161.6 g |
| Form Factor | Handheld |
| Height | 165.1 mm |
| Width | 66 mm |
| Depth | 99.1 mm |
| Product Color | Nova White |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS2208-SR6U2100SGW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Packaged Quantity | 1 |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS2208-SR |
| Product Name | DS2208-SR Handheld Barcode Scanner with Stand |
| Product Series | DS2200 |
| Brand Name | Zebra |
Miscellaneous
| Application/Usage | Logistics |
| Transportation | |
| Retail | |
| Light/Clean Manufacturing | |
| Industrial | |
| Government | |
| Hospitality | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP42 |
| SKU | DS2208-SR6U2100SGW |
| Barcode # | 5711783398493 |
| Brand | ZEBRA |
| Shipping Weight | 0.6700kg |
| Shipping Width | 0.015m |
| Shipping Height | 0.024m |
| Shipping Length | 0.019m |
