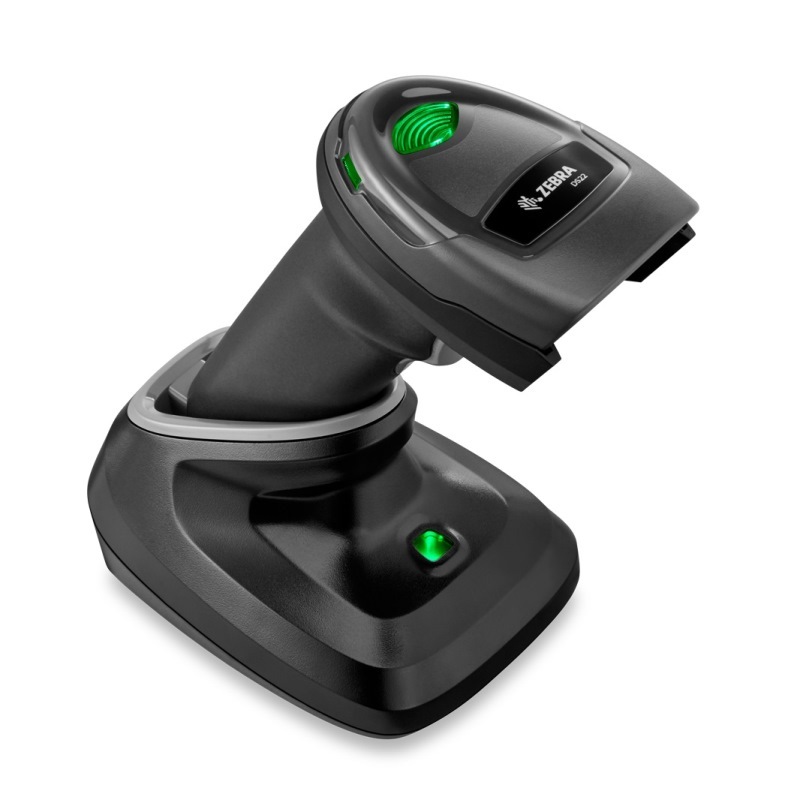

View PDF BrochureZebra DS2278 Barcode Scanner Handheld With Presentation Cradle 2D USB Bluetooth - Black
Model # DS2278-SR7U2100PRW
-
SKU: DS2278-SR7U2100PRW
Don't pay: $318.00
$299.00
SAVE $19.00 (6%)
Stock Availability
🟢Live
ONLINE: ✓ In Stock
Vermont VIC: ✓ In Stock
(Click & Collect Available)
(Click & Collect Available)
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS2278-SR 1D/2D USB Bluetooth Presentation Cradle Kit Black
A Twilight Black standard-range DS2278-SR wireless scanner kit with USB cable, Bluetooth connectivity and presentation cradle.
Product overview
Black standard-range presentation-cradle kit
The Zebra DS2278-SR7U2100PRW is a Twilight Black DS2200 Series scanner kit with presentation cradle and USB cable. The approved specifications list wireless Bluetooth connectivity and standard-range 1D/2D scanning.
The page states a 368 mm scanning distance, omnidirectional point-and-shoot operation, IP42 rating and a design for multiple 1.5 m drops to concrete.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS2278-SR7U2100PRW |
| Product model | DS2278-SR |
| Product series | DS2200 |
| Product type | Barcode scanner kit |
| Kit format | Presentation cradle with USB cable |
| Host interface | USB |
| Bluetooth | Yes |
| Connectivity | Wireless |
| Scanning capability | 1D and 2D |
| Scanner range | Standard range |
| Scanning distance | 368 mm |
| Image sensor | Imager |
| Drop specification | Multiple drops from 1.5 m to concrete |
| Ingress protection | IP42 |
| Field of view | 33° horizontal; 25° vertical |
| Reading angles | 65° skew; 65° pitch; 360° roll |
| Motion tolerance | 127 mm/s |
| Maximum ambient light | 107,600 lux |
| Minimum print contrast | 25% |
| Dimensions | 175.3 × 66 × 99.1 mm |
| Weight as supplied | 3.40 kg |
| Colour | Twilight Black |
| Barcode number | 4060533180224 |
Helpful answers
Frequently asked questions
What is the stated scanning range?
The page lists a standard-range scanning distance of 368 mm.
Does the kit use Bluetooth?
Yes. Bluetooth and wireless connectivity are stated.
What durability details are listed?
IP42 and multiple drops from 1.5 m to concrete are stated.
What colour is the kit?
Twilight Black is listed.
(DS2278-SR7U2100PRW)
Interfaces/Ports
| Host Interface | USB |
Network & Communication
| Bluetooth | Yes |
Technical Information
| Barcode Symbology Supported |
1D: 2D:
|
| Connectivity Technology | Wireless |
| Scanning Distance | 368 mm |
| Scanner Range | Standard Range |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Scan Pattern | Linear |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 33° |
| Field of View (Vertical) | 25° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 127 mm/s |
| Maximum Ambient Light | 107600 lux |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 0.13 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
Physical Characteristics
| Weight (Approximate) | 3.40 kg |
| Form Factor | Handheld |
| Height | 175.3 mm |
| Width | 66 mm |
| Depth | 99.1 mm |
| Product Color | Twilight Black |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS2278-SR7U2100PRW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS2278-SR |
| Product Name | DS2278-SR Handheld Barcode Scanner |
| Product Series | DS2200 |
| Brand Name | Zebra |
Miscellaneous
| Application/Usage | Light/Clean Manufacturing |
| Transportation | |
| Government | |
| Hospitality | |
| Retail | |
| Logistics | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP42 |
| SKU | DS2278-SR7U2100PRW |
| Barcode # | 4060533180224 |
| Brand | ZEBRA |
| Shipping Weight | 0.8000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.140m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.006118000m3 |
Manufacturer warranty: 36 Month Warranty
