Zebra LI3608-ER RUGD USB KIT SCAN SHIELDED USB HIGH CURR CAB - LI3608-ER3U4600ZVW
Model # LI3608-ER3U4600ZVW
-
SKU: LI3608-ER3U4600ZVW
- Pick Up Available
- Australian Warranty
- Checkout Securely

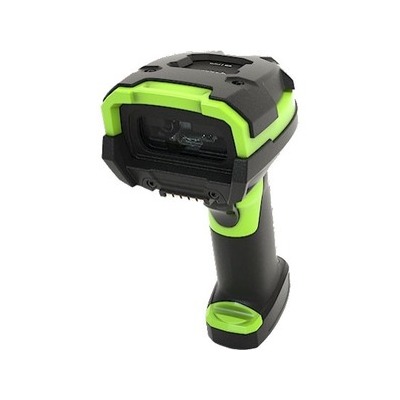

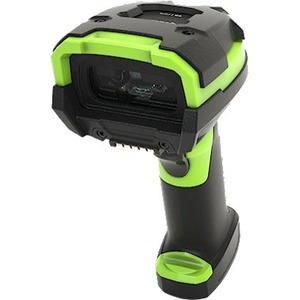

Zebra LI3608-ER Extended-Range 1D USB Barcode Scanner Kit
A corded industrial-green LI3608-ER handheld linear-imager kit with extended-range 1D scanning, USB host interface and shielded high-current USB cable wording.
Product overview
Corded extended-range 1D scanning for demanding environments
The Zebra LI3608-ER is a corded extended-range 1D imager for barcodes on screens or printed labels. The supplied reading range extends from 2 inches / 5.1 cm to 56 feet / 17.1 m.
The approved page lists an 8-foot / 2.4 m drop specification to concrete, operation after 5,000 tumbles and IP67 sealing. It also names 123Scan and Scanner Management Service for configuration, firmware and data-format management.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | LI3608-ER3U4600ZVW |
| Product model | LI3608-ER |
| Product series | 3600 |
| Product type | Corded handheld 1D barcode-scanner kit |
| Image sensor | Imager |
| Scanner range | Extended range |
| Supplied reading range | 2 in / 5.1 cm to 56 ft / 17.1 m |
| Host interface | USB |
| Additional interface wording | Keyboard Wedge; Multi-interface; Serial |
| Kit wording | Scanner with shielded high-current USB cable; cable part number not supplied |
| Ingress protection rating | IP67 |
| Drop specification | 8 ft / 2.4 m to concrete |
| Tumble specification | 5,000 tumbles |
| Approximate weight | 326 g |
| Dimensions | 185.4 × 76.2 × 132.1 mm (H × W × D) |
| Colour | Industrial Green |
| Shipping weight as supplied | 0.5300 kg |
Helpful answers
Frequently asked questions
What is the supplied scanning range?
The page states 2 inches / 5.1 cm to 56 feet / 17.1 m.
Is LI3608-ER corded?
Yes. Cable connectivity and a USB host interface are supplied.
What ruggedness details are listed?
The page states IP67 sealing, an 8-foot / 2.4 m drop specification and 5,000 tumbles.
Are the battery-statistics details applicable?
The page mixes LI3608 and cordless LI3678 family content; battery wording has not been applied to this corded SKU.
(LI3608-ER3U4600ZVW)
Miscellaneous
| Environmentally Friendly | Yes |
Interfaces/Ports
| Host Interface | USB |
| Keyboard Wedge | |
| Multi-interface | |
| Serial |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | LI3608-ER3U4600ZVW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | LI3608-ER |
| Product Name | LI3608-ER Handheld Barcode Scanner |
| Product Series | 3600 |
| Brand Name | Zebra |
Technical Information
| Barcode Symbology Supported |
1D: |
| Connectivity Technology | Cable |
| Scanner Range | Extended Range |
| Image Sensor Type | Imager |
| Scanning Capability | 1D |
Physical Characteristics
| Weight (Approximate) | 326 g |
| Form Factor | Handheld |
| Height | 185.4 mm |
| Width | 76.2 mm |
| Depth | 132.1 mm |
| Product Color | Industrial Green |
| SKU | LI3608-ER3U4600ZVW |
| Brand | ZEBRA |
| Shipping Weight | 0.5300kg |
| Shipping Width | 0.009m |
| Shipping Height | 0.021m |
| Shipping Length | 0.011m |
