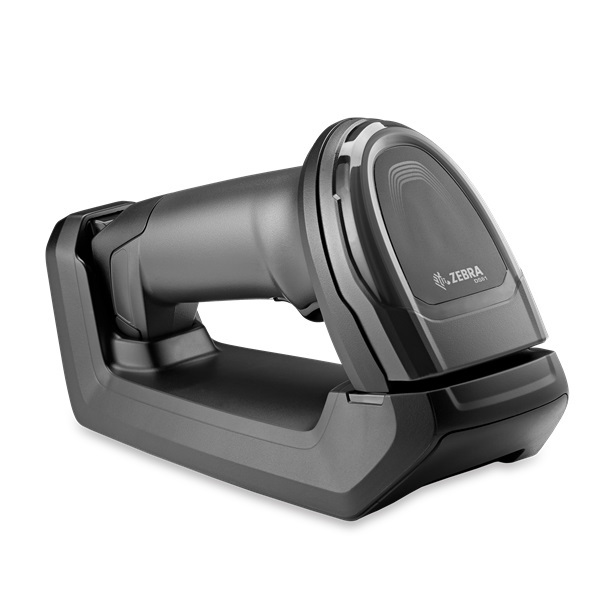

Zebra Barcode Scanner DS8178-SR Black FIPS Standard Cradle USB Kit
Model # DS8178-SR7U2100SFW
-
SKU: DS8178-SR7U2100SFW
Don't pay: $1,258.30
$1,135.00
SAVE $123.30 (10%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS8178-SR FIPS 1D/2D Bluetooth USB Kit with Standard Cradle
A Twilight Black cordless standard-range kit with scanner, shielded USB cable and standard cradle.
Product overview
Standard-range Bluetooth kit with detailed supplied specifications
The Zebra DS8178-SR7U2100SFW kit includes a DS8178-SR0F007ZZWW scanner, CBA-U21-S07ZBR shielded USB cable and CR8178-SC100F4WW standard cradle.
The approved specification block lists Bluetooth wireless connectivity, a 934.72 mm scanning-distance value, IP42 rating and a drop specification of 50 drops from 1.8 m to concrete.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS8178-SR7U2100SFW |
| Product model | DS8178-SR |
| Product series | DS8100 |
| Product type | Cordless standard-range barcode scanner kit |
| Scanner included | DS8178-SR0F007ZZWW |
| Cable included | CBA-U21-S07ZBR shielded USB cable |
| Cradle included | CR8178-SC100F4WW standard cradle |
| FIPS identification | Stated |
| Scanning capability | 1D and 2D |
| Barcode symbologies | 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar and Base 32 (Italian Pharma); 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin) and Postal Codes |
| Connectivity | Wireless |
| Bluetooth | Yes |
| Cable type included | USB |
| Scanning distance as supplied | 934.72 mm |
| Scanner range | Standard range |
| Scan pattern | Linear |
| Field of view | 42° horizontal; 28° vertical |
| Reading angles | 60° skew; 60° pitch; 360° roll |
| Maximum ambient light | 96,840 lux |
| Minimum print contrast | 16% |
| Drop specification | Designed for 50 drops from 1.8 m to concrete |
| Ingress protection rating | IP42 |
| Form factor | Handheld |
| Dimensions | 167.6 × 66 × 106.7 mm (H × W × D) |
| Approximate weight | 235.3 g |
| Colour | Twilight Black |
| Manufacturer warranty as supplied | 36 months |
| Shipping weight as supplied | 1.0800 kg |
Helpful answers
Frequently asked questions
What is included in this kit?
A DS8178-SR0F007ZZWW scanner, shielded USB cable and CR8178-SC100F4WW standard cradle are listed.
What scanning distance is supplied?
The approved specification block lists 934.72 mm.
What protection rating is stated?
IP42 is supplied.
What warranty is listed?
The page states a 36-month manufacturer warranty.
(DS8178-SR7U2100SFW)
Network & Communication
| Bluetooth | Yes |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Wireless |
| Scanning Distance | 934.72 mm |
| Scanner Range | Standard Range |
| Drop Specification | Designed to withstand 50 drops at 6.0 ft./1.8 m to concrete |
| Scan Pattern | Linear |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 96840 lux |
| Minimum Print Contrast | 16% |
| Minimum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Minimum Element Resolution (DataMatrix) | 0.19 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Minimum Element Resolution (PDF417) | 0.13 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
Physical Characteristics
| Weight (Approximate) | 235.3 g |
| Form Factor | Handheld |
| Height | 167.6 mm |
| Width | 66 mm |
| Depth | 106.7 mm |
| Product Color | Twilight Black |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS8178-SR7U2100SFW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS8178-SR |
| Product Name | DS8178-SR Barcode Scanner Kit |
| Product Series | DS8100 |
| Brand Name | Zebra |
Miscellaneous
| Application/Usage | Loyalty Program |
| Transportation | |
| Hospitality | |
| Logistics | |
| Government | |
| Retail | |
| Light/Clean Manufacturing | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP42 |
| SKU | DS8178-SR7U2100SFW |
| Barcode # | 8715946622439 |
| Brand | ZEBRA |
| Shipping Weight | 1.0800kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.170m |
| Shipping Length | 0.314m |
| Shipping Cubic | 0.014413000m3 |
Manufacturer warranty: 36 Month Warranty
