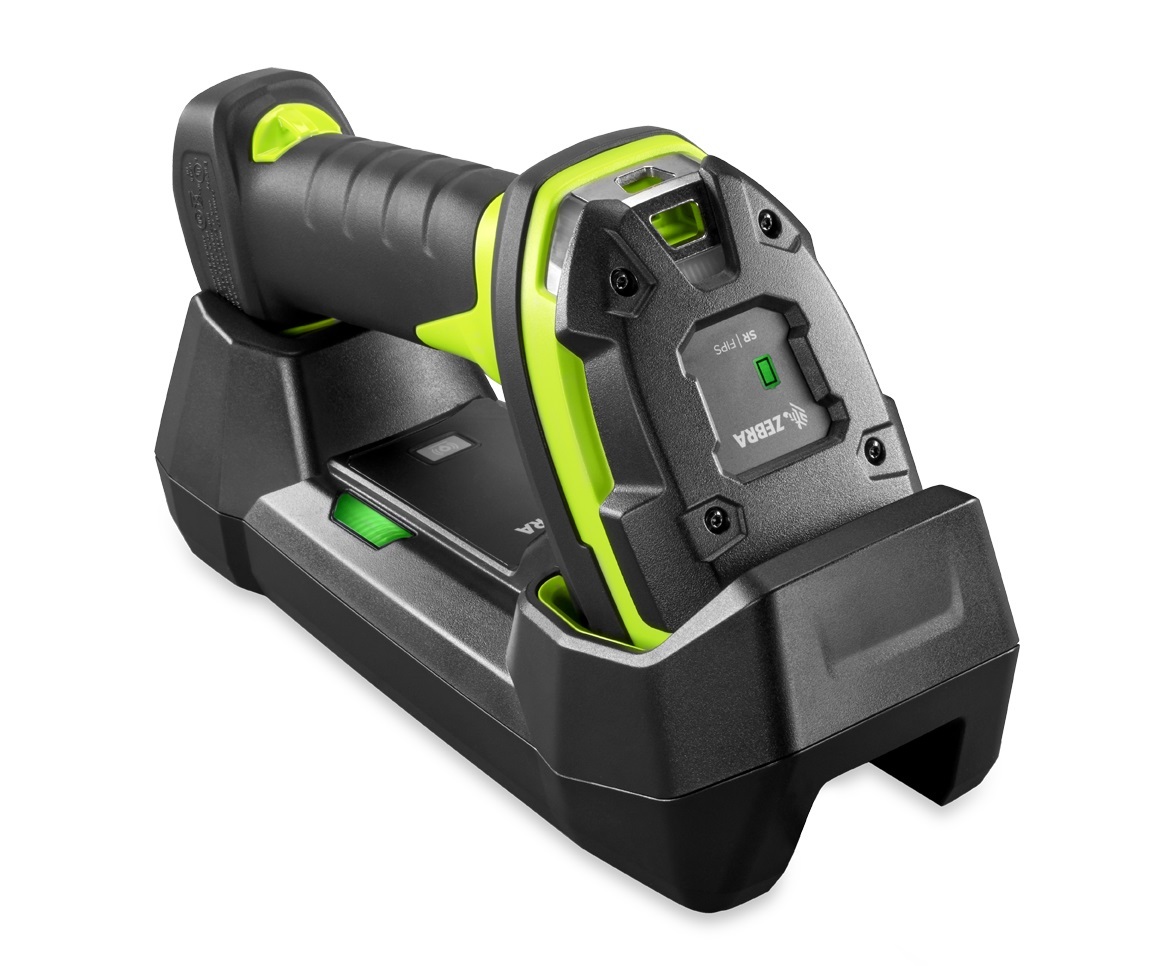

Zebra DS3678 Barcode Scanner Handheld With Cradle 2D USB Bluetooth
Model # DS3678-SR3U42A0SFW
-
SKU: DS3678-SR3U42A0SFW
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS3678-SR Cordless 1D/2D Standard-Range USB Cradle Kit
A cordless DS3678-SR kit with Bluetooth, USB, a standard cradle and power components for standard-range 1D/2D barcode capture.
Product overview
Cordless standard-range capture with a listed cradle kit
The Zebra DS3678-SR3U42A0SFW is identified as a cordless, Bluetooth-enabled standard-range 1D/2D handheld scanner kit with USB host connectivity.
The supplied kit list names the DS3678-SR0F003VZWW scanner, CBA-U42-S07PAR shielded USB cable, STB3678-C100F3WW cradle, PWR-BGA12V50W0WW power supply and CBL-DC-451A1-01 DC cable. A CAIEC power cable is referenced separately.
The approved page states capture up to 5 ft./1.5 m and simultaneous capture of up to 20 barcodes on one label. It also lists multiple 8 ft./2.4 m drops, IP67 for the scanner family and IP65 for the cradle family.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU | DS3678-SR3U42A0SFW |
| Product model | DS3678-SR |
| Scanner range | Standard range |
| Scanner listed | DS3678-SR0F003VZWW |
| USB cable listed | CBA-U42-S07PAR shielded USB cable |
| Cradle listed | STB3678-C100F3WW |
| Power supply listed | PWR-BGA12V50W0WW |
| DC cable listed | CBL-DC-451A1-01 |
| Host interface | USB |
| Bluetooth | Yes |
| Scanning capability | 1D and 2D |
| Marketing capture distance | Up to 5 ft. / 1.5 m |
| Specification-table scanning distance | 218.44 mm |
| Multi-code feature | Up to 20 barcodes on one label |
| Drop specification | Multiple 8 ft. / 2.4 m drops to concrete |
| Ingress protection | Scanner family IP67; cradle family IP65 |
| Colour | Black and Rugged Green are both supplied |
Helpful answers
Frequently asked questions
Is this a cordless Bluetooth kit?
Yes. Wireless connectivity and Bluetooth are stated.
What components are listed?
The scanner, shielded USB cable, cradle, power supply and DC cable are listed.
What capture distance is stated?
The marketing copy states up to 1.5 m, while the specification table lists 218.44 mm; the source conflict requires review.
What colour is supplied?
The page conflicts, calling the kit both black and Rugged Green.
(DS3678-SR3U42A0SFW)
Interfaces/Ports
| Host Interface | USB |
Network & Communication
| Bluetooth | Yes |
Power Description
| Power Supply Included | Yes |
Miscellaneous
| Additional Information |
USB Cable separate |
| Application/Usage | Industrial |
| Manufacturing | |
| Warehouse | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP67 |
| IP65 |
Technical Information
| Barcode Symbology Supported |
1D: 2D: Digimarc: IUID Support:
|
| Connectivity Technology | Wireless |
| Scanning Distance | 218.44 mm |
| Scanner Range | Standard Range |
| Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (DataMatrix) | 5.08 mm |
Physical Characteristics
| Weight (Approximate) | 408.2 g |
| Form Factor | Handheld |
| Height | 185.4 mm |
| Width | 76.2 mm |
| Depth | 142.2 mm |
| Product Color | Industrial Green |
| Rugged | Yes |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS3678-SR3U42A0SFW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS3678-SR |
| Product Name | DS3678-SR Barcode Scanner Kit |
| Product Series | 3600 |
| Brand Name | Zebra |
| SKU | DS3678-SR3U42A0SFW |
| Brand | ZEBRA |
| Shipping Weight | 1.8000kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.170m |
| Shipping Length | 0.305m |
| Shipping Cubic | 0.013481000m3 |
Manufacturer warranty: 36 Month Warranty
