Zebra FIXED MOUNT: SE4500 HD FOCUS SERIALUSB - DS457-HD20004ZZWW
Model # DS457-HD20004ZZWW
-
SKU: DS457-HD20004ZZWW
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS457-HD Fixed-Mount 1D/2D Imager Serial/USB

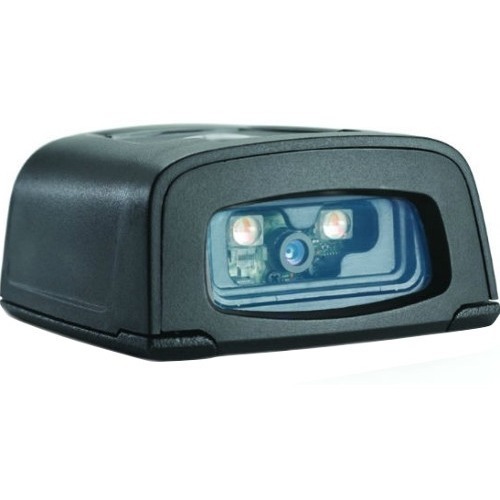

A compact black DS457-HD fixed-mount imager with Serial and USB host interfaces for 1D and 2D barcode capture.
Product overview
A compact DS457-HD imager with dual listed interfaces
The Zebra DS457-HD20004ZZWW is identified as a black DS457-HD fixed-mount barcode scanner with Serial and USB host interfaces.
The supplied page describes hands-free capture of 1D and 2D barcodes from paper, etched surfaces and mobile displays, with presentation or trigger-activated operation and omni-directional scanning.
The listed physical details are 58.4 mm long, 62 mm wide and 29.2 mm high, with an approximate weight of 110.6 g.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU | DS457-HD20004ZZWW |
| Product model | DS457-HD |
| Product type | Fixed-mount barcode scanner |
| Host interfaces | Serial and USB |
| Image sensor | Imager |
| Scanning capability | 1D and 2D |
| Barcode groups listed | All major 1D; PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode; listed postal codes |
| Approximate weight | 110.6 g |
| Dimensions | 58.4 mm L × 62 mm W × 29.2 mm H |
| Colour | Black |
| Shipping weight as supplied | 0.1500 kg |
Helpful answers
Frequently asked questions
Which interfaces are listed?
Serial and USB host interfaces are stated.
What scanning capability is listed?
The specification area states 1D and 2D scanning.
What are the supplied dimensions?
58.4 mm long, 62 mm wide and 29.2 mm high.
Why is some model copy excluded?
The page ends with DS457-SR wording even though this SKU is DS457-HD.
(DS457-HD20004ZZWW)
Interfaces/Ports
| Host Interface | Serial |
| USB |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | DS457-HD20004ZZWW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS457-HD |
| Product Name | DS457-HD Fixed Mount Barcode Scanner |
| Product Series | DS457 |
| Brand Name | Zebra |
Technical Information
| Barcode Symbology Supported |
1D: |
| Image Sensor Type | Imager |
| Scanning Capability | 1D |
| 2D |
Physical Characteristics
| Weight (Approximate) | 110.6 g |
| Form Factor | Fixed Mount |
| Length | 58.4 mm |
| Height | 29.2 mm |
| Width | 62 mm |
| Product Color | Black |
| SKU | DS457-HD20004ZZWW |
| Brand | ZEBRA |
| Shipping Weight | 0.1500kg |
