270 scans per second
The supplied CCD scanner specification lists a scan rate of 270 scans per second.
Datalogic HD3130 Barcode Scanner Handheld With Stand 1D USB - Black
Model # HD3130-BKK1B
-
SKU: HD3130-BKK1B
- Pick Up Available
- Australian Warranty
- Checkout Securely
Datalogic product

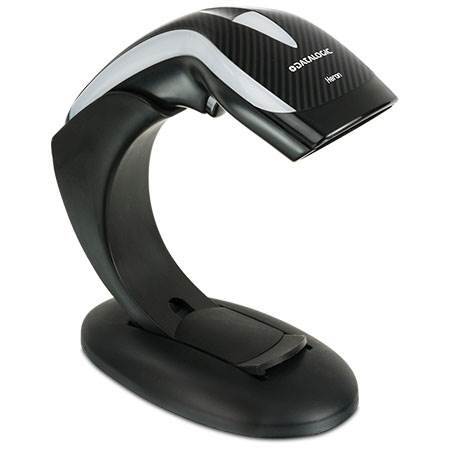

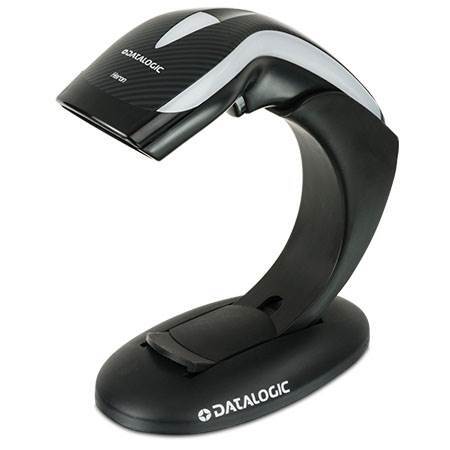

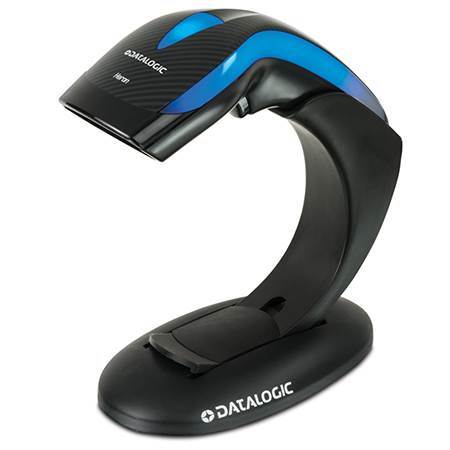

Datalogic Heron HD3130 1D USB Barcode Scanner Kit with Stand Black
A black corded 1D USB scanner kit with a stand, 270-scan-per-second CCD capture, Green Spot feedback, colour LEDs and polyphonic audio.
Handheld or hands-free
The included stand supports automatic switching between handheld and hands-free operation.
Rich operator feedback
Green Spot, multiple colour-changing LEDs and a polyphonic speaker support clear read confirmation.
Corded USB scanning
The Heron HD3130 uses USB host connectivity and a single-line scan pattern for standard 1D and supported stacked barcode formats.
Flexible working modes
The supplied stand enables presentation-style use while the handheld form remains available for scanning individual items.
Long reading reach
The source lists a scanning distance of up to 600 mm, subject to the barcode and operating conditions.
Protected retail design
The scanner is listed with IP40 protection, repeated 1.5-metre drop resistance and an approximate weight of 150 grams.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised Datalogic reseller. This product is supplied under the applicable Datalogic manufacturer warranty.
Frequently asked questions
What is included with HD3130-BKK1B?
The package list identifies the Heron HD3130 scanner, stand and USB cable.
How fast does it scan?
The supplied scan rate is 270 scans per second.
Can it operate hands-free?
Yes. The included stand supports the described hands-free mode.
Which barcode types does it read?
It supports standard 1D codes, GS1 DataBar linear codes and the listed stacked formats.
(HD3130-BKK1B)
Datalogic Heron HD3130 1D USB Barcode Scanner Kit with Stand Black features
Single-line CCD capture
Provides the stated 270-scan-per-second performance for supported 1D codes.
Stand-assisted workflow
Supports automatic switching between handheld and hands-free operation.
Customisable feedback
Combines Green Spot confirmation with colour LEDs and polyphonic audio.
Retail-ready durability
Carries IP40 protection and the listed repeated 1.5-metre drop specification.
The source lists a USB cable in the package but separately says it is supplied apart; confirm the cable arrangement before installation.
Datalogic Heron HD3130 1D USB Barcode Scanner Kit with Stand Black specifications
Product details
| SKU / manufacturer part number | HD3130-BKK1B |
|---|---|
| Product line / model | Datalogic Heron HD3100 / HD3130 |
| Product type | Corded handheld 1D barcode scanner kit |
| Package contents | Heron HD3130 scanner; stand; USB cable |
| Cable note | The package and cable fields list USB, while another source line says the cable is separate; confirm before deployment |
| Host interface | USB |
| Connectivity | Cable |
| Image sensor | CCD |
| Scanning capability | 1D |
| Scan pattern | Single line |
| Scan rate | 270 scans per second |
| Scanning distance | 600 mm |
| Maximum ambient light | 100000 lux |
| Minimum print contrast | 15% |
| Ingress protection | IP40 |
| Drop specification | Repeated drops from 1.5 m / 5.0 ft onto concrete |
| Approximate weight | 150 g |
| Dimensions | 152.4 × 68.6 × 152.4 mm (H × W × D) |
| Colour | Black |
Warranty
| Coverage | Applicable Datalogic manufacturer warranty |
|---|
| SKU | HD3130-BKK1B |
| Barcode # | 5712505336786 |
| Brand | DATALOGIC |
| Shipping Weight | 0.6700kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001100000m3 |
