Zebra FIXED MOUNT SE4500 SR FOCUS SERIALUSB - DS457-SR20004ZZWW
Model # DS457-SR20004ZZWW
-
SKU: DS457-SR20004ZZWW
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS457-SR Standard-Range Fixed-Mount 1D/2D Imager Serial/USB

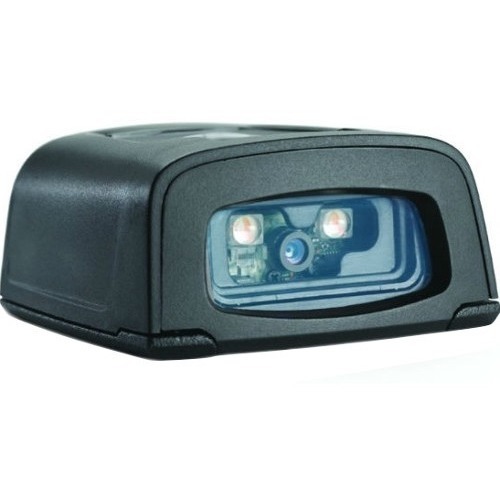

A compact black standard-range fixed-mount imager with Serial and USB interfaces, omni-directional capture and multiple supported image formats.
Product overview
Standard-range hands-free capture in a compact format
The Zebra DS457-SR20004ZZWW is identified as a standard-range fixed-mount imager with Serial and USB host interfaces.
The approved page states 1D and 2D barcode capture, omni-directional scanning, JPEG/TIFF/BMP image formats, IP54 protection and operation in presentation or trigger-activated mode.
The compact black scanner is listed at 58.4 mm long, 62 mm wide and 29.2 mm high, with an approximate weight of 110.6 g.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU | DS457-SR20004ZZWW |
| Product model | DS457-SR |
| Product type | Standard-range fixed-mount barcode scanner |
| Host interfaces | USB and Serial |
| Connectivity | Cable |
| Image sensor | Imager |
| Scanning capability | 1D and 2D |
| Scan pattern | Omni-directional |
| Image formats | JPEG, TIFF and BMP |
| Field of view | 40° horizontal; 26° vertical |
| Maximum ambient light | 96,900 lux |
| Minimum print contrast | 25% |
| Ingress protection | IP54 |
| Drop specification as supplied | Multiple 30 in. / 176 cm drops to concrete |
| Approximate weight | 110.6 g |
| Dimensions | 58.4 mm L × 62 mm W × 29.2 mm H |
| Colour | Black |
| Shipping weight as supplied | 0.1500 kg |
Helpful answers
Frequently asked questions
Is this the standard-range model?
Yes. The specification area identifies the product as DS457-SR and standard range.
Which interfaces are listed?
USB and Serial.
What image formats are stated?
JPEG, TIFF and BMP are listed.
Why is the drop measurement flagged?
The supplied 30 in. and 176 cm values are not equivalent and need confirmation.
(DS457-SR20004ZZWW)
Interfaces/Ports
| Host Interface | USB |
| Serial |
Technical Information
| Barcode Symbology Supported |
1D: |
| Connectivity Technology | Cable |
| Image Formats | JPEG |
| TIFF | |
| BMP | |
| Scanner Range | Standard Range |
| Drop Specification | Withstands multiple 30 in./176 cm drops to concrete |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 40° |
| Field of View (Vertical) | 26° |
| Maximum Ambient Light | 96900 lux |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 0.13 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Minimum Element Resolution (DataMatrix) | 0.19 mm |
| Maximum Element Resolution (DataMatrix) | 0.38 mm |
| Minimum Element Resolution (PDF417) | 0.17 mm |
| Maximum Element Resolution (PDF417) | 0.38 mm |
Miscellaneous
| Application/Usage | Industrial |
| Transportation | |
| Manufacturing | |
| Retail | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP54 |
Physical Characteristics
| Weight (Approximate) | 110.6 g |
| Form Factor | Fixed Mount |
| Length | 58.4 mm |
| Height | 29.2 mm |
| Width | 62 mm |
| Product Color | Black |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | DS457-SR20004ZZWW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS457-SR |
| Product Name | DS457-SR Fixed Mount Barcode Scanner |
| Product Series | DS457 |
| Brand Name | Zebra |
| SKU | DS457-SR20004ZZWW |
| Brand | ZEBRA |
| Shipping Weight | 0.1500kg |
