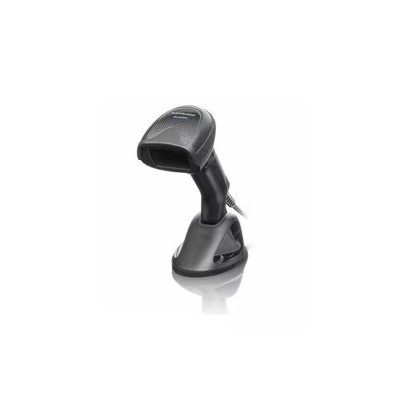

Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, Black (Kit includes Scanner, All in One Permanent Base and USB Cable 90A052258)

Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, Black (Kit includes Scanner, All in One Permanent Base and USB Cable 90A052258)

IMAGING TECHNOLOGY

The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

TOP TECHNOLOGIES FOR TODAY'S POS

Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.

Datalogic distinctive reading technology with highly visible white illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.

SIMPLE TO USE AND DEPLOY

The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking.

For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

(GD4520-BKK1B)

  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Perfect for applications that require direct association with a workstation or a notebook
Interfaces/Ports
Host Interface USB
Physical Characteristics
Weight (Approximate) 161 g
Durability Drop Resistant
Form Factor Handheld
Product Color Black
Color Family Black
General Information
Product Type Barcode Scanner Kit
Manufacturer Part Number GD4520-BKK1B
Manufacturer Website Address http://www.datalogic.com
Manufacturer Datalogic S.p.A
Product Model GD4520
Product Name Gryphon I GD4520 Barcode Scanner Kit
Product Line Gryphon I
Product Series GD4500
Brand Name Datalogic
Miscellaneous
Application/Usage Healthcare
  Laboratory
  Commercial Service
  Light/Clean Manufacturing
  Pharmacy
  Retail
  Transportation
Environmentally Friendly Yes
Ingress Protection (IP) Rating IP52
Technical Information
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes
Connectivity Technology Cable
Features Beep
  Ergonomic Design
  3GL
  Notification LED
  Grayscale Image Capture
Light Source Laser
Image Formats BMP
  JPEG
  TIFF
Drop Specification

Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

Scan Pattern Omni-directional
Image Sensor Type Imager
Illumination Type LED
Illumination Color White
Cable Type Included USB
Scanning Capability 2D
  1D
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 889 mm/s
Maximum Ambient Light 100000 lux
Minimum Print Contrast 15%
Air Electrostatic Discharge (+/-) 16kV
Image Sensor Resolution 1280 x 800
SKU GD4520-BKK1B
Brand DATALOGIC
Shipping Weight 0.3800kg
Shipping Width 0.110m
Shipping Height 0.080m
Shipping Length 0.225m
Shipping Cubic 0.001980000m3
