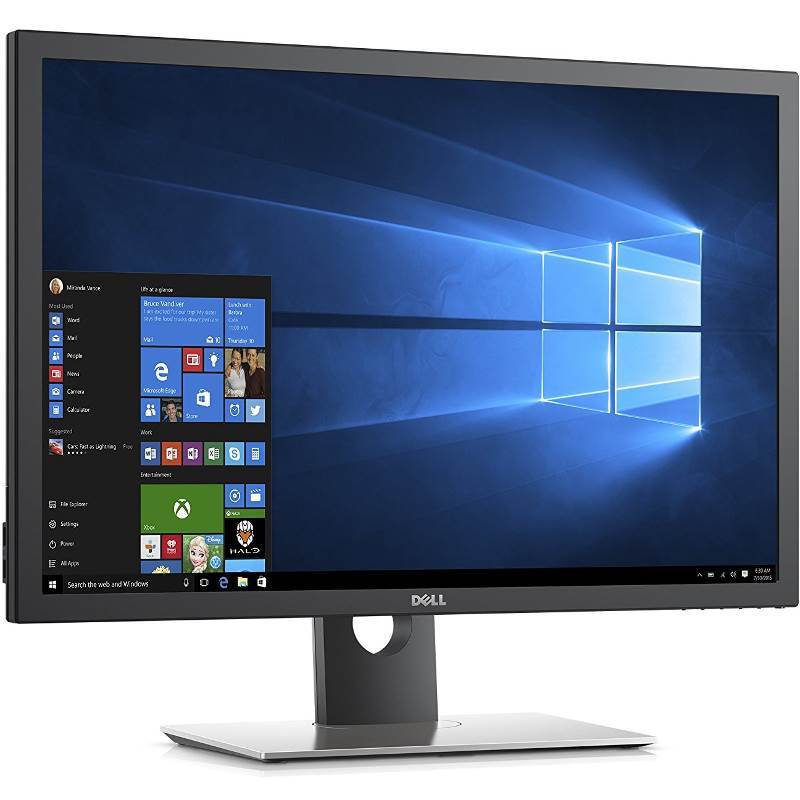

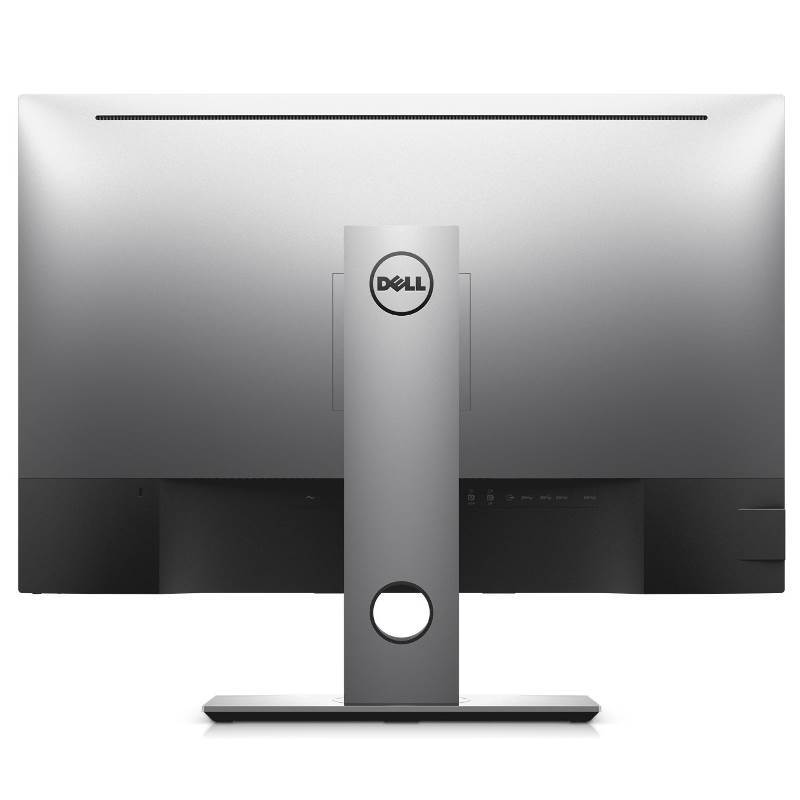

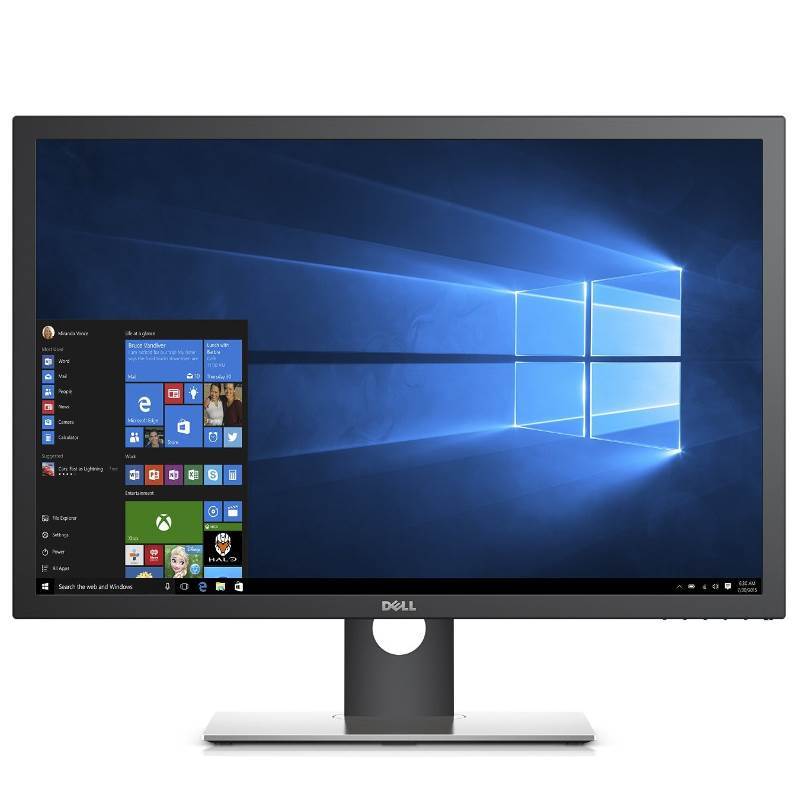

UP3017

(UP3017)

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Class

Class B

Energy Consumption per Year

120 kWh

Power Consumption (On mode)

38.4 W

Diagonal Size

30"

Viewable Size

30"

Built-in Devices

USB 3.0 hub

Panel Type

IPS

Aspect Ratio

16:10

Native Resolution

2560 x 1600 at 60 Hz

Pixel Pitch

0.251 mm

Pixel Per Inch

101

Brightness

350 cd/m²

Contrast Ratio

1000:1

Colour Support

1.07 billion colours

Response Time

8 ms (typical); 6 ms (fast)

Vertical Refresh Rate

50 - 86 Hz

Horizontal Refresh Rate

30 - 113 kHz

Horizontal Viewing Angle

178

Vertical Viewing Angle

178

Screen Coating

Anti-glare, 3H Hard Coating

Backlight Technology

WLED

OSD Languages

Chinese (simplified), Brazilian Portuguese, English, German, French, Russian, Spanish

Features

HDCP, PremierColor technology, 99% Adobe RGB colour gamut, 99% sRGB colour gamut, Flicker Free technology, daisy chain compatible, Energy Gauge, Premium Panel Guarantee, Mercury free, Color Calibration, arsenic-free glass, Dell ComfortView

Dimensions (WxDxH)

68.69 cm x 21.7 cm x 48.23 cm - with stand

Weight

9.59 kg

Connectivity

Interfaces

DisplayPort (HDCP)
Mini DisplayPort (HDCP)
2 x HDMI (HDCP)
DisplayPort output (MST)
2 x USB 3.0 upstream (Type B)
4 x USB 3.0 downstream (Type A)
Audio line-out

Mechanical

Display Position Adjustments

Height, pivot (rotation), swivel, tilt

Tilt Angle

-5/+21

Swivel Angle

Rotation Angle

180

Height Adjustment

150 mm

VESA Mounting Interface

100 x 100 mm

Miscellaneous

Features

Security lock slot (cable lock sold separately), integrated cable management, anti-theft protection, Dell Soundbar mounting slots

Cables Included

1 x SuperSpeed USB cable - 1.8 m
1 x Mini DisplayPort-DisplayPort cable - 1.8 m

Compliant Standards

Plug and Play, RoHS, BFR, TCO Displays, EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country

Security Slot Type

Kensington security slot

Power

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

54 Watt

Power Consumption Stand by

0.3 Watt

Power Consumption (Off Mode)

0.3 Watt

Software / System Requirements

Included Software

Drivers & Utilities

Dimensions & Weight

Dimensions & Weight Details

With stand - width: 68.69 cm - depth: 21.7 cm - height: 48.23 cm - weight: 9.59 kg
Without stand - width: 68.69 cm - depth: 5.8 cm - height: 44.71 cm - weight: 6.49 kg

Environmental Standards

ENERGY STAR Certified

Yes

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

35 °C

Humidity Range Operating

10 - 80% (non-condensing)

SKU	UP3017
Barcode #	5397063744879
Brand	DELL
Shipping Weight	14.0000kg
Shipping Width	0.530m
Shipping Height	0.190m
Shipping Length	0.780m
Shipping Cubic	0.078546000m3
