60 Million Line MCBF
The supplied specifications list a mean cycles between failure rating of 60 million lines and an MTBF of 360,000 hours.
EPSON TM-T82IV-812 USB Ethernet Serial Receipt Printer
Model# C31CL47812
-
SKU: C31CL47812
- Pick Up Available
- Australian Warranty
- Checkout Securely
Thermal Receipt Printer • Triple Interface
EPSON TM-T82IV-812 Thermal Receipt Printer
The EPSON TM-T82IV is a thermal receipt printer designed with speed, reliability, usability and functionality in mind. The TM-T82IV-812 configuration combines print speeds of up to 250 mm/sec with USB, Serial and Ethernet connectivity.
Configuration: C31CL47812 is the TM-T82IV-812 triple-interface model with USB + Serial + Ethernet connectivity.
What is the EPSON TM-T82IV-812?
The TM-T82IV-812 is a line thermal POS receipt printer with a maximum print speed of 250 mm/sec, USB, Serial and Ethernet interfaces, automatic paper-reduction functionality and a partial-cut auto cutter. It is supplied with accessories for setup and carries a two-year return-to-base warranty.
250 mm/sec Maximum receipt print speed
3 Interfaces USB, Serial and Ethernet connectivity
2.0 Million Rated auto-cutter life
2 Years Standard return-to-base warranty
Fast Thermal Receipt Printing
Designed for quick POS receipt output with text, graphics and barcode support.
The TM-T82IV prints text and graphics on receipts at speeds of up to 250 mm/sec. It supports clear printing of logos, coupons and barcodes and provides a print resolution of 203 x 203 dpi.
Epson positions the TM-T82IV for retailers with a low volume of POS transactions that still require fast printing and enhanced reliability.
Reliability and Paper Efficiency
Long-life components and paper-saving functionality support day-to-day receipt printing.
2 Million Auto-Cutter Cuts
The partial-cut auto cutter is rated for a life of 2.0 million cuts.
Paper Saving Function
Paper-saving options can reduce paper usage by up to 30%, while an automatic paper-reduction function is also included.

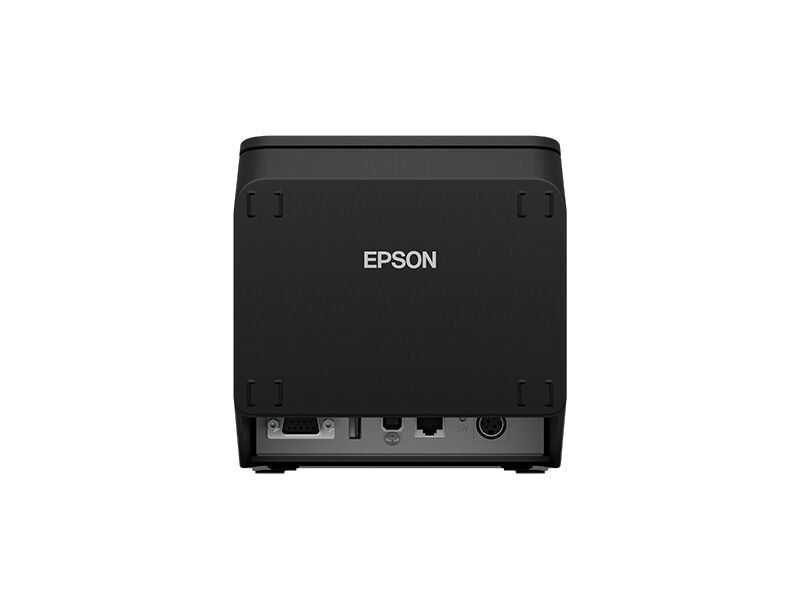

USB, Serial and Ethernet Connectivity
The C31CL47812 configuration is the triple-interface version of the TM-T82IV.
The TM-T82IV series is available in USB/Serial and USB/Serial/Ethernet configurations. This C31CL47812 TM-T82IV-812 model is the USB + Serial + Ethernet version.
The supplied specifications also list operating system support for Windows, MacOSX, iOS, Android and Linux.
Easy Operation and Installation
Practical handling features are designed to simplify setup and maintenance.

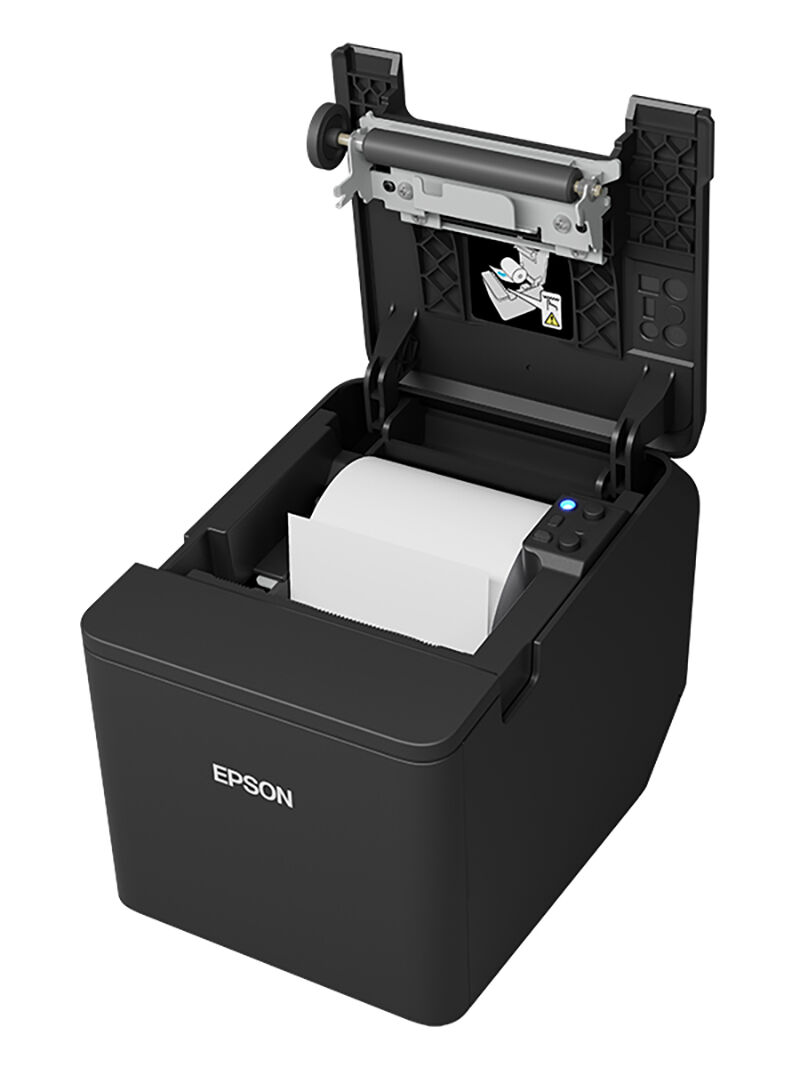

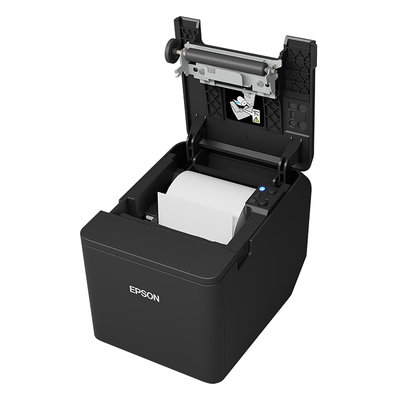

Drop-In Paper Loading
Ease-of-use features include drop-in paper loading, a partial-cut auto cutter and status LEDs.
Flexible Installation
The printer supports horizontal, vertical and wall-mounted installation.
All-in-One Box
Accessories for quick setup are supplied in the box, including the AC adapter, AC cable, USB cable, wall-mounting components and 58mm paper guide plate.
Software Development Support
Software Development Kits are available for POS printer application development.
Epson states that Software Development Kits are available for the creation of POS printer applications for iOS and Android devices.
Frequently Asked Questions
Quick answers about the EPSON TM-T82IV-812 C31CL47812.
Which interfaces are included on C31CL47812?
C31CL47812 is the TM-T82IV-812 triple-interface model with USB, Serial and Ethernet connectivity.
How fast does the EPSON TM-T82IV print?
The supplied specifications list a maximum print speed of 250 mm/sec.
What print resolution does the TM-T82IV provide?
The printer has a dot density of 203 dpi x 203 dpi.
Which paper widths are supported?
The specifications provide support for 79.5 ± 0.5mm paper in the 80mm configuration and 57.5 ± 0.5mm paper in the 58mm configuration.
Does the TM-T82IV have an automatic cutter?
Yes. It uses a partial-cut auto cutter rated for 2.0 million cuts.
Can the TM-T82IV reduce paper usage?
Yes. The supplied product information states that its paper-saving options can reduce paper usage by up to 30%.
What warranty is supplied with the TM-T82IV?
The supplied information states a two-year standard return-to-base warranty.
(C31CL47812)
EPSON TM-T82IV-812 Specifications
Technical specifications for C31CL47812, including printing, paper handling, reliability, interfaces, power, physical details and supplied accessories.
| Specification | Details |
|---|---|
| Product Details | |
| Product Name | TM-T82IV |
| Ordering Code | C31CL47812 |
| Configuration | TM-T82IV-812 USB + Serial + Ethernet (Triple Interface) |
| Printer | |
| Print Method | Line Thermal |
| Dot Density | 203 dpi x 203 dpi |
| Print Speed | Max. 250mm/s |
| Print Width - 80mm Paper | 72±0.5mm |
| Print Width - 58mm Paper | 52.5±0.5mm |
| Fonts | 12x24 (Font A), 9x17 (Font B) |
| Column Capacity - 80mm Paper | 48 (Font A), 64 (Font B) |
| Column Capacity - 58mm Paper | 35 (Font A), 46 (Font B) |
| Character Size | 1.25x3 mm (Font A), 0.88x2.13 mm (Font B) |
| Character Set | Alphanumeric 95, International character 18 set, Graphics 128x43 page including user-defined page |
| Characters | ANK, Simplified Chinese |
| Barcode Support | UPC-A, UPC-E, JAN8/EAN 8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR(NW-7), GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded |
| 2-Dimensional Symbols | PDF417, QR code, Maxi Code, Datamatrix, Aztec, Two-dimensional GS1 DataBar, Composite Symbology |
| Paper Specification | |
| Paper Size - 80mm | 79.5 ± 0.5mm |
| Paper Size - 58mm | 57.5 ± 0.5mm |
| Diameter | 83mm |
| Paper Thickness | 48-80 μm |
| Auto Cutter | Partial cut (cutting with one point in left edge left uncut) |
| Sensors | Roll paper end / Roll paper near-end / Cover open |
| Reliability | |
| MCBF | 60 million lines |
| MTBF | 360,000 hours |
| Auto Cutter Life | 2.0 million cuts |
| Head Life | 150km, 15 million lines |
| Interfaces and Power | |
| Interfaces | USB 2.0 + RS-232C; USB 2.0 (capped) + Serial; USB 2.0 + Serial + Ethernet |
| D.K.D. Functions | 2 drivers |
| AC Adapter | AC adapter C1 |
| Power Source | DC 24V±5% |
| Power Consumption | Approx 0.80W (Stand-by) Approx 29.5W (Operating) |
| Environmental | |
| Temperature | Operation 5-45℃ / Storage -10-50℃ |
| Humidity | Operation 10-90% / Storage 10-90% |
| Noise Level | Approx. 55 dB (bystander position) |
| Physical | |
| Overall Dimensions | 140mm (W) x 199mm (D) x 146mm (H) |
| Weight | 1.7Kg |
| Colour | EBCK |
| Installation | Horizontally / Vertically / Wall-mounted |
| Buzzer | Unsupported |
| Software and Data | |
| Operating Systems | Windows, MacOSX, iOS, Android, Linux |
| Data Buffer | Selectable as 45 bytes or 4 KB |
| What's in the Box | |
| Included Items | Roll paper, User's manual, AC adapter, AC cable, USB cable, Wall hanging bracket, Screws for wall hanging bracket, 58mm-width paper guide plate, Power switch cover, Power switch waterproof cover, Rubber feet for vertical installation |
| Options / Accessories | |
| Optional Accessories | External buzzer OT-BZ20, Wi-Fi dongle OT-WL06 |
| Ordering Information | |
| C31CL47811 | TM-T82IV-811 USB + Serial |
| C31CL47812 | TM-T82IV-812 USB + Serial + Ethernet (Triple Interface) |
| Warranty | |
| Standard Warranty | 2 year return to base warranty |
Reliability note: Epson's statements about reliability levels are estimates based on normal use of the printer using tested media only. These reliability statements are not warranties of the media or Epson printers.
Epson products are designed and manufactured to be highly reliable and last a long time when used according to their specifications. Where a system, product or device is used in situations where human life may be involved or at risk, Epson advises taking necessary steps to ensure suitability and recommends fail-safe procedures, redundancy support or backup equipment to maintain safety and system reliability.
Do not interfere with electrical components within the device, use supplied items for purposes other than intended, make modifications to the product, or use third-party consumables. Consult Epson if you have questions or concerns.
Specifications are subject to change without notice.
