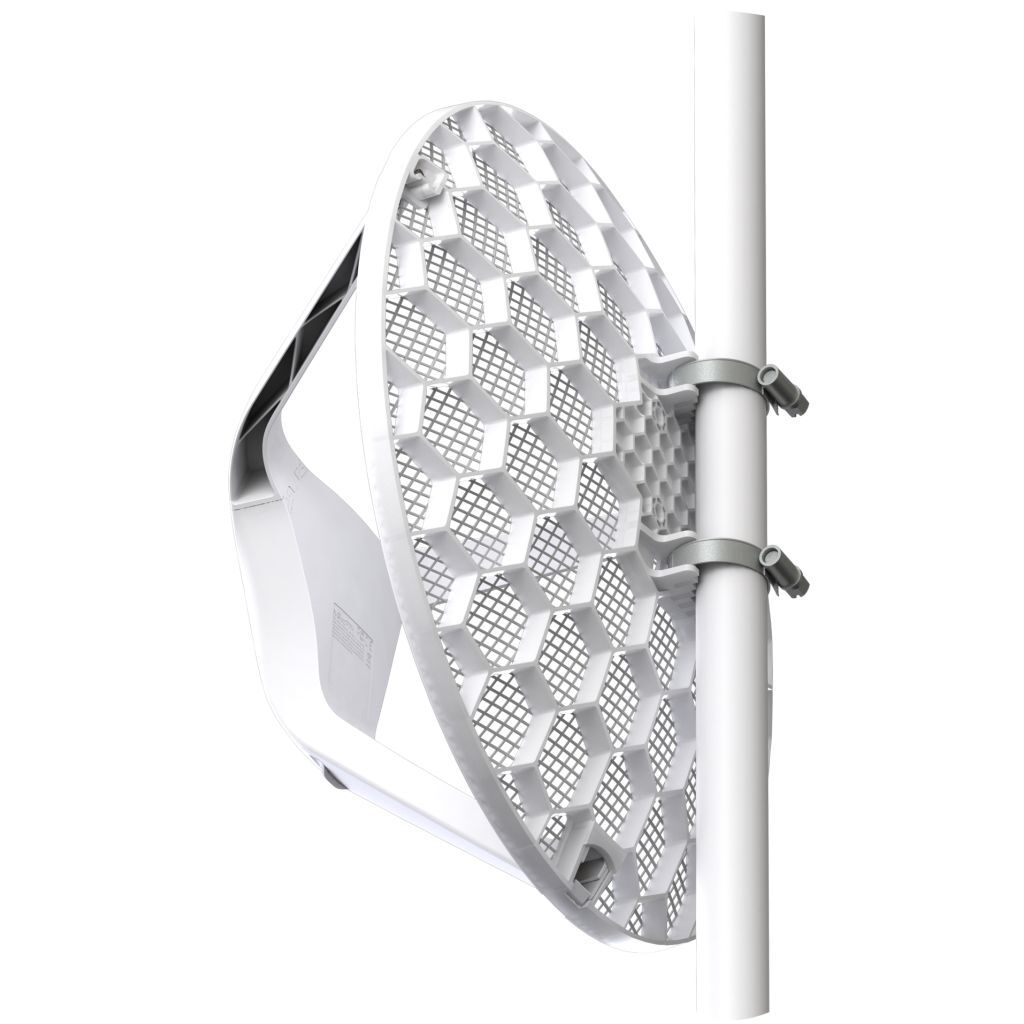

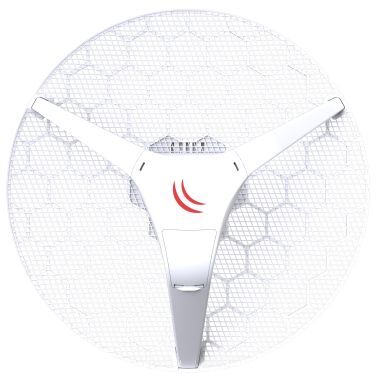

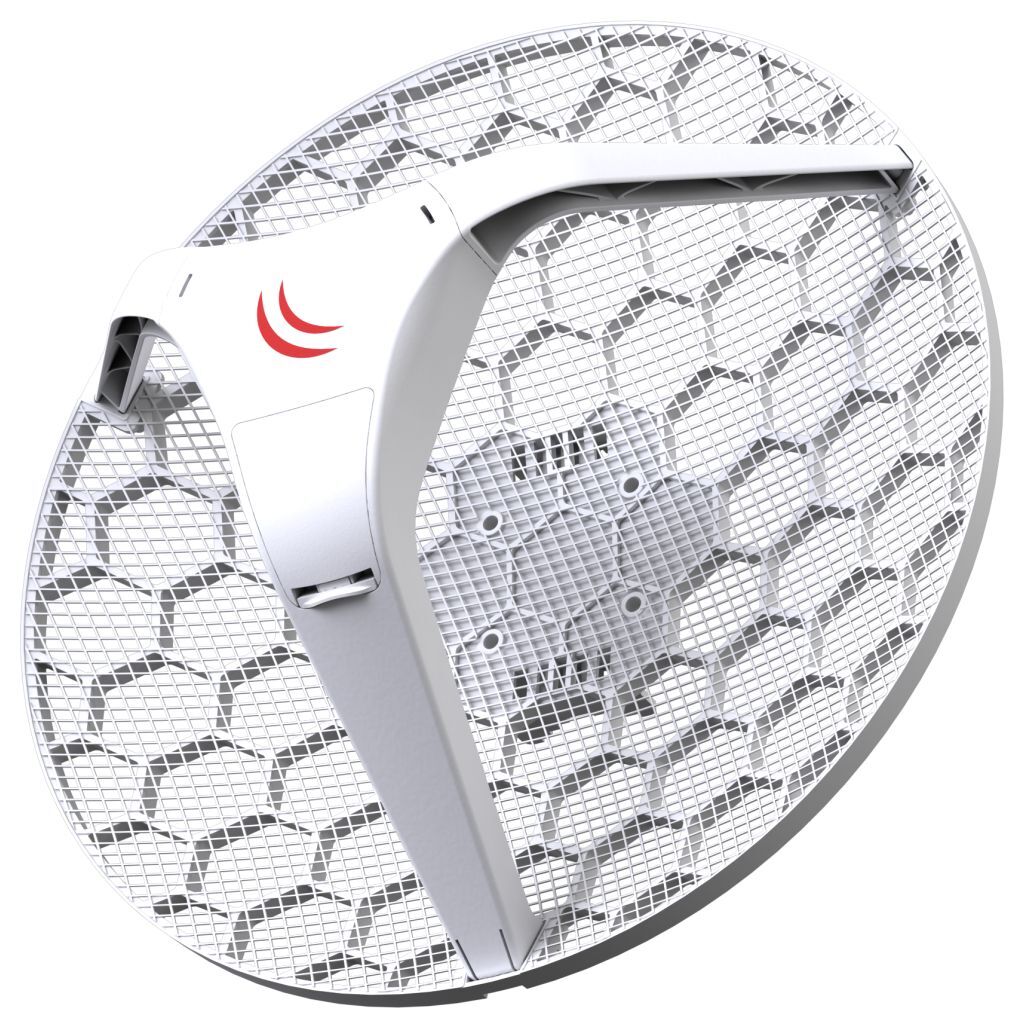

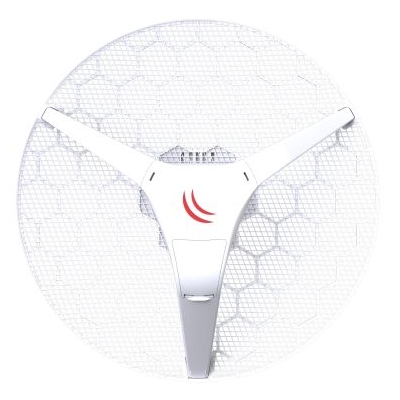

Innovative lightweight dish antenna with integrated 2.4GHz 802.11n radio NOTICE - END OF LIFE PRODUCT!!! Product remains available only while current and expected arriving stocks last. The Light Head Grid (LHG) is a compact and light 2GHz 802.11 b/g/n wireless device with an integrated dual polarization 18 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol. The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. PDF Brochure Quick Guide
(RBLHG-2nD)
| Specifications |
| Product code | RBLHG-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | Ø 391 x 222 mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Ethernet |
| 10/100 Ethernet ports | 1 |
| Certification & Approvals |
| Certification | CE, FCC, IC, EAC, ROHS |
| Wireless specifications |
| 2.4 GHz TX/RX | | 2.4 GHz | Transmit (dBm) | Receive Sensitivity | | 1MBit/s | 26 | -100 | | 11MBit/s | 26 | -93 | | 6MBit/s | 28 | -94 | | 54MBit/s | 24 | -78 | | MCS0 | 28 | -94 | | MCS7 | 23 | -75 | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 18 |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| SKU |
RBLHG-2nD |
| Brand |
MIKROTIK |
| Shipping Weight |
3.3000kg |
