Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure – the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 – all without breaking the budget.

The 802.11ax standard brings crucial improvements for long-distance wireless links – including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today – and be ready too!

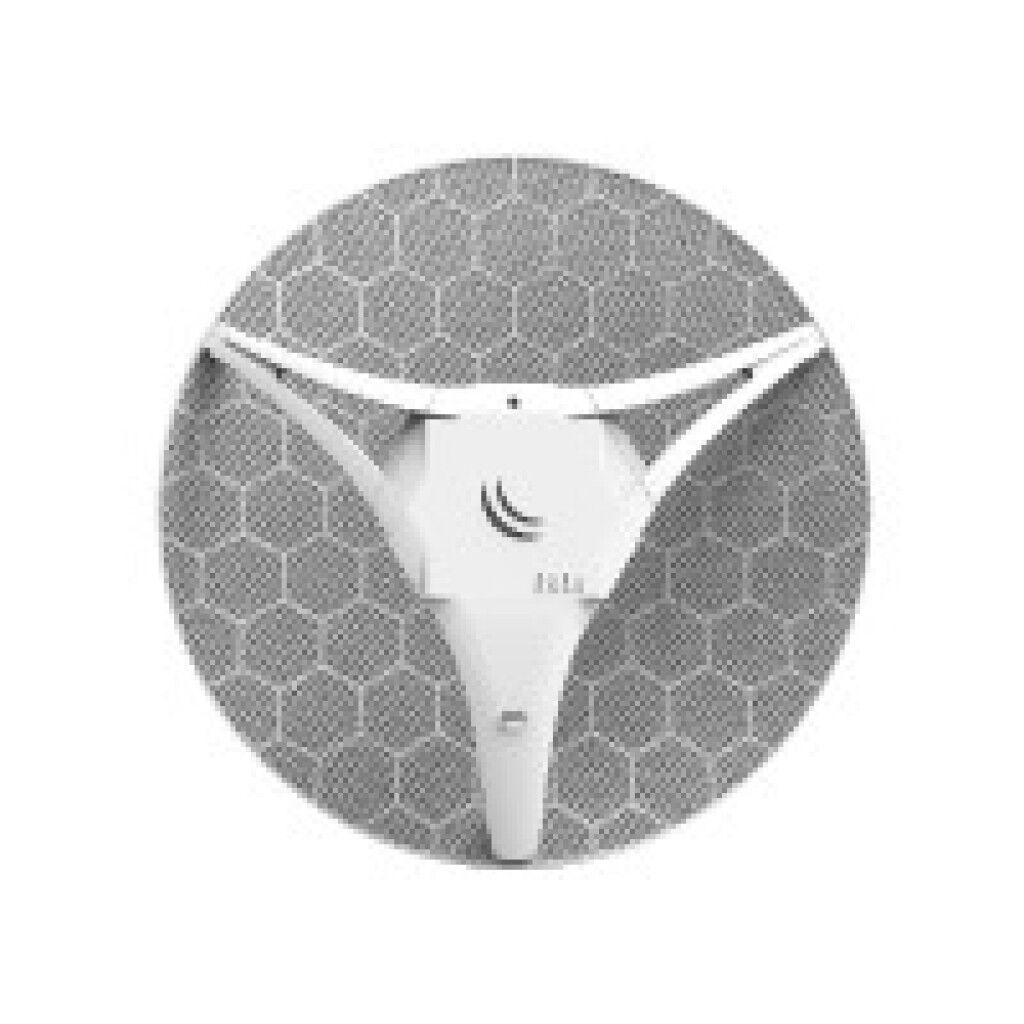

LHG XL 5 ax is an extra large long-range CPE with a 27 dBi antenna. Perfect for links up to 30 km in ideal conditions. Check related devices below for the regular version if you're working at a closer range!

 Send purchase questions

Specifications

Details
Product code LHG-5axD-XL
Architecture ARM 32bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 3
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $119.00

Powering

Details

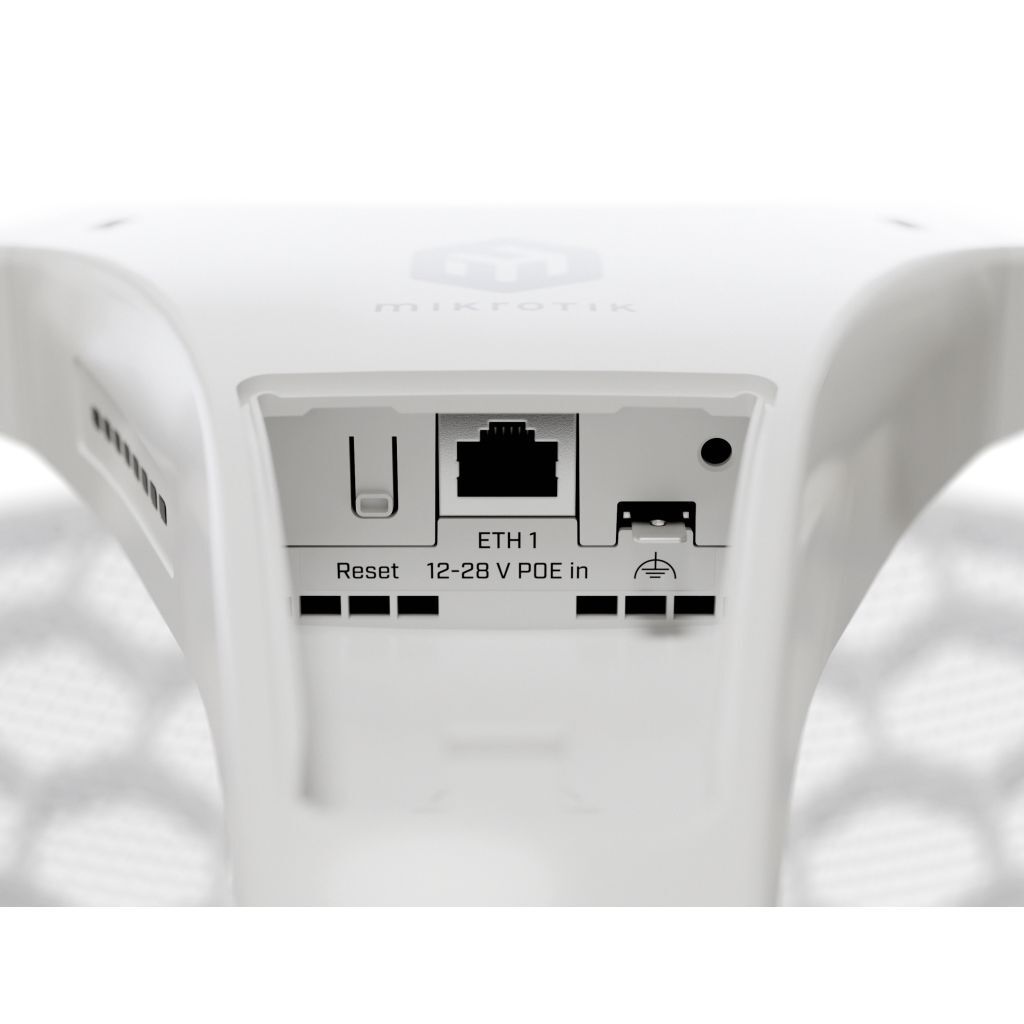

Number of DC inputs 1 (PoE-IN)
Max power consumption 5 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 12-28 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 27
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
CPU temperature monitor Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 54

Wireless specifications

5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s24-96
54MBit/s21-80
MCS024-96
MCS720-75
MCS919-70
MCS1117-67

Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..


Related products

(LHG-5axD-XL)

Specifications
Product code LHG-5axD-XL
Architecture ARM 64bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 3
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 1 (PoE-IN)
Max power consumption 5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-28 V
Ethernet
10/100/1000 Ethernet ports 1
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 54
Other
CPU temperature monitor Yes
Wireless specifications
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 27
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6
SKU LHG-5axD-XL
Brand MIKROTIK
Shipping Weight 3.3000kg
