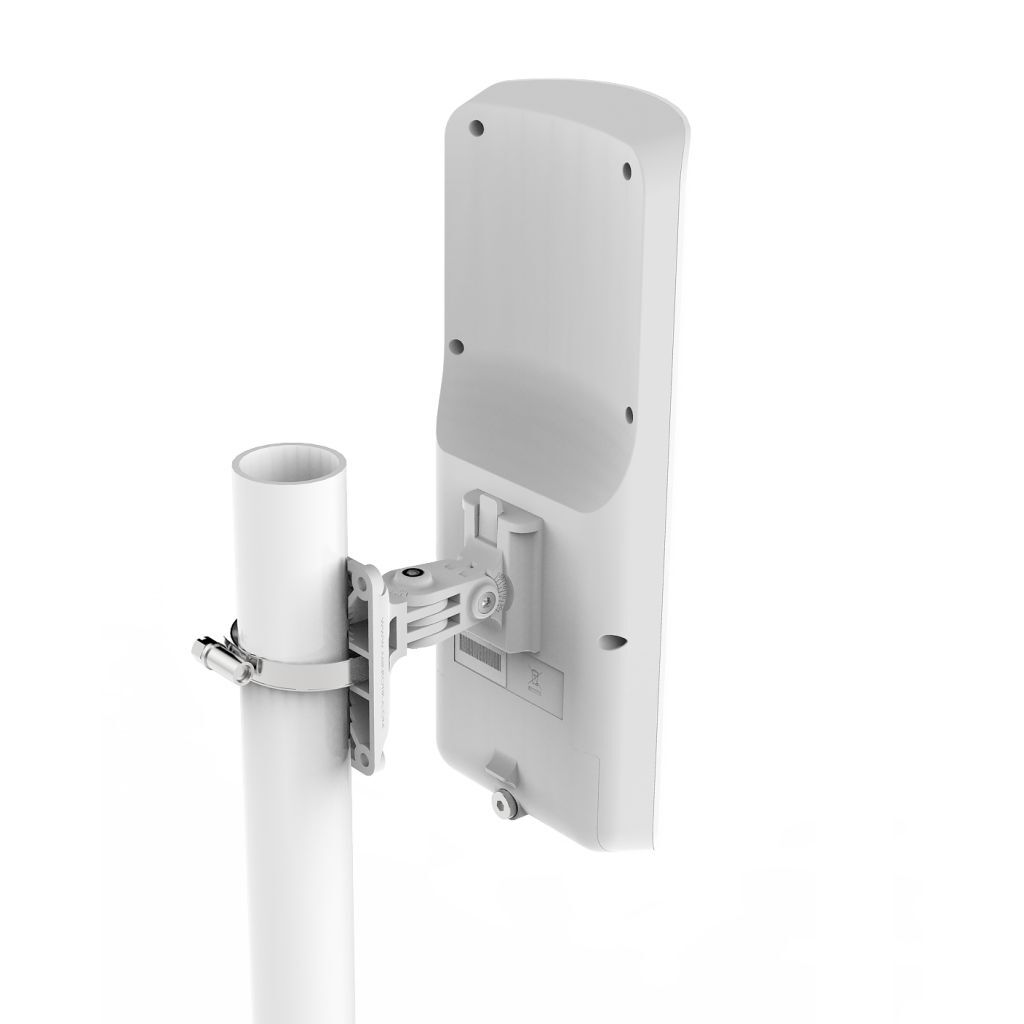

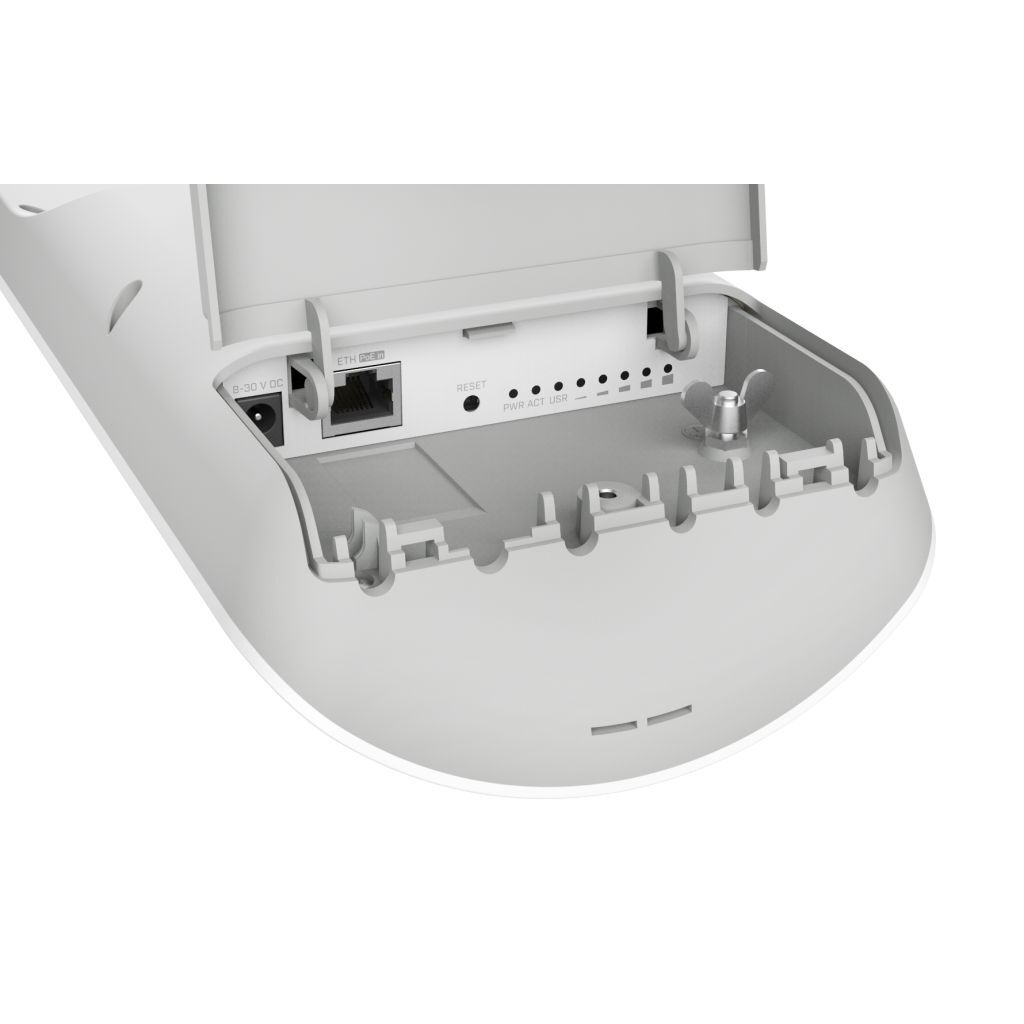

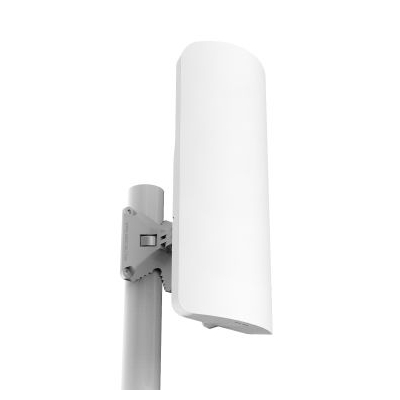

2GHz "mANTBox" base station with integrated 120 degree sector antenna - ready to go! mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz. The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.
(RB911G-2HPnD-12S)
| Specifications |
| Product code | RB911G-2HPnD-12S |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 140 x 348 x 82 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 11 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Ethernet |
| 10/100/1000 Ethernet ports | 1 |
| Certification & Approvals |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| Other |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Wireless specifications |
| 2.4 GHz TX/RX | | 2.4 GHz | Transmit (dBm) | Receive Sensitivity | | 1MBit/s | 30 | -100 | | 11MBit/s | 30 | -94 | | 6MBit/s | 30 | -96 | | 54MBit/s | 27 | -78 | | MCS0 | 30 | -96 | | MCS7 | 24 | -73 | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 12 |
| Wireless 2.4 GHz chip model | AR9342 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| SKU |
RB911G-2HPnD-12S |
| Brand |
MIKROTIK |
| Shipping Weight |
3.3000kg |
