Mikrotik RB921GS-5HPacD-19S 5GHz mANTBox 19dBi Sector 802.11ac
Model # RB921GS-5HPacD-19S
-
SKU: RB921GS-5HPacD-19S
- Pick Up Available
- Australian Warranty
- Checkout Securely

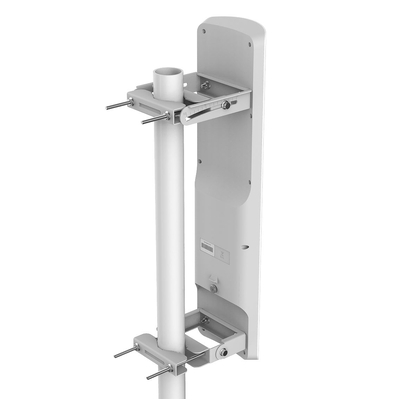

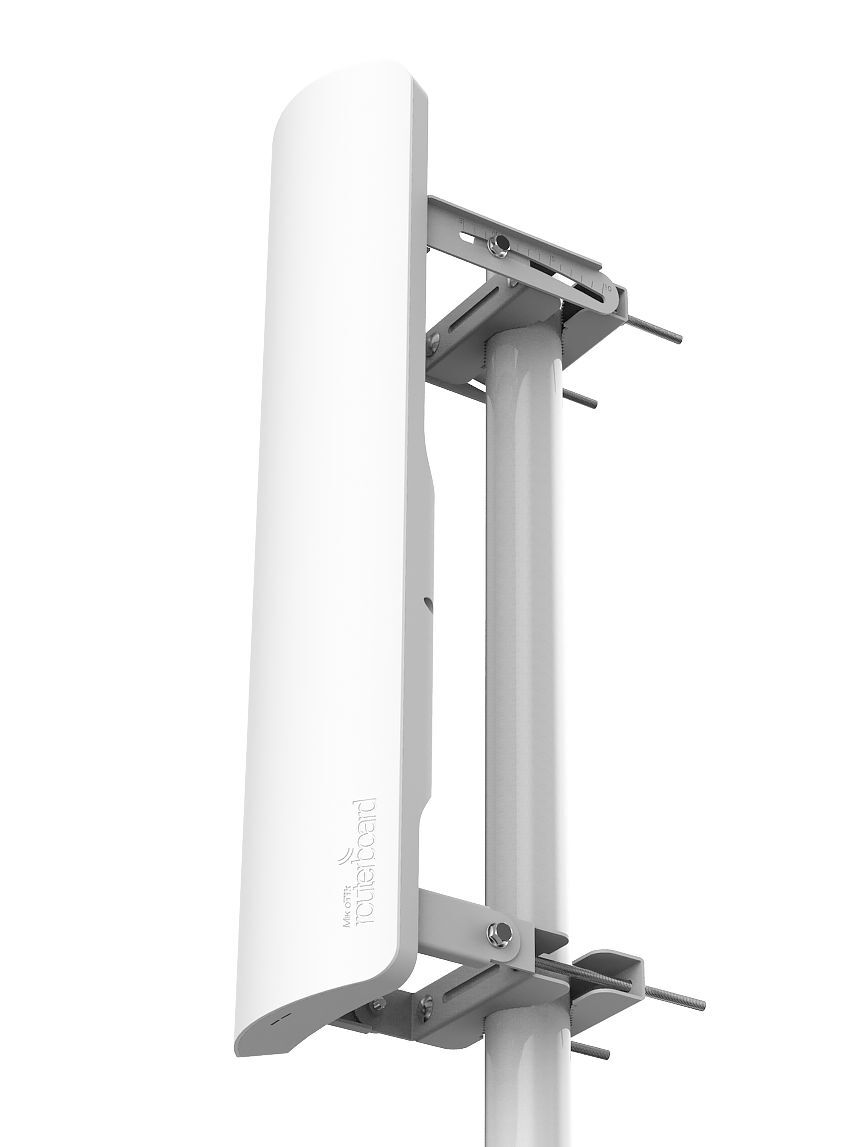

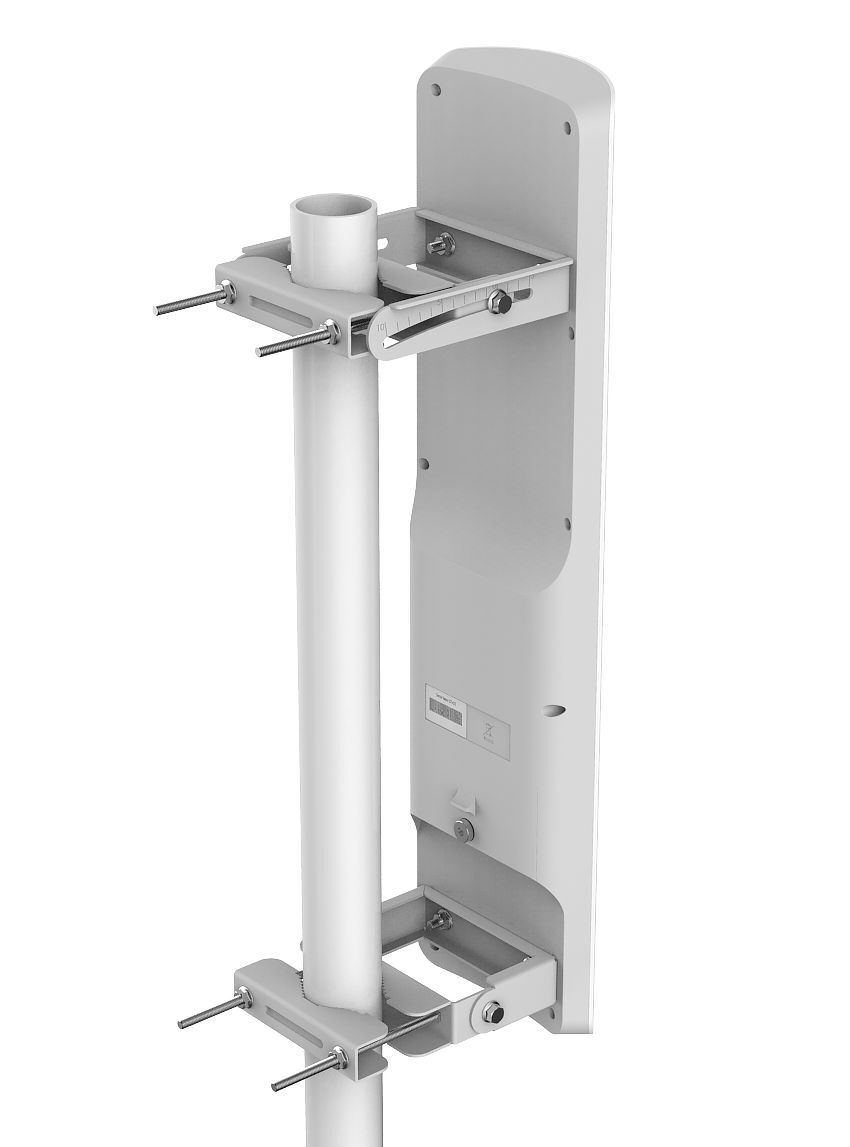

Mikrotik RB921GS-5HPacD-19S 5GHz mANTBox 19dBi Sector 802.11ac
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.
mANTBox 19s comes with 19dBi 120 degree sector antenna.
We have two versions available - RB921GS-5HPacD-19S (International) and RB921GS-5HPacD-19S-US (USA). RB921GS-5HPacD-19S-US (USA) is factory locked for 5.17 - 5.25 GHz and 5.725 - 5.835 GHz frequencies. This lock can not be removed. RB921GS-5HPacD-19S (International) supports 5.17 - 5.835 GHz range (Specific frequency range can be limited by country regulations).
(RB921GS-5HPacD-19S)
| Details | |
|---|---|
| Product code | RB921GS-5HPacD-19S |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 152 x 598 x 78 mm |
| RouterOS license | 4 |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|

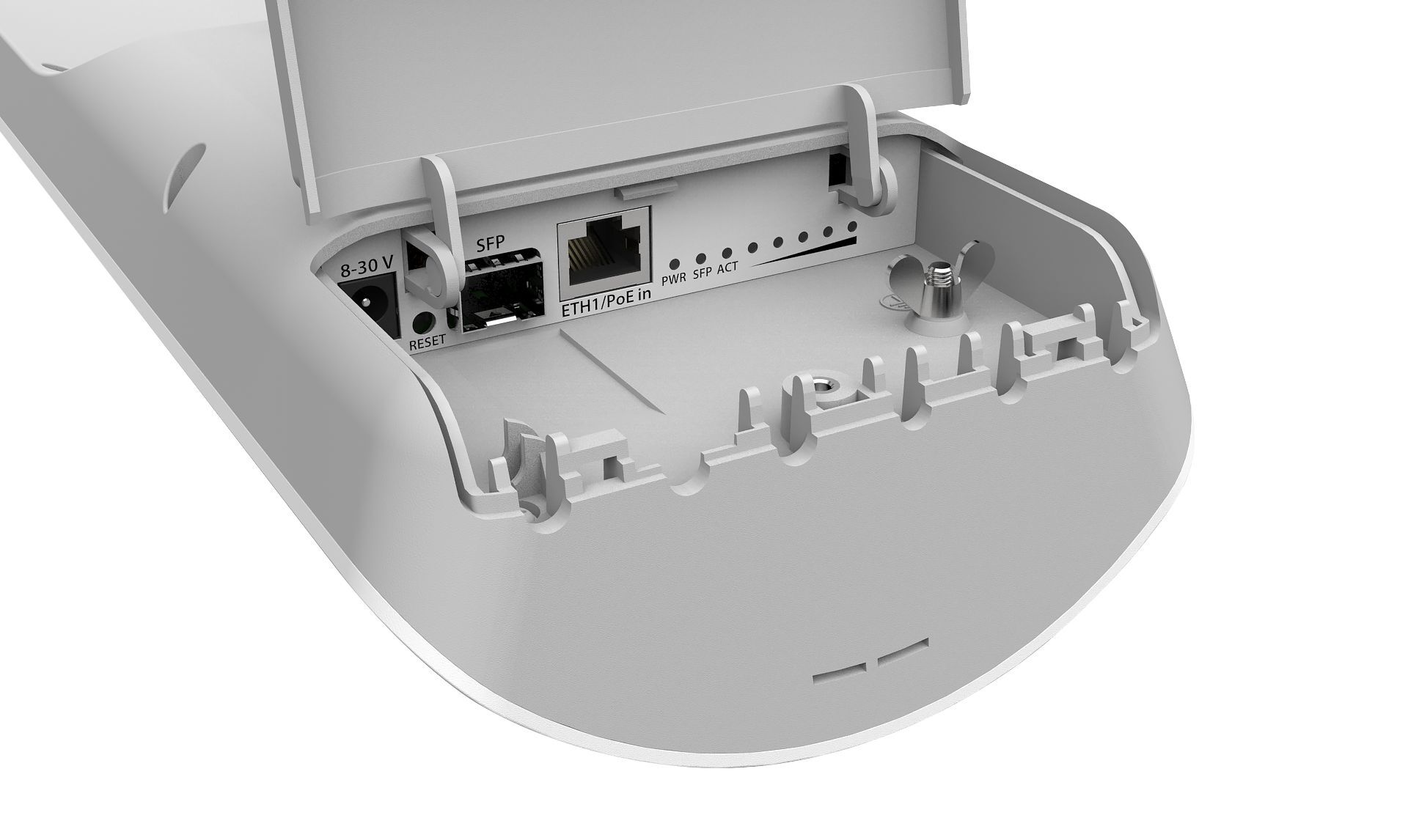

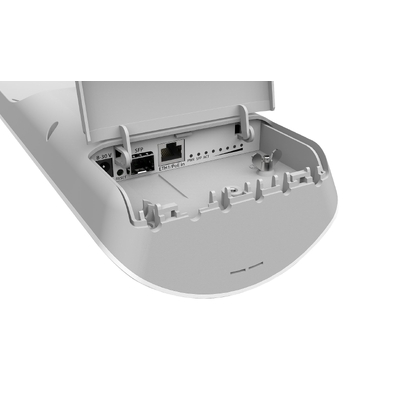

| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 13 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-28 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 19 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
| SKU | RB921GS-5HPacD-19S |
| Brand | MIKROTIK |
| Shipping Weight | 1.0000kg |
