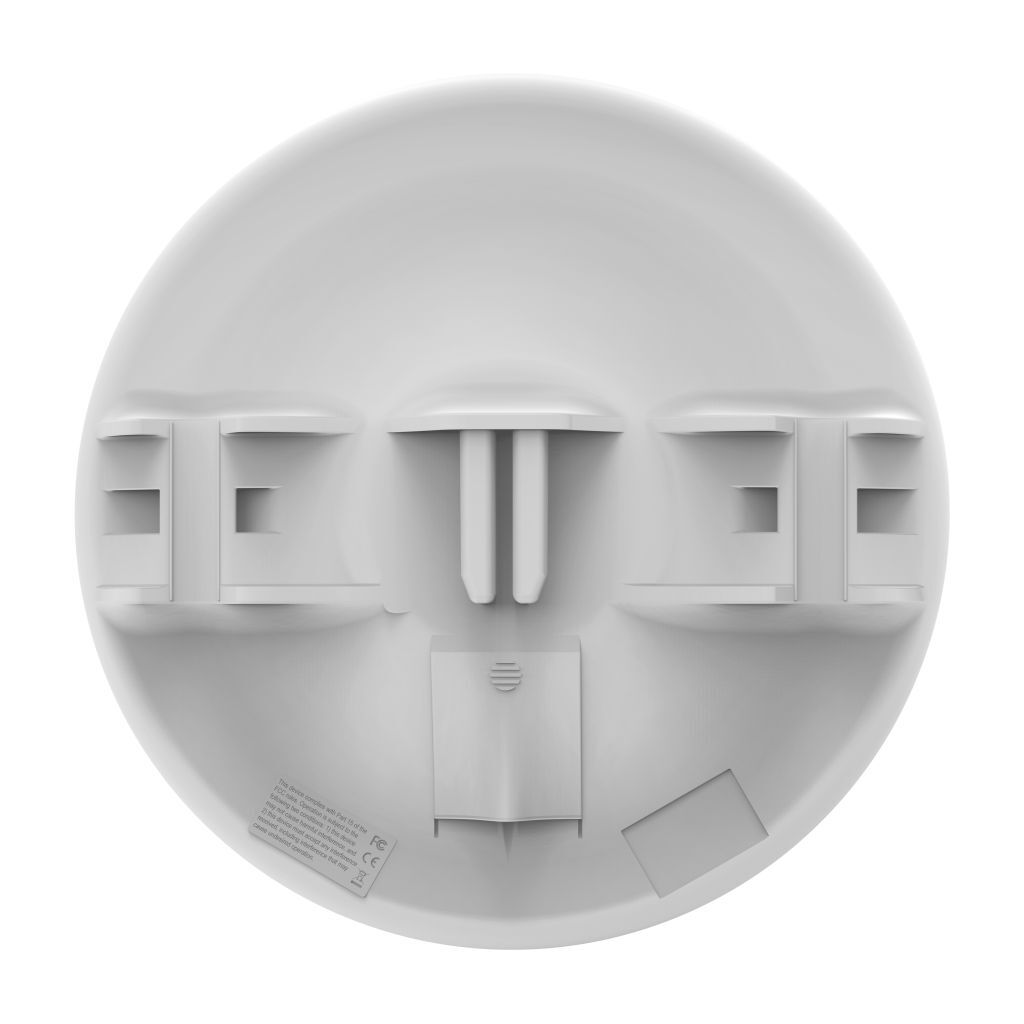

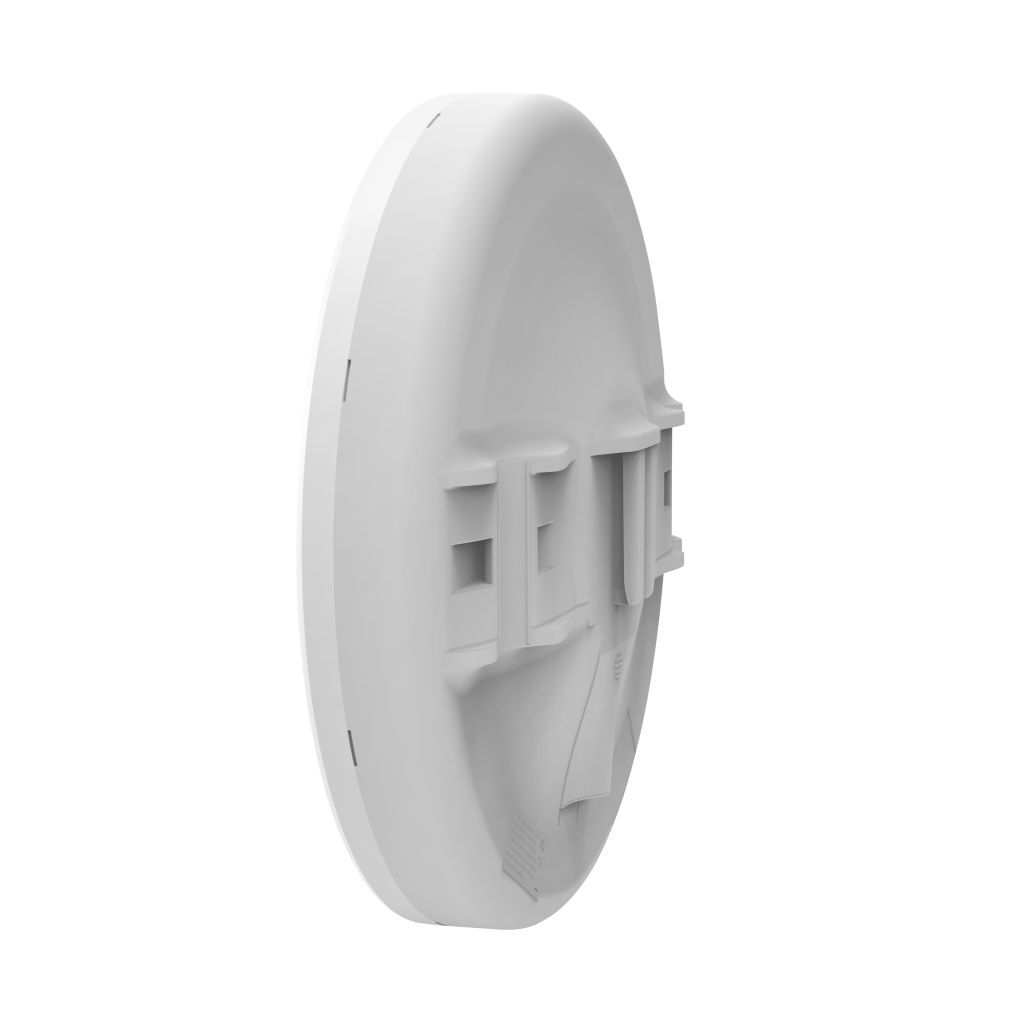

DISC Lite-5 5nD The DISC is a low cost high gain 5GHz CPE. By using a unique and innovative short backfire antenna design, we were able to achieve 21dBi antenna gain in a compact and easy to deploy package. DISC Lite5 is based on our popular LHG hardware design and is equipped with 21dBi dual chain 802.11n integrated CPE with 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3 installed. It comes complete with a power supply, PoE injector and hose clamp. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series. The RouterOS Level3 allows to use the DISC Lite5 as a CPE or for 5GHz Point-to-Point links pdf brochure
(RBDisc-5nD)
| Specifications |
| Product code | RBDisc-5nD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | ⌀ 265mm, height: 80mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Ethernet |
| 10/100 Ethernet ports | 1 |
| Certification & Approvals |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| Wireless specifications |
| 5 GHz TX/RX | | 5 GHz | Transmit (dBm) | Receive Sensitivity | | 6MBit/s | 25 | -96 | | 54MBit/s | 20 | -80 | | MCS0 | 25 | -96 | | MCS7 | 19 | -75 | |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 21 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
| SKU |
RBDisc-5nD |
| Brand |
MIKROTIK |
| Shipping Weight |
3.3000kg |
