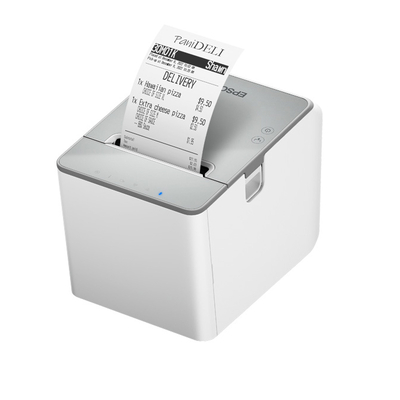

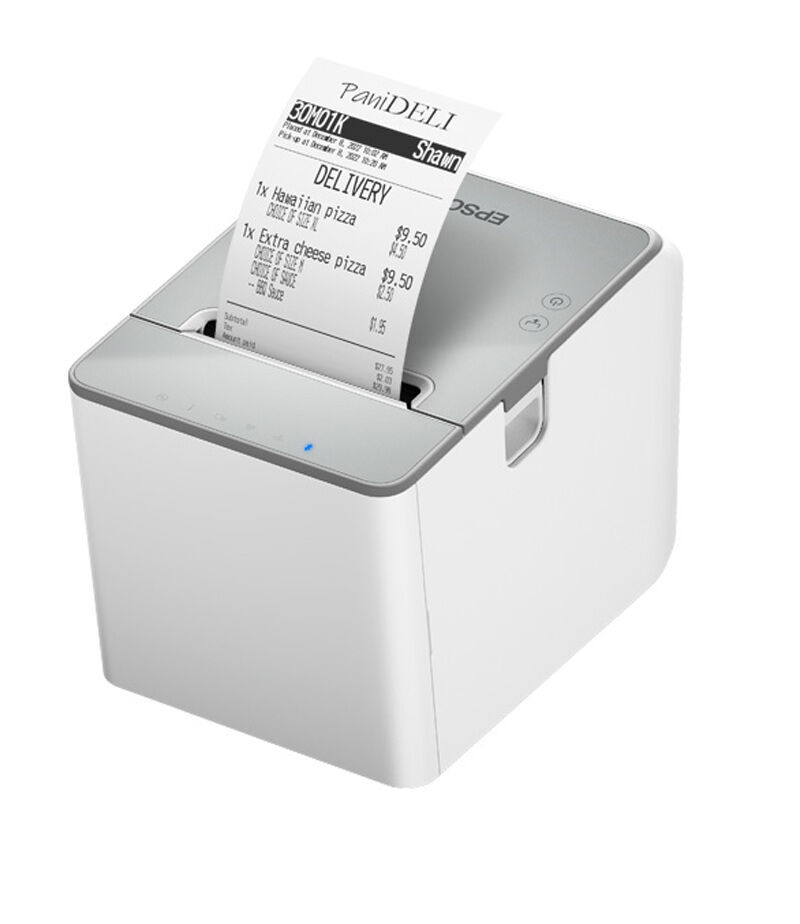

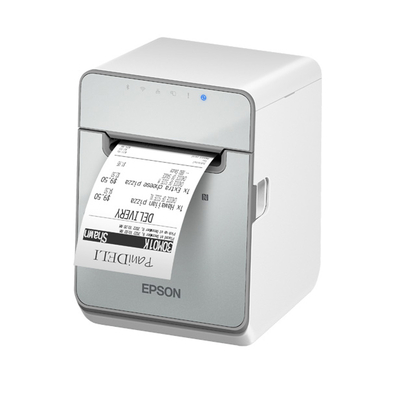

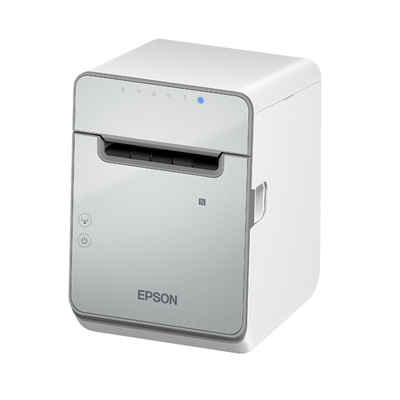

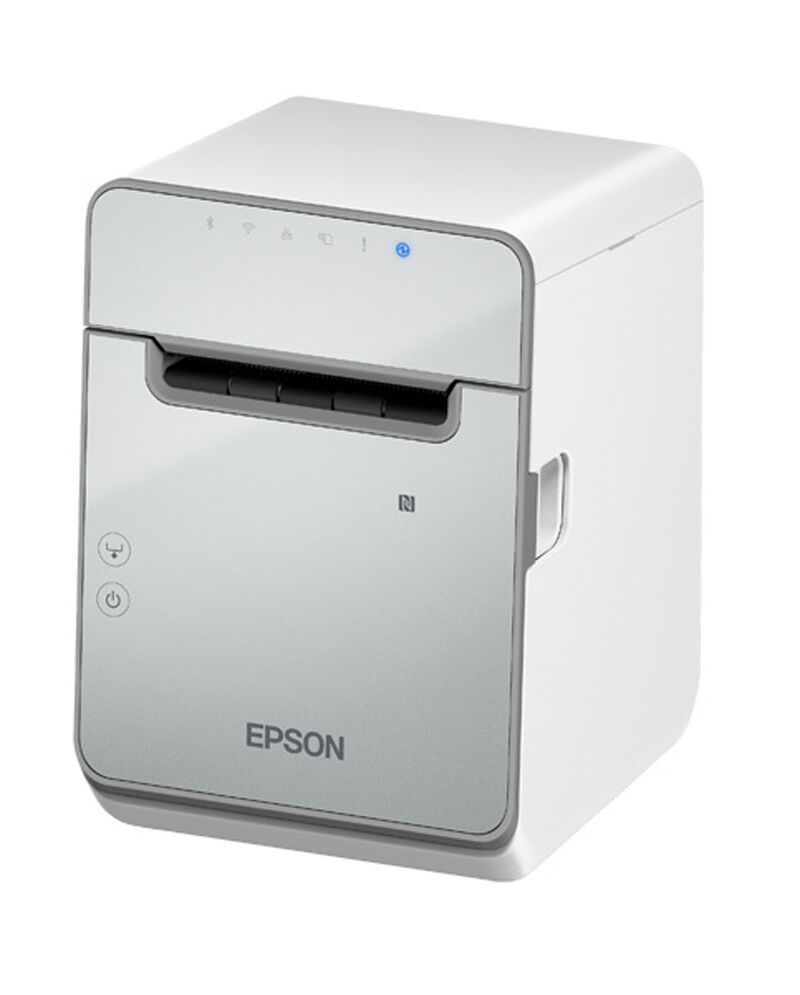

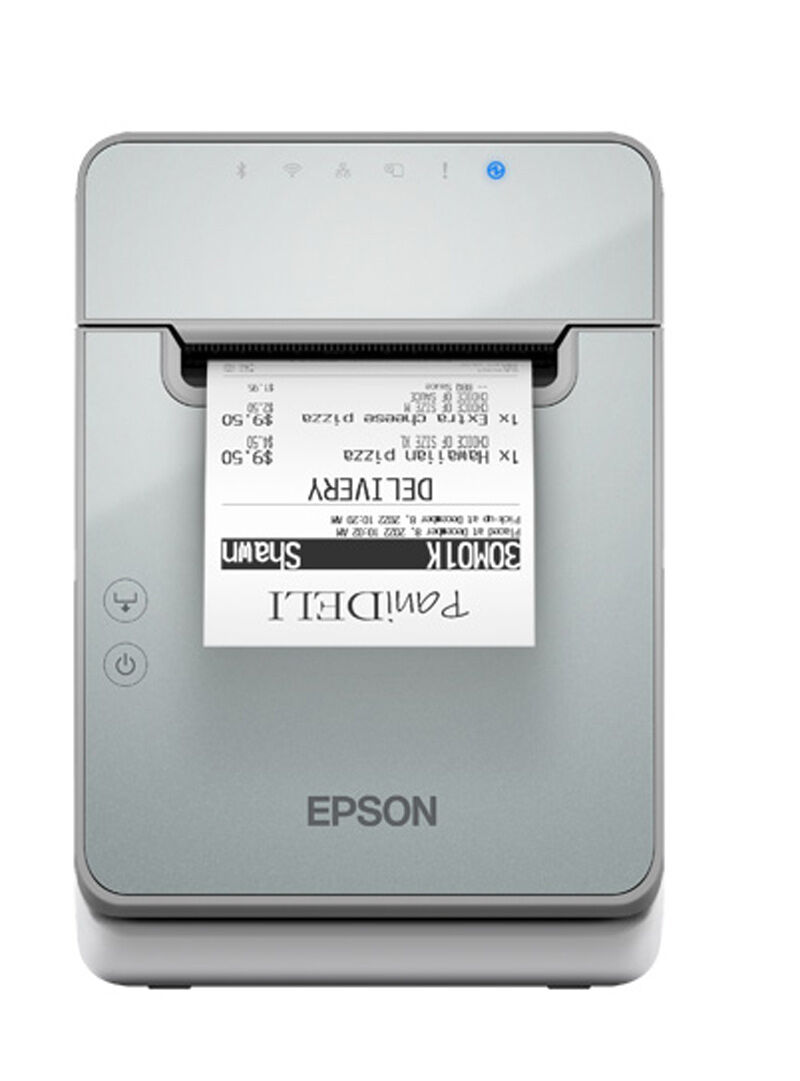

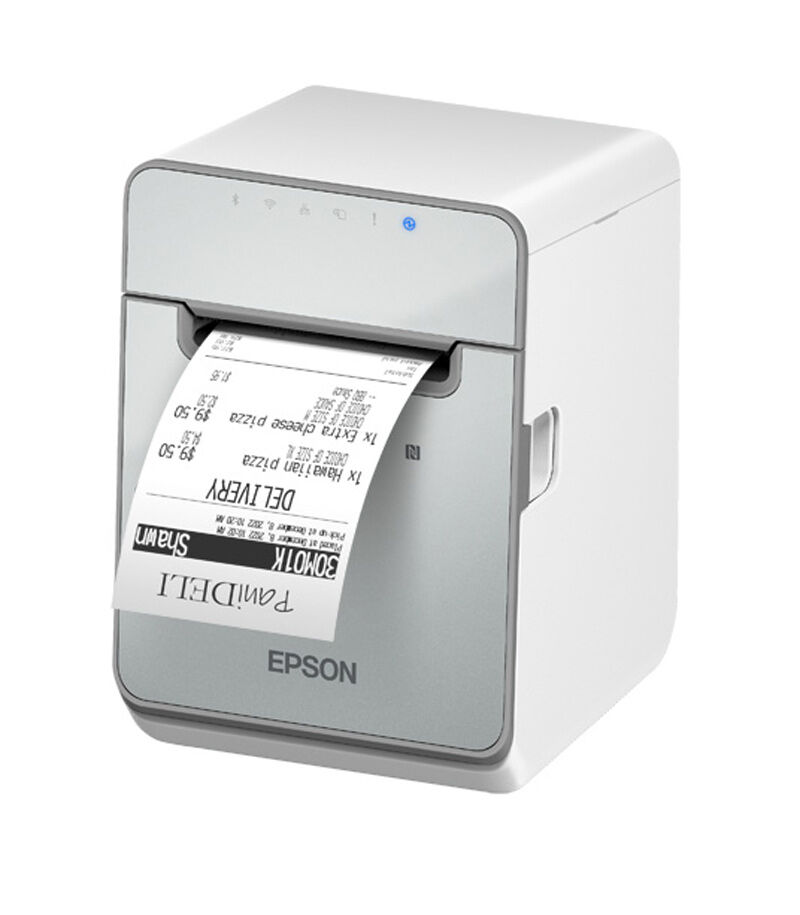

The Epson TM-L100 is an easy, cost-effective liner-free label and receipt printer designed for QSR, food service and retail. It prints high-quality labels, barcodes and receipts at speeds up to 170 mm/sec and supports selectable 40, 58 and 80 mm paper widths. Embedded ePOS capability makes it simple to integrate with your current POS system, while flexible USB, Ethernet and Serial connectivity, advanced paper-saving features and a label-taken sensor help keep busy operations moving.

(C31CJ52801)

Easy, cost-effective liner-free label printing for QSR and food service High-quality label, barcode and receipt printing at speeds up to 170 mm/sec Selectable paper widths of 40, 58 and 80 mm Embedded ePOS capability - easily integrate with your current POS system Flexible connectivity for virtually any environment with built-in USB and Ethernet, plus Serial port Online ordering ready - Server Direct Print retrieves orders from a web server without POS software integration Advanced paper-saving features reduce media usage up to 47 percent Label-taken sensor prevents continuous printing and labels sticking together Silicon laminate surface for improved cleanability and anti-sticking Reliable hardware backed by Epson's proven service and support

PRODUCT NAME: TM-L100 PRINT METHOD: Thermal line printing PRINT RESOLUTION: 203 x 203 dpi PRINT SPEED (LINER-FREE LABEL): 170 mm/sec PRINT SPEED (THERMAL PAPER): 170 mm/sec MEDIA WIDTH: 80 mm: 79.5 ± 0.5 mm (3.13 ± 0.02") 58 mm (default): 57.5 ± 0.5 mm (2.26 ± 0.02") 40 mm (liner-free label media only): 39.5 ± 0.5 mm (1.56 ± 0.02") ROLL DIAMETRE (Max.): 102 mm (4.02") CORE DIAMETRE (Min.): Thermal receipt media: 18 mm (0.71"); liner-free label media: 31.8 mm (1.25") PRINTING FONT: ANK Font A (default): 12 x 24 dots ANK Font B: 9 x 17 dots Kanji Font A: 24 x 24 dots Kanji Font B: 20 x 24 dots (Japanese); 16 x 16 dots (Korean) Special Font A: 12 x 24 dots Special Font B: 9 x 24 dots CHARACTERS PER LINE: 80 mm Width Media: ANK Font A (default), 42/48; ANK Font B, 55/64 58 mm Width Media: ANK Font A, 35; ANK Font B, 46 40 mm Width Media: ANK Font A, 23; ANK Font B, 31 CHARACTER SET: 95 alphanumeric characters, 18 international sets, 128 x 43 pages extended graphics, Japanese (JIS X0208-1990, JIS X0213, 845 special characters), Simplified Chinese (GB18030-2000), Traditional Chinese (Big5), Korean (KS C5601) SUPPLY VOLTAGE VERSION: DC +24V ± 7% (AC Adapter PS-190 included for serial and Ethernet version) CURRENT CONSUMPTION: Approx 1.8A (mean) THERMAL HEAD LIFE: 150 km (Thermal Paper), 75 km (Liner-free Label) MTBF: 360,000 hrs MCBF: 70 million lines (Thermal Paper), 35 million lines (Liner-free Label) DIMENSIONS (W x D x H): 140.0 x 148.5 x 207.0 mm SAFETY APPROVAL: EMI: AS/NZS CISPR22 Class A
