StarTech Dual 4K 60Hz Monitor Thunderboltª_3 Dock_- PCIe M.2 Slot and SD Reader TB3DK2DPM2
Model # TB3DK2DPM2
-
SKU: TB3DK2DPM2
- Pick Up Available
- Australian Warranty
- Checkout Securely

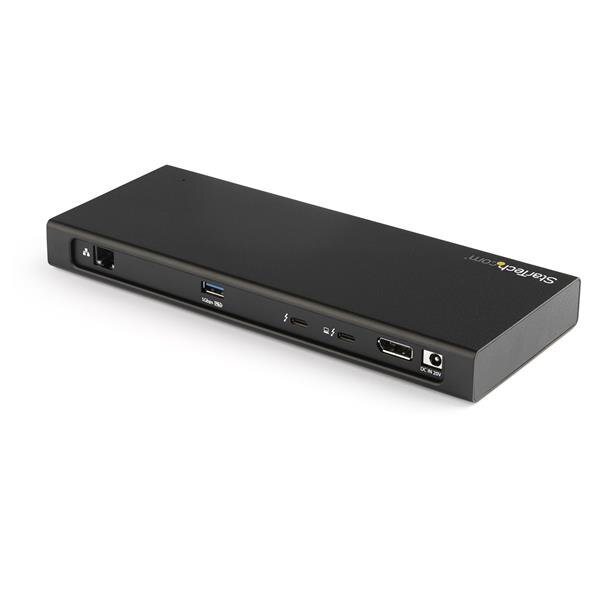

This compact Thunderbolt™ 3 dock is built for productivity, transforming your Thunderbolt 3 laptop into a dual-4K workstation with up to 40Gbps of throughput. The high- performance dock features a PCIe M.2 SSD slot for enhanced data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, plus 85W Power Delivery.
Create a Dual-4K 60Hz Workstation
Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors:
- 1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz)
- USB-C to DP cable or USB-C video adapter may be required
- 1x 5K monitor at 60H
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Add Data Storage
The Thunderbolt 3 dock’s built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching.
Fast SD Card Access
Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock’s SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s.
Connect Your Devices
Connect peripherals with three USB ports - one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync.
The GbE port (with PXE Boot and WoL support) provides reliable wired network access.
85W Power Delivery
Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
-
Advanced Windows Layout Utility: To setup and save custom windows layouts.
-
Mac Address Pass-Through Utility: To improve network security.
-
USB Event Monitoring Utility: To track and log connected USB devices
-
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit:www.StarTech.com/Connectivity-Tools
The TAA compliant TB3DK2DPM2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
(TB3DK2DPM2)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| 4K Support | Yes | |
| Bus Type | Thunderbolt 3 | |
| Chipset ID | Intel - Alpine Ridge DP ASMedia ASM1142 Realtek RTS5411 Realtek RTS5329 C-Media - CM6533 Intel i210AT |
|
| Displays Supported | 2 | |
| Fast-Charge Port(s) | Yes | |
| Industry Standards | Thunderbolt 3 USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
|
| Performance | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Data Transfer Rate | 40 Gbps (Thunderbolt 3) 10 Gbps (USB 3.1 Gen 2) 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
|
| Maximum Digital Resolutions | Dual 4K displays - DisplayPort and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz Single 4K display - DisplayPort or Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz Single 5K (5120 x 2880p) display (through Thunderbolt 3 USB-C port) |
|
| Memory Media Type | SD/MMC (Secure Digital/Multimedia Card) | |
| SDHC (Secure Digital High Capacity) | ||
| SDXC (Secure Digital eXtended Capacity) | ||
| microSD (Micro Secure Digital) (adapter required) | ||
| microSDHC (Micro Secure Digital High Capacity) (adapter required) | ||
| microSDXC (Micro Secure Digital eXtended Capacity) (adapter required) | ||
| PXE | Yes | |
| Type and Rate | Thunderbolt 3 - 40 Gbit/s | |
| UASP Support | Yes | |
| Connector(s) | ||
| Connector Type(s) | 2 - Thunderboltª 3 USB-C (24-pin) (40Gbps) Female | |
| 1 - DisplayPort (20 pin) Female | ||
| 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female | ||
| 1 - SD Slot Female | ||
| 1 - M.2 (NVMe, M-Key, PCIe x4) Female | ||
| 1 - USB 3.0 A (Fast-Charge, 9 pin) Female | ||
| 1 - USB Type-A (9 pin) USB 3.0 Female | ||
| 1 - RJ-45 Female | ||
| 1 - 3.5 mm Mini-Jack (3 Position) Female | ||
| 1 - 3.5 mm Audio Female | ||
| Software | ||
| OS Compatibility | Windows¨ 8, 8.1, 10 macOS 10.12 - 10.14 |
|
| Special Notes / Requirements | ||
| Note | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). | |
| When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display. | ||
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps. | ||
| System and Cable Requirements | Thunderbolt 3 equipped computer with a Thunderbolt 3 port. | |
| Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop. | ||
| Power | ||
| Center Tip Polarity | Positive | |
| Input Current | 2.5 A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 7.5 A | |
| Output Voltage | 20V DC | |
| Plug Type | N | |
| Power Consumption (In Watts) | 170 | |
| Power Delivery | 85W | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Humidity | 20~80% RH | |
| Operating Temperature | 5¡C to 35¡C (41¡F to 95¡F) | |
| Storage Temperature | -20¡C to 50¡C (-4¡F to 122¡F) | |
| Physical Characteristics | ||
| Cable Length | 19.7 in [500 mm] | |
| Color | Black | |
| Enclosure Type | Aluminum | |
| Product Height | 1 in [2.5 cm] | |
| Product Length | 3.7 in [95 mm] | |
| Product Width | 9.4 in [23.9 cm] | |
| Weight of Product | 27.5 oz [780 g] | |
| Packaging Information | ||
| Package Height | 4.9 in [12.5 cm] | |
| Package Length | 11.3 in [28.8 cm] | |
| Package Width | 5.4 in [13.8 cm] | |
| Shipping (Package) Weight | 3.1 lb [1.4 kg] | |
| What's in the Box | ||
| Included in Package | 1 - docking station | |
| 1 - Thunderbolt 3 cable | ||
| 1 - universal power adapter | ||
| 4 - power cords (NA/JP, EU, UK, ANZ) | ||
| 1 - instruction manual | ||
| SKU | TB3DK2DPM2 |
| Barcode # | 65030876254 |
| Brand | Startech |
| Shipping Weight | 2.1600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.290m |
| Shipping Cubic | 0.001450000m3 |
