StarTech Thunderbolt 3 Dock, Dual 4K, MacBook Pro & Windows, 85W PD - TB3DK2DPPD
Model # TB3DK2DPPD
-
SKU: TB3DK2DPPD
- Pick Up Available
- Australian Warranty
- Checkout Securely
Easily transform your Thunderbolt 3™ equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features three USB 3.0 ports, 85W Power Delivery to charge your laptop.
Create a Dual-4K Workstation
Great for video editing and other Ultra HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources.
Connect your laptop to:
- 1 x 4K monitor via the DP Port
- 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
- 1 x 5K monitor via the DP & TB3 USB-C port
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Connect your Devices
With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock's Fast-Charge and sync port. Connect a USB-C device with the USB-C port (5Gbps - data only).
Plenty of Charging Power
The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
-
Advanced Windows Layout Utility: To setup and save custom windows layouts.
-
Mac Address Pass-Through Utility: To improve network security.
-
USB Event Monitoring Utility: To track and log connected USB devices
-
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit:www.StarTech.com/Connectivity-Tools
TB3DK2DPPD features a rugged aluminum casing and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
(TB3DK2DPPD)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| 4K Support | Yes | |
| Bus Type | Thunderbolt 3 | |
| Chipset ID | Intel - Alpine Ridge DSL6540 Fresco - FL1100EX Texas Instruments - PCM2912A Intel - WGI210AT Texas Instruments - TPS65983 | |
| Displays Supported | 2 | |
| Fast-Charge Port(s) | Yes | |
| Industry Standards | Thunderbolt 3 USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 | |
| Performance | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Data Transfer Rate | 40 Gbps (Thunderbolt 3) 10 Gbps (USB 3.1 Gen 2) 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) | |
| Maximum Digital Resolutions | Single display - DisplayPort - 4096 x 2160p / 3840 x 2160p Single Display - Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p Dual displays - DisplayPort 4096 x 2160p / 3840 x 2160p and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p | |
| Type and Rate | Thunderbolt 3 - 40 Gbit/s | |
| UASP Support | Yes | |
| Connector(s) | ||

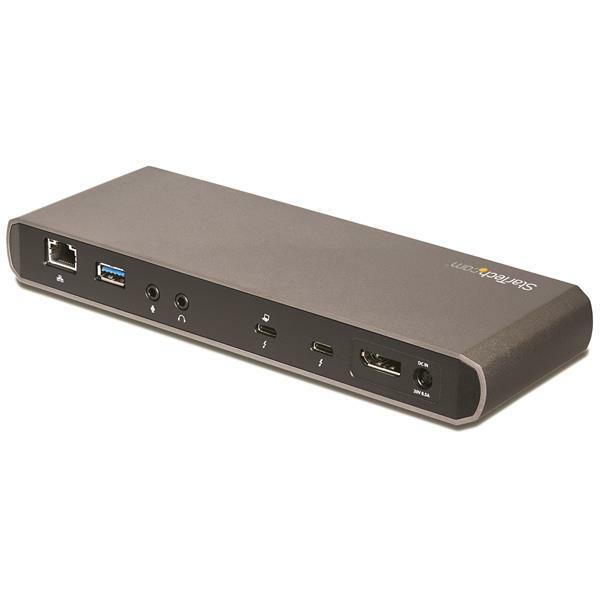

| Connector Type(s) | 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female | |
| 1 - DisplayPort (20 pin) Female | ||
| 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female | ||
| 1 - USB 3.0 A (Fast-Charge, 9 pin) Female | ||
| 1 - USB Type-A (9 pin) USB 3.0 Female | ||
| 2 - 3.5 mm Mini-Jack (3 Position) Female | ||
| 1 - RJ-45 Female | ||
| Software | ||
| OS Compatibility | Windows® 7, 8, 8.1, 10 macOS 10.12 - 10.14 | |
| Special Notes / Requirements | ||
| Note | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). | |
| Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz). | ||
| When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display. | ||
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps. | ||
| System and Cable Requirements | Thunderbolt 3 equipped computer with a Thunderbolt 3 port. | |
| Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop. | ||
| Power | ||
| Input Current | 2.5 A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 8.5 A | |
| Output Voltage | 20V DC | |
| Plug Type | CP (OD:7.4/ID:5.1/CPD:0.6) | |
| Power Consumption (In Watts) | 170 | |
| Power Delivery | 85W | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Humidity | 5~95% RH (Non-condensing) | |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Physical Characteristics | ||
| Cable Length | 20.5 in [520 mm] | |
| Color | Gray and Black | |
| Enclosure Type | Aluminum and Plastic | |

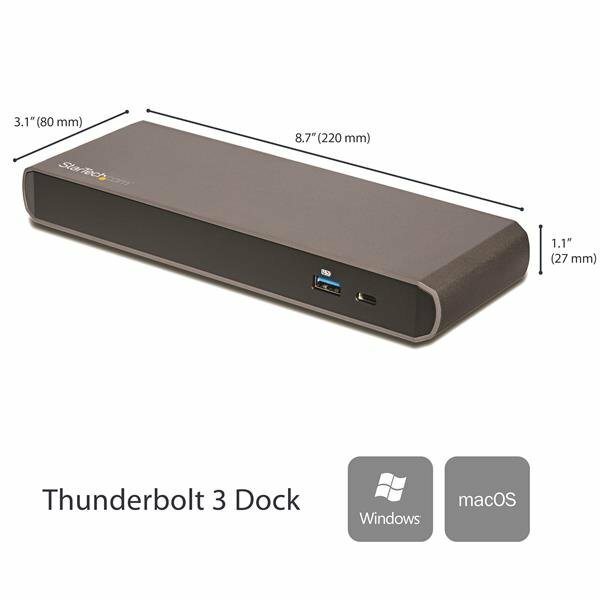

| Product Height | 1.1 in [2.7 cm] | |
| Product Length | 8.7 in [22 cm] | |
| Product Width | 3.1 in [80 mm] | |
| Weight of Product | 15.9 oz [450 g] | |
| Packaging Information | ||
| Package Height | 3.5 in [88 mm] | |
| Package Length | 9.8 in [24.8 cm] | |
| Package Width | 5.8 in [14.8 cm] | |
| Shipping (Package) Weight | 3.3 lb [1.5 kg] | |
| What's in the Box | ||
| Included in Package | 1 - docking station | |
| 1 - 1.7 ft. [520 mm] Thunderbolt 3 cable | ||
| 1 - 6 ft. [1.8 m] USB-C to DP cable | ||
| 1 - universal power adapter | ||
| 2 - power cords (NA/JP, ANZ) | ||
| 1 - instruction manual | ||
| SKU | TB3DK2DPPD |
| Barcode # | 65030868426 |
| Brand | Startech |
| Shipping Weight | 1.5500kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.080m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.002800000m3 |
