StarTech.com · M2E1BRU31C

StarTech M2E1BRU31C Rugged USB-C 10Gbps M.2 NVMe Enclosure

Rugged USB-C 10Gbps M.2 NVMe Enclosure designed for professional IT, electronics, security or workstation use.

Quick answer: M2E1BRU31C protects a compatible M.2 NVMe drive in a dustproof and water-resistant USB 10Gbps enclosure.

Best forField, construction, manufacturing and mobile workflows needing fast portable NVMe storage with extra environmental protection.

Check before orderingSupports M-Key PCIe NVMe drives in 22302280 lengths; it does not support M.2 SATA or AHCI drives.

Answers before you buy

Frequently asked questions

What is StarTech M2E1BRU31C?

It is a IP67-rated aluminium USB-C enclosure for M.2 NVMe SSDs that protects a compatible M.2 NVMe drive in a dustproof and water-resistant USB 10Gbps enclosure.

Which connections or mounting method are provided?

Internal M.2 NVMe slot and external USB-C 10Gbps host connector

What performance is specified?

USB 10Gbps with UASP, TRIM and 4Kn; IP67 dust and water resistance

How is the product constructed?

Solid black aluminium enclosure with internal thermal pad, rubber feet and Torx-fastened housing

What does the IP67 rating provide?

The enclosure is specified as dustproof and water resistant when correctly assembled.

Does it support SATA M.2 drives?

No. It is designed for M-Key PCIe NVMe SSDs only.

What should be checked before ordering?

Supports M-Key PCIe NVMe drives in 22302280 lengths; it does not support M.2 SATA or AHCI drives.

What warranty applies?

M2E1BRU31C carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(M2E1BRU31C)

Features & highlights

Why choose M2E1BRU31C?

?Purpose-built designInternal M.2 NVMe slot and external USB-C 10Gbps host connector

?Specified performanceUSB 10Gbps with UASP, TRIM and 4Kn; IP67 dust and water resistance

?Professional constructionSolid black aluminium enclosure with internal thermal pad, rubber feet and Torx-fastened housing

?Key capabilityIP67 construction helps protect installed storage against dust and temporary water exposure.

?Deployment advantageBus-powered, driver-free operation suits USB-C and compatible Thunderbolt hosts.

?Order with confidenceSupports M-Key PCIe NVMe drives in 22302280 lengths; it does not support M.2 SATA or AHCI drives.

Compatibility reminder: Supports M-Key PCIe NVMe drives in 22302280 lengths; it does not support M.2 SATA or AHCI drives.

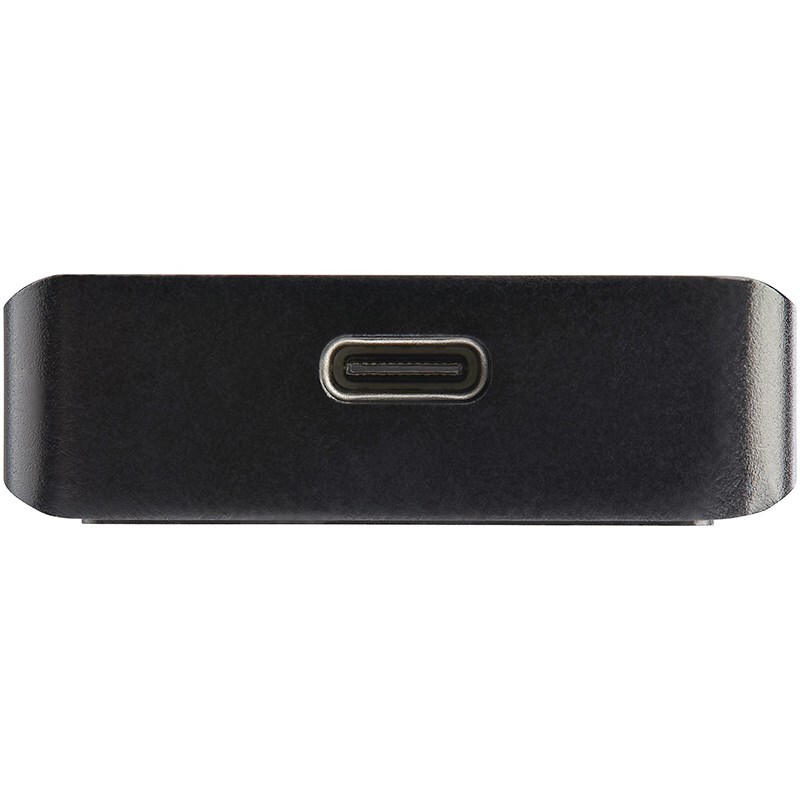

StarTech M2E1BRU31C Rugged USB-C 10Gbps M.2 NVMe Enclosure product image

Technical specifications

M2E1BRU31C specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Connectors
Drive Connector	1 × M.2 PCIe NVMe M-Key
Host Connector	1 × USB-C 10Gbps
Hardware
Drive Lengths	2230, 2242, 2260, 2280
Chipset	JMicron JMS583
Protection Rating	IP67
Material	Aluminium
Performance
Maximum Data Rate	10Gbps
UASP / TRIM / 4Kn	Yes / Yes / Yes
NVMe Interface	PCIe Gen 3
MTBF	50,000 hours
Limitation	Not compatible with M.2 SATA or AHCI SSDs
Physical Characteristics
Colour	Black
Dimensions	105 × 45 × 14mm
Product Weight	164g
Cable Length	52cm
Power	Bus-powered
What's in the Box

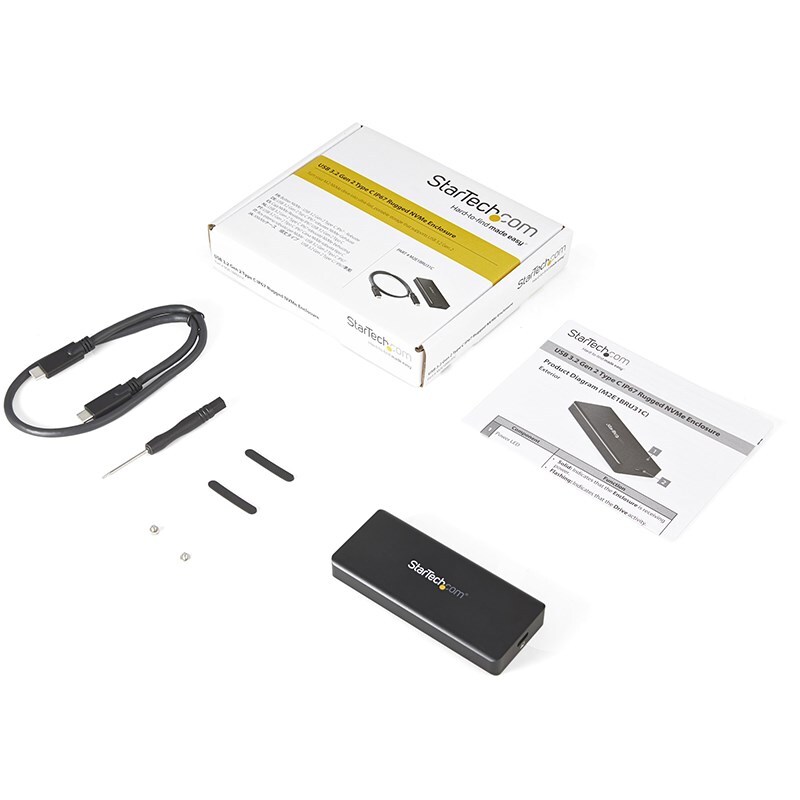

Included	NVMe enclosure; 52cm USB-C cable; standoff; Torx driver; rubber feet; quick-start guide

Sources: https://www.devicedeal.com.au/startech-usb-c-10gbps-m.2-nvme-pcie-ssd-enclosure and https://www.startech.com/

SKU	M2E1BRU31C
Barcode #	65030889476
Brand	Startech
Shipping Weight	0.2500kg
Shipping Width	0.003m
Shipping Height	0.017m
Shipping Length	0.014m

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the 2-year manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
