Tycon Power • TP-ESP-1G-24RM

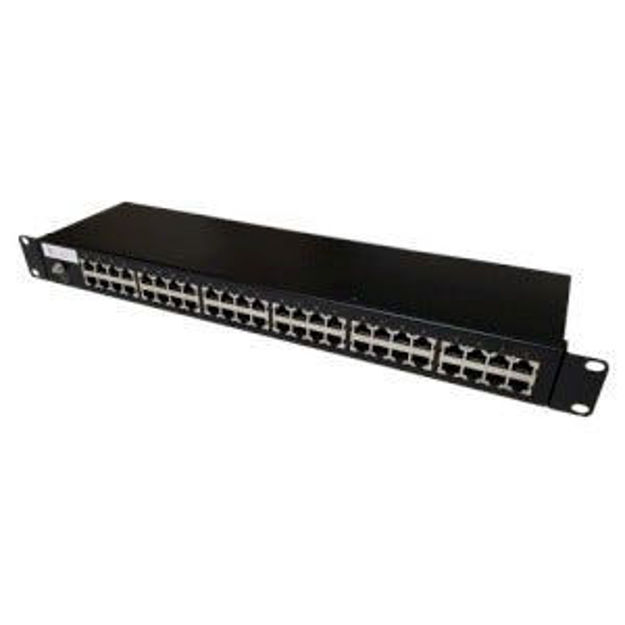

Tycon Power TP-ESP-1G-24RM 24-Port 1U Gigabit PoE Surge Protector - 70V Clamp, 10kA

The Tycon Power TP-ESP-1G-24RM protects up to 24 Gigabit Ethernet or PoE links in a 1U 19-inch rackmount chassis, with a 70V clamp level and 10kA surge rating.

24 protected ports 1U rackmount Gigabit Ethernet 70V clamp 10kA surge rating

Product highlights

Key supplied and exact-model details for the TP-ESP-1G-24RM.

Twenty-four protected links

The 1U chassis provides surge protection for 24 Ethernet connections.

Gigabit data rate

Each channel supports 10/100/1000Mb Ethernet.

Broad PoE support

IEEE 802.3af, 802.3at, 802.3bt and passive PoE are supported up to 56V.

10kA surge protection

The exact product information identifies a 10kA surge rating.

Centralised grounding

A front-panel grounding stud supports a single-point earth connection.

Metal rackmount construction

The full metal 19-inch 1U housing is designed for rack installation.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

How many links can the TP-ESP-1G-24RM protect?

It provides 24 protected Ethernet channels.

What rack space is required?

The unit uses a 19-inch 1U rack position.

What Ethernet speed is supported?

Each channel supports up to Gigabit Ethernet.

Which PoE types are supported?

It supports IEEE 802.3af, 802.3at, 802.3bt and passive PoE systems up to 56V.

How is the unit grounded?

A front-panel ground stud is provided for connection to the site earth system.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Power’s terms and assessment.

(TP-ESP-1G-24RM)

Technical specifications

Tycon Power TP-ESP-1G-24RM

Product details
Brand Tycon Power
Model TP-ESP-1G-24RM
Product type 24-port rackmount Gigabit Ethernet / PoE surge protector
Port count 24
Rack format 19-inch 1U
Network and PoE
Network data rate 10/100/1000Mb
PoE compatibility IEEE 802.3af, 802.3at, 802.3bt and passive PoE
Maximum PoE system voltage Up to 56V
Protected conductors All 8 Ethernet wires per channel
Cable compatibility CAT5, CAT5e, CAT6 and CAT6a
Surge protection
Clamp voltage 70V
Surge rating 10kA
Protection Common-mode, differential-mode and over-current protection
Physical and environmental
Connectors Shielded RJ45
Housing Metal
Grounding Front-panel ground stud
Operating temperature -40°C to 85°C
Outdoor use Inside a suitable weatherproof enclosure
SKU TP-ESP-1G-24RM
Brand TYCON POWER
Shipping Weight 2.0000kg
DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. The TP-ESP-1G-24RM is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Tycon Power TP-ESP-1G-24RM 24-Port 1U Gigabit PoE Surge Protector - 70V Clamp, 10kA

Model # TP-ESP-1G-24RM

  • SKU: TP-ESP-1G-24RM

$1,242.00
$1,491.00
SAVE $249.00 (17%)
In Stock
