High-capacity campus access switching Ubiquiti ECS-24-PoE Enterprise Campus 24-Port Layer 3 PoE+++ Switch
The Ubiquiti ECS-24-PoE is a 1U enterprise Layer 3 Etherlighting switch with eight 2.5 GbE PoE+++ ports, sixteen 10 GbE PoE+++ ports, two 25G SFP28 uplinks and hot-swappable redundant power and cooling.
8 x 2.5 GbE16 x 10 GbE2 x 25G SFP2824 x PoE+++
DeviceDeal authorised Ubiquiti reseller 1 Year Ubiquiti manufacturer warranty
What is the ECS-24-PoE?
The Ubiquiti ECS-24-PoE is a 1U enterprise Layer 3 Etherlighting switch with eight 2.5 GbE PoE+++ ports, sixteen 10 GbE PoE+++ ports, two 25G SFP28 uplinks and hot-swappable redundant power and cooling.
Designed around the requirements that matter
Product-specific capabilities, deployment details and purchasing considerations for the ECS-24-PoE.
01Multi-gigabit campus access
Eight 2.5 GbE and sixteen 10 GbE copper ports support high-capacity edge connectivity.
02PoE+++ across all 24 ports
Each copper interface supports up to 90W PoE+++ for compatible powered devices.
0325G fibre uplinks
Two 25G SFP28 interfaces provide high-speed aggregation and backbone connectivity.
04Layer 3 switching
Enterprise Layer 3 switching supports routed campus and distribution designs.

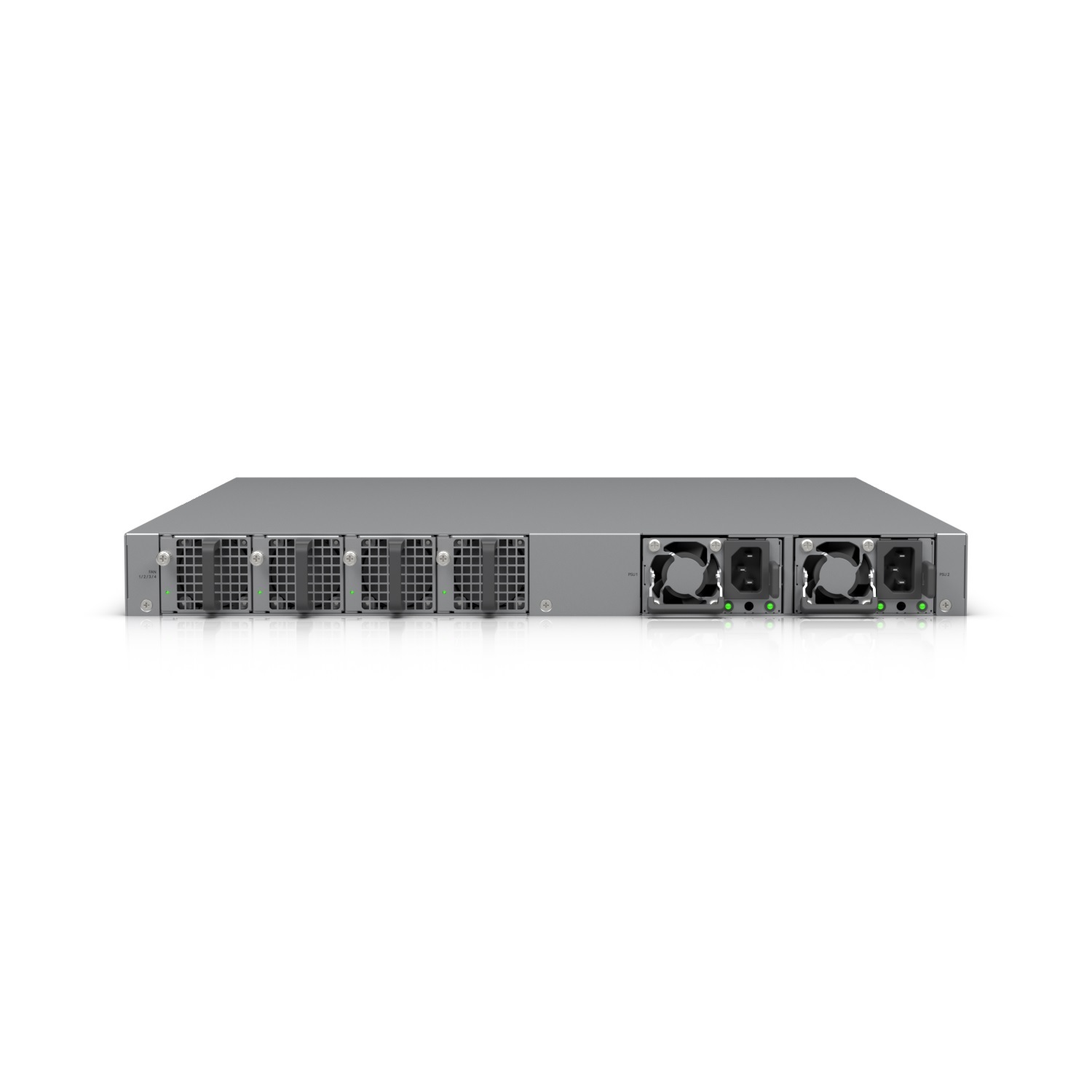

05Hot-swappable power
Two power-module bays support shared operation or 1+1 power redundancy.
06Resilient cooling
Four hot-swappable fans operate in a 3+1 arrangement.
i
What to know before buying
- End-user information may be required for deal registration and project quotation.
1 YearManufacturer warranty
Authorised reseller and manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti ECS-24-PoE is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Frequently asked questions
Clear answers to common pre-purchase questions about the Ubiquiti ECS-24-PoE.
What is the Ubiquiti ECS-24-PoE?
It is a 24-port enterprise Layer 3 PoE+++ switch with multi-gigabit copper access and 25G fibre uplinks.
Which copper ports are included?
It provides eight 2.5 GbE PoE+++ ports and sixteen 10 GbE PoE+++ ports.
What fibre uplinks are available?
It provides two 25G SFP28 uplink ports.
How much PoE can each port provide?
Each of the 24 copper ports supports up to 90W PoE+++ for compatible powered devices.
What switching performance is provided?
It provides 230 Gbps non-blocking throughput, 460 Gbps switching capacity and a 342.24 Mpps forwarding rate.
Does the switch support redundant power?
Yes. Two hot-swappable power modules can operate in shared mode or 1+1 redundancy.
What warranty does the Ubiquiti ECS-24-PoE include?
The Ubiquiti ECS-24-PoE is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(ECS-24-PoE)
Features and highlights
The Ubiquiti ECS-24-PoE is a 1U enterprise Layer 3 Etherlighting switch with eight 2.5 GbE PoE+++ ports, sixteen 10 GbE PoE+++ ports, two 25G SFP28 uplinks and hot-swappable redundant power and cooling.
01Multi-gigabit campus access
Eight 2.5 GbE and sixteen 10 GbE copper ports support high-capacity edge connectivity.
02PoE+++ across all 24 ports
Each copper interface supports up to 90W PoE+++ for compatible powered devices.
0325G fibre uplinks
Two 25G SFP28 interfaces provide high-speed aggregation and backbone connectivity.
04Layer 3 switching
Enterprise Layer 3 switching supports routed campus and distribution designs.
05Hot-swappable power
Two power-module bays support shared operation or 1+1 power redundancy.
06Resilient cooling
Four hot-swappable fans operate in a 3+1 arrangement.
Key product points
- 8 x 2.5 GbE
- 16 x 10 GbE
- 2 x 25G SFP28
- 24 x PoE+++
- End-user information may be required for deal registration and project quotation.
1 YearManufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti ECS-24-PoE is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.

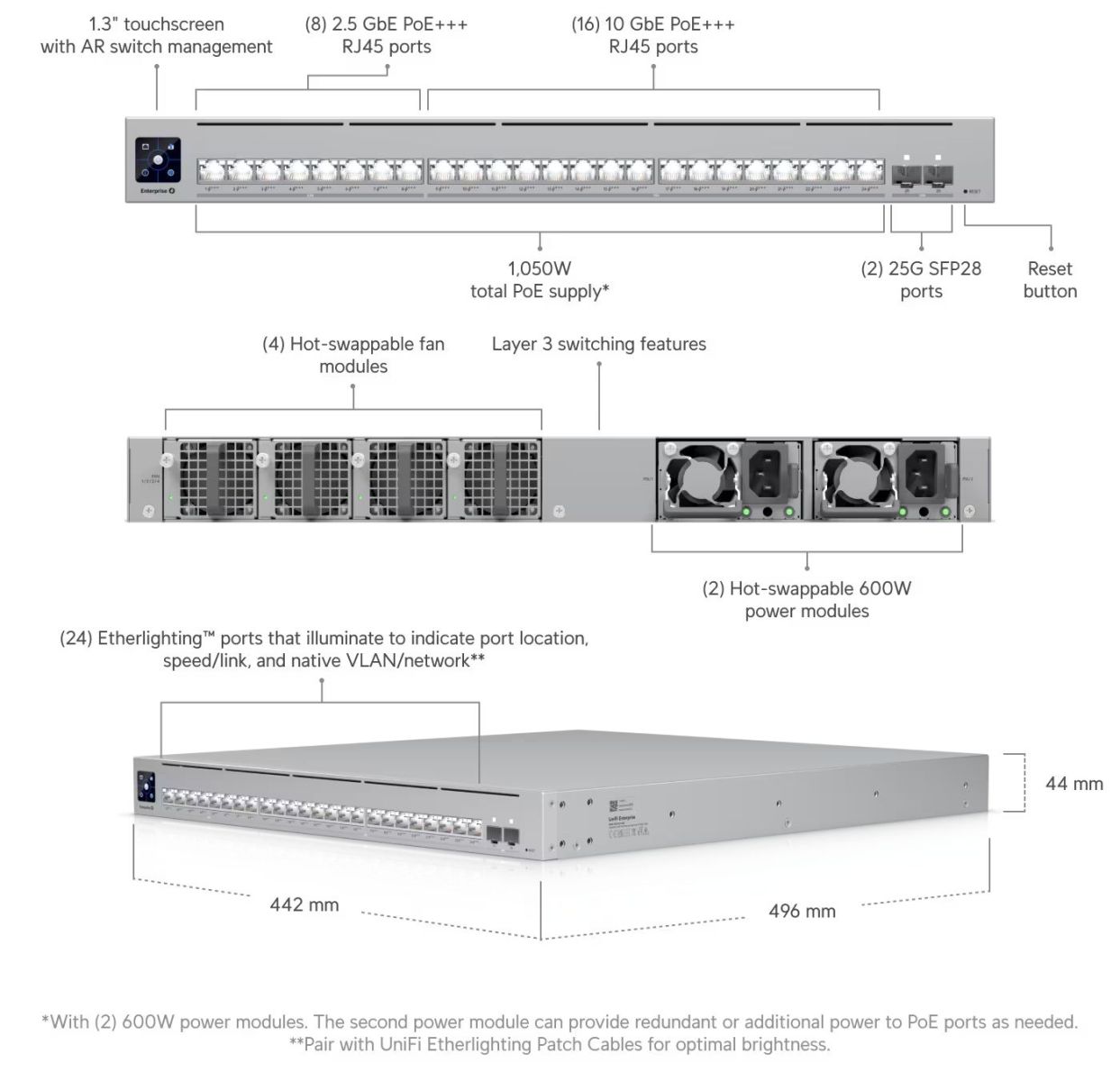

Product details
| Brand | Ubiquiti |
|---|
| Model / SKU | ECS-24-PoE |
|---|
| Product type | Enterprise Layer 3 PoE+++ switch |
|---|
| Form factor | 1U rackmount |
|---|
Interfaces
| 2.5 GbE PoE+++ ports | 8 |
|---|
| 10 GbE PoE+++ ports | 16 |
|---|
| 25G SFP28 ports | 2 |
|---|
PoE
| PoE ports | 24 |
|---|
| Maximum per-port PoE | 90W PoE+++; IEEE 802.3bt Type 4 Class 8 |
|---|
Switching performance
| Non-blocking throughput | 230 Gbps |
|---|
| Switching capacity | 460 Gbps |
|---|
| Forwarding rate | 342.24 Mpps |
|---|
Power and cooling
| Power modules | 2 x hot-swappable; shared mode or 1+1 redundancy |
|---|
| Fans | 4 x hot-swappable; 3+1 arrangement |
|---|
Physical
| Dimensions | 442 x 496 x 44 mm |
|---|
| Weight with brackets | 9.3 kg |
|---|
Warranty and purchasing confidence
| Manufacturer warranty | 1 Year Ubiquiti manufacturer warranty |
|---|
| Reseller | DeviceDeal is an authorised Ubiquiti reseller |
|---|
| SKU |
ECS-24-PoE |
| Barcode # |
810084699096 |
| Brand |
Ubiquiti |
| Shipping Weight |
9.3000kg |
| Shipping Width |
0.045m |
| Shipping Height |
0.450m |
| Shipping Length |
0.500m |
1 YearManufacturer warranty
Buying confidence Authorised reseller and manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti ECS-24-PoE is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Warranty typeUbiquiti manufacturer warranty Warranty duration1 Year Authorised resellerDeviceDeal
