Ubiquiti UniFi Wi-Fi 6 Long-Range AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz @ 600Mbps & 5GHz @ 2.4Gbps *No POE Injector*, Upgrade UAP-AC-LR
Model # U6-LR
-
SKU: U6-LR
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely

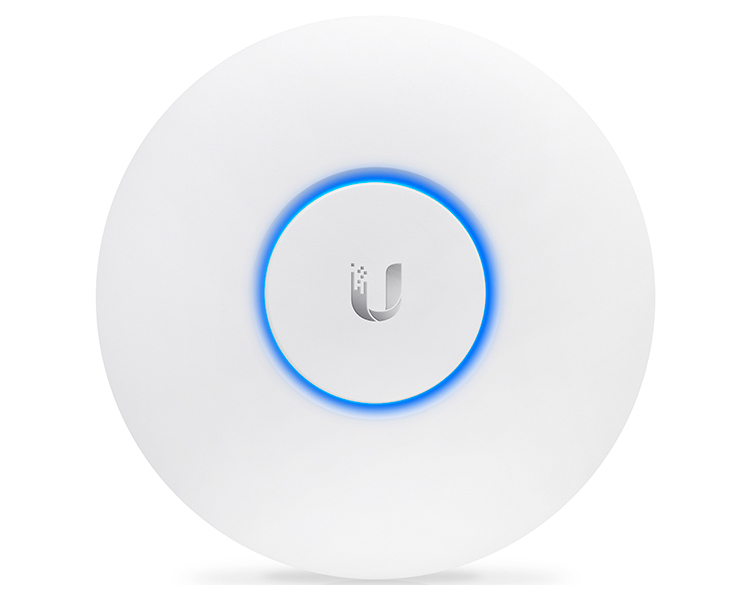

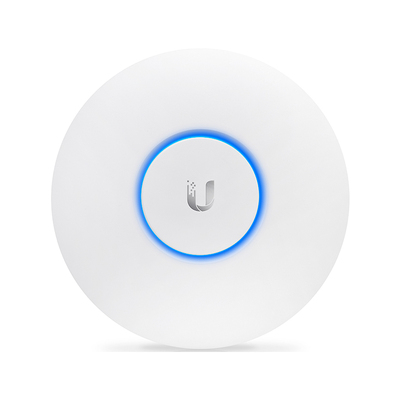

Ubiquiti U6 LR UniFi Access Point WiFi6 LR Long Range - No POE Injector
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5GHz (4x4 MU-MIMO and OFDMA) and 2.4GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
1.3GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
Four-stream high-efficiency Wi-Fi 6 technology
5GHz band 4X4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
2.4 GHz band 4X4 MIMO with radio rate of 600 Mbps
Powered with 802.3at PoE (PoE injector not included)
Managed with UniFi Network Application Version: 6.0.34 or higher
High-performance, indoor/outdoor WiFi 6 access point with extended signal range.
185 m² (2,000 ft²) coverage
350+ connected devices
WiFi6 (4x4 MIMO)
Powered using PoE+
Ubiquiti's new WiFi 6 Access Points deliver exceptional performance in high-density large client businesses and enterprise networks, all the way down to small businesses. The U6-LR can reach an aggregate throughput rate of up to 3 Gbps, and it offers 5 GHz 4x4 MU-MIMO, alongside 2.4 GHz 4x4 MIMO, offering the best combination of performance and compatibility with new and older devices connecting to your Wi-Fi networks.
The U6-LR can be set up in minutes with the UniFi Network mobile apps.
U6-LR Features:
1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
Four-stream high-efficiency Wi-Fi 6 technology
5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
U6-LR is Powered with 802.3at PoE (PoE injector not included).
Strengthen your business with fast and reliable wireless network connectivity with the U6-LR UniFi 6 AX3000 Long-Range Access Point from Ubiquiti Networks. This powerful 802.11ax Wi-Fi outdoor access point is designed to deliver up to 3000 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies, providing wide coverage for enterprise environments. The U6-LR supports over 300 clients using 4 x 4 MU-MIMO and OFDMA technologies to help ensure strong and efficient connections to devices. This access point is IP54 rated for semi-outdoor environments and includes both wall and ceiling mounting kits so that it can blend seamlessly with most environments. It is powered by connecting it to a PoE-compliant switch or through a separately purchased adapter.
Fast Wi-Fi
The UniFi 6 Long-Range Access Point supports 802.11ax Wi-Fi, delivering up to 2.4 Gb/s speeds on the 5 GHz frequency and 600 Mb/s through the 2.4 GHz signal with four-stream MU-MIMO and OFDMA technologies helping to ensure fast and reliable connections to devices.
Flexible Mounting
This access point is IP54 rated for indoor and semi-outdoor environments and includes wall and ceiling mounting kits.
PoE Powered
The U6-LR is powered with 802.3at PoE when connected to a compatible switch or a separately purchased power adapter.
UniFi Network Controller
Single interface network management.
Intuitive and comprehensive device configuration, control, and monitoring.
Remote firmware upgrading.
Manage network users and guests.
Personalize the design, architecture, and privacy of guest hotspots.
(U6-LR)
| Mechanical | |
|---|---|
| Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89") |
| Weight | Without mount: 800 g (1.76 lb) With mount: 930 g (2.05 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE+, passive PoE (48V) |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Not included) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 18.5W |
| Max. TX power 2.4 GHz 5 GHz |
26 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
| Throughput rate 2.4 GHz 5 GHz |
600 Mbps 2400 Mbps |
| Antenna gain 2.4 GHz 5 GHz |
4 dBi 5.5 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3 |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.0.34 and later |
| SKU | U6-LR |
| Barcode # | 810010073389 |
| Brand | Ubiquiti |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.080m |
| Shipping Length | 0.260m |
Manufacturer Warranty : 1 Year Manufacturer Warranty
