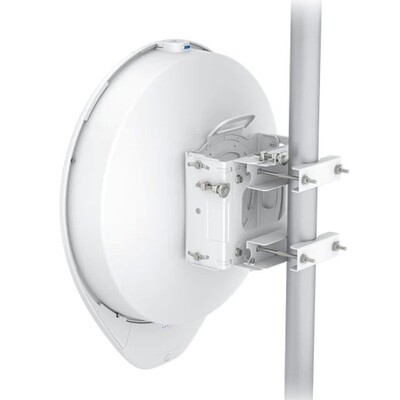

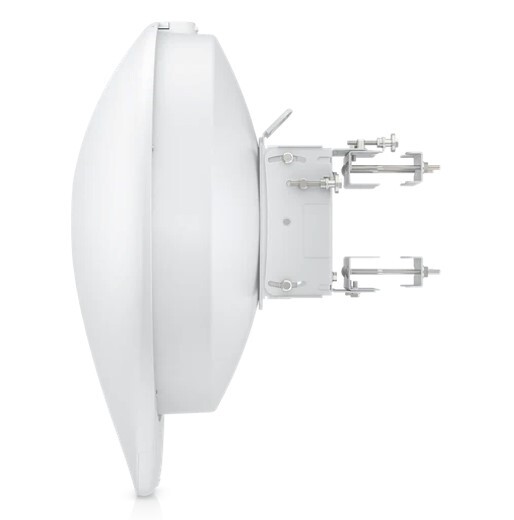

A multi-gigabit 60 GHz point-to-point bridge with a built-in 5 GHz backup radio, 4+ km link range, channel bonding up to 6 Gbps, Gigabit Ethernet and 1/10G SFP+ connectivity.
4+ kmUp to 6 Gbps5 GHz backup1/10G SFP+
Authorised Ubiquiti reseller2 Years Ubiquiti manufacturer warranty
60 GHzPrimary link5 GHzBackup radio6 GbpsWith channel bonding4+ kmMaximum link range
Multi-gigabit wireless bridge with an integrated backup path
The AF60-XG combines a high-capacity 60 GHz bridge with a built-in 5 GHz backup radio and flexible copper or 10G optical connectivity.
Up to 6 Gbps with bonding
The 60 GHz radio supports channel bonding up to 6 Gbps.
Built-in 5 GHz backup
An integrated 5 GHz radio provides a secondary wireless path.
1/10G SFP+ interface
The SFP+ interface supports 1G or 10G network connectivity.
Gigabit Ethernet
A separate Gigabit Ethernet RJ45 port is provided.
High-gain dish
The integrated high-gain dish supports focused point-to-point operation.
GPS and Bluetooth
Integrated GPS and Bluetooth support installation and setup.
UISP management
The radio is managed through UISP.
Pair required for a link
A complete point-to-point bridge requires two compatible units.
i
Complete-link requirement
The AF60-XG is an individual radio. Two compatible radios are required to build a complete point-to-point bridge.
2 YearsUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AF60-XG is backed by a 2-year Ubiquiti manufacturer warranty, with support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti AF60-XG.
What is the Ubiquiti AF60-XG?
The AF60-XG is a multi-gigabit point-to-point bridge using 60 GHz as the primary link and 5 GHz as a backup path.
What is the link range?
The maximum link range is 4+ km, subject to installation and environmental conditions.
What throughput does the AF60-XG support?
The 60 GHz radio supports 3.8 Gbps and up to 6 Gbps with channel bonding.
Does the AF60-XG have a backup radio?
Yes. A built-in 5 GHz radio provides a secondary wireless path.
Which network interfaces are included?
It provides one Gigabit Ethernet RJ45 port and one 1/10G SFP+ interface.
How many units are needed for a link?
Two compatible radios are required to create a complete point-to-point bridge.
What power adapter is included?
A 48V, 0.65A PoE adapter is included.
What warranty does the Ubiquiti AF60-XG include?
The Ubiquiti AF60-XG is backed by a 2 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AF60-XG)
Features and highlights
A multi-gigabit 60 GHz point-to-point bridge with a built-in 5 GHz backup radio, 4+ km link range, channel bonding up to 6 Gbps, Gigabit Ethernet and 1/10G SFP+ connectivity.
✓
Up to 6 Gbps with bonding
The 60 GHz radio supports channel bonding up to 6 Gbps.
✓
Built-in 5 GHz backup
An integrated 5 GHz radio provides a secondary wireless path.
✓
1/10G SFP+ interface
The SFP+ interface supports 1G or 10G network connectivity.
✓
Gigabit Ethernet
A separate Gigabit Ethernet RJ45 port is provided.
✓
High-gain dish
The integrated high-gain dish supports focused point-to-point operation.
✓
GPS and Bluetooth
Integrated GPS and Bluetooth support installation and setup.
✓
UISP management
The radio is managed through UISP.
✓
Pair required for a link
A complete point-to-point bridge requires two compatible units.
Key product facts
60 GHz: Primary link
5 GHz: Backup radio
6 Gbps: With channel bonding
4+ km: Maximum link range
Complete-link requirement: The AF60-XG is an individual radio. Two compatible radios are required to build a complete point-to-point bridge.
Technical specifications
Product specifications for Ubiquiti model AF60-XG.
Product details
Brand
Ubiquiti
Model / SKU
AF60-XG
Product type
Multi-gigabit point-to-point bridge
Maximum link range
4+ km
Wireless performance
Primary band
60 GHz
Backup band
5 GHz
60 GHz throughput
3.8 Gbps; up to 6 Gbps with channel bonding
5 GHz maximum rate
866.6 Mbps
Certification
Terragraph-certified
Hardware and interfaces
Processor
Quad-core Arm Cortex-A72, 1.6 GHz
Memory
2 GB DDR4
Ethernet
1 x Gigabit Ethernet RJ45
Optical interface
1 x 1/10G SFP+
Power and management
Power method
Passive PoE
Maximum power consumption
31.2 W
Included PoE adapter
48V, 0.65A
Management
UISP
Setup aids
Integrated GPS and Bluetooth
Physical

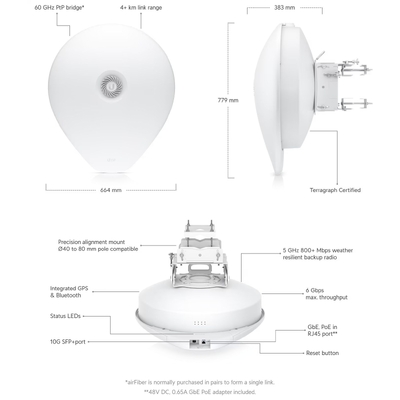

Dimensions
779 x 664 x 383 mm
Weight without mount
8.6 kg
Weight with mount
13 kg
Pole compatibility
Dia. 40-80 mm
Mounting
Precision alignment kit
Security
Wireless security
WPA2
Warranty
Manufacturer warranty
2 years Ubiquiti manufacturer warranty
Authorised reseller
DeviceDeal
SKU
AF60-XG
Barcode #
810010076090
Brand
Ubiquiti
Shipping Weight
13.0000kg
Shipping Width
0.383m
Shipping Height
0.779m
Shipping Length
0.664m
2 YearsUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AF60-XG is backed by a 2-year Ubiquiti manufacturer warranty.
Warranty support is provided in accordance with Ubiquiti's warranty terms and conditions.
