Zebra DS457 FIXED MOUNT SE4500 SR FOCUS DL PARSING SERIALUSB - DS457-DL20004ZZWW
Model # DS457-DL20004ZZWW
-
SKU: DS457-DL20004ZZWW
- Pick Up Available
- Australian Warranty
- Checkout Securely

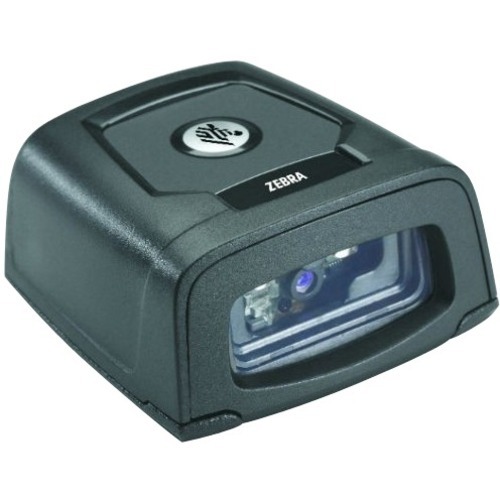

Zebra DS457-DL Fixed-Mount 1D/2D Imager with DL Parsing Serial/USB
A compact black fixed-mount imager identified with driver-licence parsing and Serial/USB wording for 1D and 2D barcode capture.
Product overview
Compact fixed-mount capture with DL identification
The Zebra DS457-DL20004ZZWW is identified as a compact fixed-mount imager with DL parsing and Serial/USB wording in the supplied product name.
The approved page describes 1D, 2D and direct-part-mark capture from paper labels, etched surfaces and mobile or computer displays. Presentation and trigger-activated modes are both stated, along with omni-directional scanning and a central aiming dot.
Its supplied dimensions are 58.4 mm long, 62 mm wide and 29.2 mm high, with an approximate weight of 110.6 g and a black finish.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU | DS457-DL20004ZZWW |
| Product model | DS457-DL |
| Product type | Fixed-mount barcode scanner |
| Product-name interface wording | Serial/USB |
| Connectivity | Cable |
| Image sensor | Imager |
| Scanning capability | 1D and 2D |
| Additional narrative capture | Direct part marks |
| Barcode groups listed | All major 1D; PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode; listed postal codes |
| Approximate weight | 110.6 g |
| Dimensions | 58.4 mm L × 62 mm W × 29.2 mm H |
| Colour | Black |
| Shipping weight as supplied | 0.1500 kg |
Helpful answers
Frequently asked questions
Is this a fixed-mount scanner?
Yes. Fixed Mount is stated in the specification area.
What barcode groups are listed?
The page lists major 1D barcodes, several 2D formats and postal codes.
What are the supplied dimensions?
58.4 mm long, 62 mm wide and 29.2 mm high.
Why is the SR paragraph excluded?
This SKU is identified as DS457-DL, but the final model paragraph describes DS457-SR.
(DS457-DL20004ZZWW)
Miscellaneous
| Environmentally Friendly | Yes |
Technical Information
| Barcode Symbology Supported |
1D: Postal Codes:
|
| Connectivity Technology | Cable |
| Image Sensor Type | Imager |
| Scanning Capability | 1D |
| 2D |
Physical Characteristics
| Weight (Approximate) | 110.6 g |
| Form Factor | Fixed Mount |
| Length | 58.4 mm |
| Height | 29.2 mm |
| Width | 62 mm |
| Product Color | Black |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | DS457-DL20004ZZWW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS457-DL |
| Product Name | DS457 Series Next-Generation Fixed Mount Imager |
| Brand Name | Zebra |
| SKU | DS457-DL20004ZZWW |
| Brand | ZEBRA |
| Shipping Weight | 0.1500kg |
