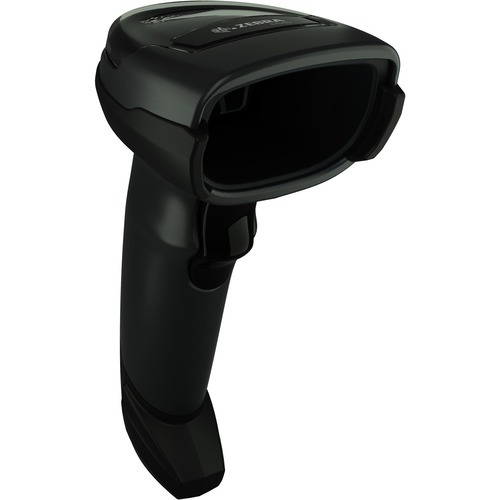

Zebra DS4608 Barcode Scanner Handheld With Stand 2D USB
Model # DS4608-SR7U2100AZW
-
SKU: DS4608-SR7U2100AZW
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS4608-SR Standard-Range 1D/2D USB Barcode Scanner Kit
A Twilight Black corded standard-range imager kit with USB cable support for 1D, 2D and supplied OCR formats.
Product overview
Standard-range retail scanning with supplied USB specifications
The Zebra DS4608-SR7U2100AZW is identified as a corded standard-range DS4608 barcode scanner kit in Twilight Black.
The approved page lists 1D and 2D barcode formats together with OCR-A, OCR-B, MICR and US Currency. It also states UPC capture at up to 28 inches, while the specification table lists a 710 mm scanning-distance value.
A multi-interface host connection, included USB cable, IP52 rating and multiple 1.8 m drops to concrete are supplied.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS4608-SR7U2100AZW |
| Product model | DS4608 |
| Product series | DS4600 |
| Product type | Barcode scanner kit |
| Scanner range | Standard range |
| Scanning capability | 1D and 2D |
| OCR formats listed | OCR-A, OCR-B, MICR and US Currency |
| Connectivity | Cable |
| Host interface | Multi-interface |
| Cable included | USB |
| Scanning distance as supplied | 710 mm |
| UPC capture distance stated in narrative | Up to 28 in. |
| Image sensor | Imager |
| Drop specification | Multiple drops at 6 ft. / 1.8 m to concrete |
| Ingress protection | IP52 |
| Field of view | 36° horizontal; 23° vertical |
| Reading angles | 60° skew; 60° pitch; 360° roll |
| Minimum print contrast | 15% |
| Applications stated | Retail, industrial, hospitality and inventory |
| Dimensions | 165.1 × 66 × 99.1 mm |
| Approximate weight | 161.9 g |
| Colour | Twilight Black |
Helpful answers
Frequently asked questions
What scanning range is listed?
The product is identified as standard range, with a 710 mm scanning-distance value.
Which barcode types are supported?
The approved page lists 1D and 2D formats plus supplied OCR formats.
Is a USB cable included?
Yes. USB is listed as the included cable type.
Is the stand confirmed in the kit?
No. The title says with stand, but the supplied specification block does not confirm a stand.
(DS4608-SR7U2100AZW)
Interfaces/Ports
| Host Interface | Multi-interface |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Cable |
| Scanning Distance | 710 mm |
| Scanner Range | Standard Range |
| Drop Specification | Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 36° |
| Field of View (Vertical) | 23° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
Miscellaneous
| Application/Usage | Retail |
| Industrial | |
| Hospitality | |
| Inventory | |
| Ingress Protection (IP) Rating | IP52 |
Physical Characteristics
| Weight (Approximate) | 161.9 g |
| Form Factor | Handheld |
| Height | 165.1 mm |
| Width | 66 mm |
| Depth | 99.1 mm |
| Product Color | Twilight Black |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS4608-SR7U2100AZW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS4608 |
| Product Name | DS4608 Barcode Scanner Kit |
| Product Series | DS4600 |
| Brand Name | Zebra |
| SKU | DS4608-SR7U2100AZW |
| Brand | ZEBRA |
| Shipping Weight | 0.4800kg |
| Shipping Width | 0.014m |
| Shipping Height | 0.024m |
| Shipping Length | 0.019m |
