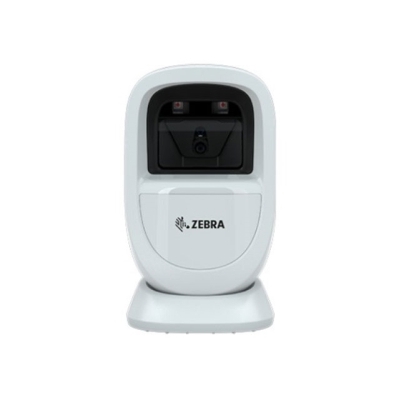

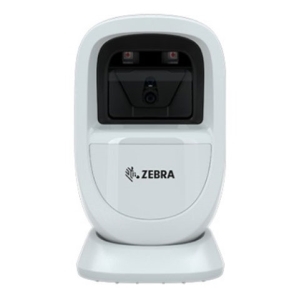

Zebra DS9308-SR Corded 1D/2D Presentation Barcode Scanner White
A compact Alpine White standard-range presentation imager for corded desktop scanning.
Product overview
Compact presentation scanning in Alpine White
The Zebra DS9308-SR0000WZZWW is an Alpine White DS9300 Series presentation scanner with a compact desktop form factor and a 45-degree cable-connector design described for limited counter space.
The supplied content lists 1D and 2D barcode capture from labels and screens, a megapixel imager, PRZM Intelligent Imaging, adaptive LED illumination and Intelligent Document Capture for A6 or smaller documents.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS9308-SR0000WZZWW |
| Product model | DS9308 |
| Product series | DS9300 |
| Product type as supplied | Barcode scanner kit |
| Supply description | Scanner only; separate kit contents not listed |
| Connectivity | Cable |
| Scanning capability | 1D and 2D |
| Barcode formats mentioned | High-density codes; phone-displayed codes; DotCode; dotted DataMatrix; Digimarc |
| Scanning distance as supplied | 223.52 mm |
| Image formats | BMP; TIFF; JPEG |
| Field of view | 52° horizontal; 33° vertical |
| Reading angles | 60° skew; 60° pitch; 360° roll |
| Maximum ambient light | 107,700 lux |
| Minimum print contrast | 15% |
| Drop specification | Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete |
| Ingress protection rating | IP52 |
| Form factor | Desktop |
| Dimensions | 145 × 86 × 83 mm (H × W × D) |
| Approximate weight | 318 g |
| Colour | Alpine White |
| Applications listed | Retail; Quick Service Restaurant; transportation; hospitality |
| Shipping weight as supplied | 0.4300 kg |
Helpful answers
Frequently asked questions
Is this a presentation scanner?
Yes. The supplied product information identifies a DS9308 hands-free desktop scanner.
Does it capture both 1D and 2D barcodes?
Yes. Both capabilities are listed.
What protection rating is supplied?
IP52 is listed.
Is this scanner-only or a kit?
The page says scanner only but also classifies it as a kit, without listing separate kit contents. Confirmation is required.
(DS9308-SR0000WZZWW)
Interfaces/Ports
| Host Interface | EAS |
| Keyboard Wedge | |
| Serial | |
| USB |
Technical Information
| Barcode Symbology Supported |
|
| Display Screen | Yes |
| Connectivity Technology | Cable |
| Scanning Distance | 223.52 mm |
| Image Formats | BMP |
| TIFF | |
| JPEG | |
| Drop Specification |
Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete |
| Image Sensor Type | Imager |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 52° |
| Field of View (Vertical) | 33° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107700 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (Code 39) | 0.08 mm |
| Minimum Element Resolution (DataMatrix) | 0.13 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
Miscellaneous
| Application/Usage | Retail |
| Quick Service Restaurant (QSR) | |
| Transportation | |
| Hospitality | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP52 |
Physical Characteristics
| Weight (Approximate) | 318 g |
| Form Factor | Desktop |
| Height | 145 mm |
| Width | 86 mm |
| Depth | 83 mm |
| Product Color | Alpine White |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS9308-SR0000WZZWW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS9308 |
| Product Name | DS9308 Hands-Free Scanner |
| Product Series | DS9300 |
| Brand Name | Zebra |
| SKU | DS9308-SR0000WZZWW |
| Brand | ZEBRA |
| Shipping Weight | 0.4300kg |
| Shipping Width | 0.009m |
| Shipping Height | 0.019m |
| Shipping Length | 0.012m |
