Zebra RS5100 RING SCANNER SE4710 STD BATT SINGLE TRIGGER IN - RS51B0-LBSNWR
Model # RS51B0-LBSNWR
-
SKU: RS51B0-LBSNWR
Don't pay: $1,700.00
$1,277.00
SAVE $423.00 (25%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

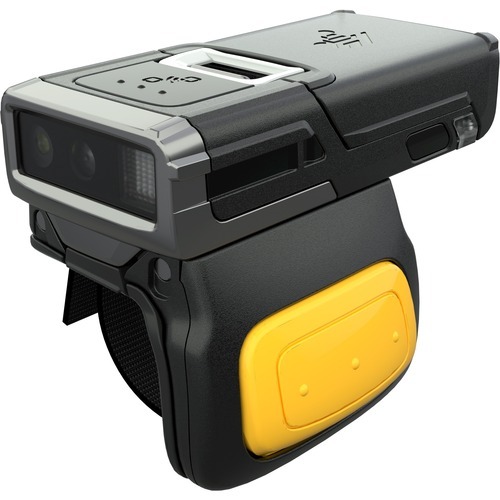

Zebra RS5100 SE4710 Bluetooth Ring Scanner with Standard Battery
A wearable 1D/2D Bluetooth ring scanner with SE4710 scan engine, single-trigger configuration, standard removable Li-ion battery, IP65 rating and NFC pairing wording.
Product overview
Bluetooth ring scanning with a removable standard battery
The Zebra RS5100 is supplied as a small, low-profile wearable ring scanner with a single trigger, SE4710 scan engine and standard battery. Its Bluetooth design removes the cable to the host device and supports wearing on the right or left hand, finger, back of hand or lanyard as described at family level.
The standard removable PowerPrecision+ battery is supplied with figures of 12 hours and 14,400 scans per charge. NFC tap-to-pair is described for compatible Zebra devices, while multiple rear LEDs can provide directional workflow guidance.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU | RS51B0-LBSNWR |
| Product model | RS5100 |
| Product type | Bluetooth wearable ring scanner |
| Scan engine | SE4710 |
| Scanner range | Standard Range |
| Scanning capability | 1D and 2D |
| Scan pattern | Omnidirectional |
| Trigger configuration | Single trigger |
| Connectivity | Wireless; Bluetooth |
| Bluetooth range as supplied | Class 1; up to 300 ft / 91.44 m from host |
| Pairing wording | NFC tap-to-pair with compatible Zebra devices |
| Battery | Standard removable Li-ion PowerPrecision+ battery |
| Standard-battery figure | 12 hours; 14,400 scans per charge |
| Drop specification | Multiple 1.8 m / 6 ft drops to concrete across the operating-temperature range |
| Ingress rating | IP65 |
| Weight as supplied | 70 g |
| Dimensions | 61 × 28 × 21 mm |
| Colour as supplied | Silver; Black |
| Manufacturer-warranty duration | Not supplied |
Helpful answers
Frequently asked questions
Which scan engine is fitted?
The supplied scan engine is SE4710 with 1D and 2D capability.
How long does the standard battery last?
The supplied family figure is 12 hours and 14,400 scans per charge.
How does it pair with a host?
The page describes Class 1 Bluetooth and NFC tap-to-pair with compatible Zebra devices.
What rugged ratings are listed?
The supplied ratings include IP65 and multiple 1.8 m drops to concrete.
(RS51B0-LBSNWR)
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
Network & Communication
| Bluetooth | Yes |
Power Description
| Power Source | Battery |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | RS51B0-LBSNWR |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | RS5100 |
| Product Name | RS5100 Bluetooth Ring Scanner |
| Brand Name | Zebra |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Wireless |
| Light Source | Laser |
| Scanner Range | Standard Range |
| Drop Specification | Multiple 6 ft./1.8 m drops to concrete over the operating temperature range |
| Scan Pattern | Omni-directional |
| Scan Engine Model | SE4710 |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Minimum Element Resolution (Code 39) | 0.10 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.13 mm |
Physical Characteristics
| Weight (Approximate) | 70 g |
| Form Factor | Wearable |
| Length | 61 mm |
| Width | 28 mm |
| Depth | 21 mm |
| Product Color | Silver |
| Black | |
| Rugged | Yes |
Miscellaneous
| Application/Usage | Retail |
| Distribution | |
| Logistics | |
| Transportation | |
| Manufacturing | |
| Hospitality | |
| Warehouse | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP65 |
| SKU | RS51B0-LBSNWR |
| Brand | ZEBRA |
| Shipping Weight | 0.3000kg |
