Zebra RS5100 RING SCANNER SE4770 STANDARD BATTERY SINGLE TRIGGER TOP TRIGGER NO USB WORLDWIDE GS1-GIAI SUPPORT - RS51B0-TBSNWR04
Model # RS51B0-TBSNWR04
-
SKU: RS51B0-TBSNWR04
- Pick Up Available
- Australian Warranty
- Checkout Securely

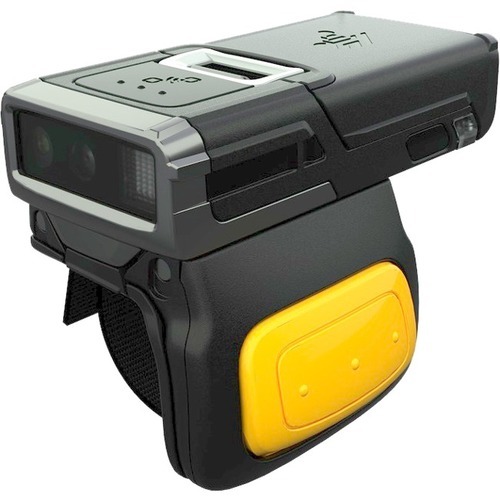

Zebra RS5100 Top-Trigger Bluetooth Wearable Scanner with GS1-GIAI Support
A worldwide RS5100 wireless wearable-scanner configuration with standard battery, single top-mounted trigger, no USB, GS1-GIAI support, IP65 rating and a one-year limited warranty.
Product overview
Top-trigger wearable scanning with a source engine conflict
The Zebra RS5100 is supplied in this configuration with a standard battery, single top-mounted trigger, no USB and GS1-GIAI support. The top-mounted trigger is described as allowing the scanner to rotate to the side of the finger, reducing protrusion above the hand.
The family narrative describes five interchangeable wearing styles, Bluetooth cordless operation, programmable rear LEDs and personal trigger assemblies. These other mounting accessories are described as options and are not presented as included package contents for this SKU.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU | RS51B0-TBSNWR04 |
| Product model | RS5100 |
| Product type | Bluetooth wearable barcode scanner |
| Scan engine in catalogue name | SE4770 |
| Scan engine in technical table | SE4710 |
| Scanning capability | 1D and 2D |
| Trigger configuration | Single top-mounted trigger |
| Battery configuration | Standard battery |
| Connectivity | Wireless; Bluetooth |
| USB wording | No USB |
| Additional support wording | GS1-GIAI |
| Scan pattern | Not supplied |
| Drop specification | Multiple 1.8 m / 6 ft drops to concrete across the operating-temperature range |
| Ingress rating | IP65 |
| Weight as supplied | 70 g |
| Dimensions | 61 × 28 × 21 mm |
| Packaged quantity | 1 |
| Manufacturer warranty as supplied | 1-year limited warranty |
| Other mounting accessories | Not confirmed as included |
Helpful answers
Frequently asked questions
Which scan engine is supplied?
The source conflicts: the catalogue name says SE4770, while the technical table says SE4710. This must be confirmed before publication.
Which trigger style is identified?
The supplied product name identifies a single top-mounted trigger.
Does it include USB?
No. The product name explicitly says No USB.
What warranty is listed?
The supplied limited warranty is one year.
(RS51B0-TBSNWR04)
Network & Communication
| Bluetooth | Yes |
Warranty
| Limited Warranty | 1 Year |
Physical Characteristics
| Weight (Approximate) | 70 g |
| Form Factor | Wearable |
| Length | 61 mm |
| Width | 28 mm |
| Depth | 21 mm |
| Rugged | Yes |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Wireless |
| Drop Specification | Multiple 6 ft./1.8 m drops to concrete over the |
| Image Sensor Type | Imager |
| Scan Engine Model | SE4710 |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Minimum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Minimum Element Resolution (DataMatrix) | 0.25 mm |
| Minimum Element Resolution (PDF417) | 0.13 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | RS51B0-TBSNWR04 |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Packaged Quantity | 1 |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | RS5100 |
| Product Name | RS5100 Bluetooth Wearable Scanner |
| Brand Name | Zebra |
Miscellaneous
| Application/Usage | Packing |
| Picking | |
| Sorting | |
| Field Sales/Service | |
| Inventory | |
| Hospitality | |
| Manufacturing | |
| Transportation | |
| Logistics | |
| Retail | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| REACH | |
| Ingress Protection (IP) Rating | IP65 |
| SKU | RS51B0-TBSNWR04 |
| Brand | ZEBRA |
| Shipping Weight | 3.0000kg |
