Zebra Barcode Scanner DS3608-ER Rugged Green Vibration Motor USB Kit
Model # DS3608-ER3U4602ZVW
-
SKU: DS3608-ER3U4602ZVW
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS3608-ER Ultra-Rugged Extended-Range 1D/2D USB Scanner Kit

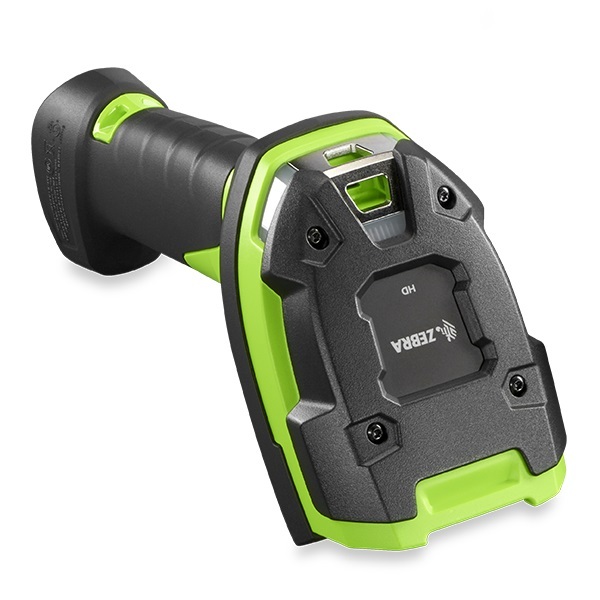

An Industrial Green and black corded DS3608-ER extended-range scanner kit with vibration motor and shielded high-current USB cable.
Product overview
Extended-range rugged corded scanning kit
The Zebra DS3608-ER3U4602ZVW kit is identified with a DS3608-ER20003VZWW scanner and CBA-U46-S07ZAR shielded high-current USB cable. The approved specifications list cable connectivity, extended-range omnidirectional 1D/2D scanning and USB, serial and keyboard-wedge host interfaces.
The page states multiple 2.4 m drops to concrete, IP67 scanner protection, a 5.5 V DC input and a rugged handheld body for manufacturing, industrial and warehouse applications.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS3608-ER3U4602ZVW |
| Product model | DS3608-ER |
| Product series | 3600 |
| Product type | Barcode scanner kit |
| Scanner included | DS3608-ER20003VZWW |
| Cable included | CBA-U46-S07ZAR shielded USB high-current cable |
| Scanner range | Extended range |
| Scanning capability | 1D and 2D |
| Scan pattern | Omnidirectional |
| Connectivity | Cable |
| Host interfaces | USB, serial and keyboard wedge |
| Input voltage | 5.5 V DC |
| Image sensor | Imager |
| Drop specification | Multiple drops from 2.4 m to concrete |
| Ingress protection as clarified by page note | Scanner: IP67; cradle: IP65 |
| Field of view | 32° horizontal; 20° vertical |
| Reading angles | 60° skew; 60° pitch; 360° roll |
| Maximum ambient light | 107,639 lux |
| Minimum print contrast | 25% |
| Dimensions | 185.4 × 76.2 × 132.1 mm |
| Weight | 334.5 g |
| Colours | Industrial Green and Black |
| Applications stated | Manufacturing, industrial and warehouse |
Helpful answers
Frequently asked questions
Is this the extended-range model?
Yes. The product model is DS3608-ER and Extended Range is listed.
What does the kit include?
The supplied title lists a DS3608-ER20003VZWW scanner and CBA-U46-S07ZAR shielded high-current USB cable.
What ruggedness details are stated?
Multiple 2.4 m drops and IP67 scanner protection are listed.
Why is the HD narrative excluded?
It refers to DS3608-HD/DS3678-HD high-density models, while this SKU is the DS3608-ER extended-range model.
(DS3608-ER3U4602ZVW)
Power Description
| Input Voltage | 5.5 V DC |
| Power Source | DC |
Interfaces/Ports
| Host Interface | USB |
| Serial | |
| Keyboard Wedge |
Technical Information
| Barcode Symbology Supported |
1D: 2D: Digimarc: IUID Support: |
| Connectivity Technology | Cable |
| Scanner Range | Extended Range |
| Drop Specification | Withstands multiple 8.0 ft./2.4 m drops to concrete |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 32° |
| Field of View (Vertical) | 20° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (DataMatrix) | 0.19 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
Miscellaneous
| Application/Usage | Manufacturing |
| Industrial | |
| Warehouse | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP67 |
| IP65 |
General Information
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | DS3608-ER3U4602ZVW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS3608-ER |
| Product Name | DS3608-ER Handheld Barcode Scanner |
| Product Series | 3600 |
| Brand Name | Zebra |
Physical Characteristics
| Weight (Approximate) | 334.5 g |
| Form Factor | Handheld |
| Height | 185.4 mm |
| Width | 76.2 mm |
| Depth | 132.1 mm |
| Product Color | Industrial Green |
| Black | |
| Rugged | Yes |
| SKU | DS3608-ER3U4602ZVW |
| Brand | ZEBRA |
| Shipping Weight | 0.5400kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.090m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.002079000m3 |
Manufacturer warranty: 36 Month Warranty
