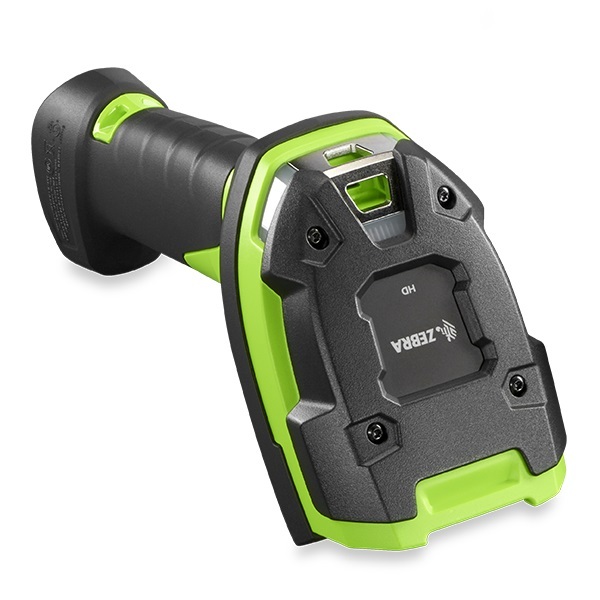

View PDF BrochureZebra Barcode Scanner DS3678-ER (Scanner Only)
Model # DS3678-ER2F003VZWW
-
SKU: DS3678-ER2F003VZWW
- Pick Up Available
- Australian Warranty
- Checkout Securely
Zebra DS3678-ER Ultra-Rugged Cordless Extended-Range 1D/2D Scanner FIPS
An Industrial Green cordless extended-range area imager with Bluetooth, battery power, vibration feedback and FIPS identification.
Product overview
Cordless extended-range scanner with detailed supplied specifications
The Zebra DS3678-ER2F003VZWW is identified as a cordless extended-range handheld barcode scanner in Industrial Green with FIPS and a vibration motor.
The approved specifications list wireless Bluetooth operation, lithium-ion battery power, omnidirectional 1D and 2D imaging, multiple 2.4 m drops to concrete and an IP67 scanner rating.
The supplied symbology list includes common 1D formats, PDF417, Micro PDF417, Composite Codes, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, postal codes and DotCode, plus Digimarc digital watermark technology and IUID parsing support.
Product details
Technical specifications
| Supplied product information | |
|---|---|
| Brand | Zebra |
| SKU / manufacturer part number | DS3678-ER2F003VZWW |
| Product model | DS3678-ER |
| Product series | 3600 |
| Product type | Cordless extended-range barcode scanner |
| Scanning capability | 1D and 2D |
| Scanner range | Extended range |
| Scan pattern | Omnidirectional |
| Connectivity | Wireless Bluetooth |
| Power source | Battery |
| Battery chemistry | Lithium-ion |
| Image sensor | Imager |
| Drop specification | Multiple 8 ft. / 2.4 m drops to concrete |
| Ingress protection | Scanner: IP67; cradle family: IP65 |
| Field of view | 32° horizontal; 20° vertical |
| Reading angles | 60° skew; 60° pitch; 360° roll |
| Maximum ambient light | 107,639 lux |
| Minimum print contrast | 25% |
| DataMatrix element resolution | 0.25 mm minimum; 5.08 mm maximum |
| Dimensions | 185.4 × 76.2 × 142.2 mm |
| Weight | 436 g |
| Colour | Industrial Green |
| Additional information | USB cable separate |
| Applications stated | Manufacturing, industrial and warehouse |
Helpful answers
Frequently asked questions
Is this the extended-range model?
Yes. The approved specification table identifies DS3678-ER and Extended Range.
Does it use Bluetooth?
Yes. Bluetooth and wireless connectivity are listed.
What ruggedness details are stated?
Multiple 2.4 m drops and IP67 scanner protection are listed.
Is a USB cable included?
The scanner-only page states that the USB cable is separate.
(DS3678-ER2F003VZWW)
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
Network & Communication
| Bluetooth | Yes |
Power Description
| Power Source | Battery |
Miscellaneous
| Additional Information | USB Cable separate |
| Application/Usage | Manufacturing |
| Industrial | |
| Warehouse | |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP67 |
| IP65 |
Technical Information
| Barcode Symbology Supported |
1D: 2D: Digimarc: IUID Support: |
| Connectivity Technology | Wireless |
| Scanner Range | Extended Range |
| Drop Specification | Withstands multiple 8.0 ft. /2.4 m drops to concrete |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 32° |
| Field of View (Vertical) | 20° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (DataMatrix) | 5.08 mm |
Physical Characteristics
| Weight (Approximate) | 436 g |
| Form Factor | Handheld |
| Height | 185.4 mm |
| Width | 76.2 mm |
| Depth | 142.2 mm |
| Product Color | Industrial Green |
| Rugged | Yes |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | DS3678-ER2F003VZWW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Packaged Quantity | 1 |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS3678-ER |
| Product Name | DS3678-ER Handheld Barcode Scanner |
| Product Series | 3600 |
| Brand Name | Zebra |
| SKU | DS3678-ER2F003VZWW |
| Brand | ZEBRA |
| Shipping Weight | 0.5300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001050000m3 |
Manufacturer warranty: 36 Month Warranty
