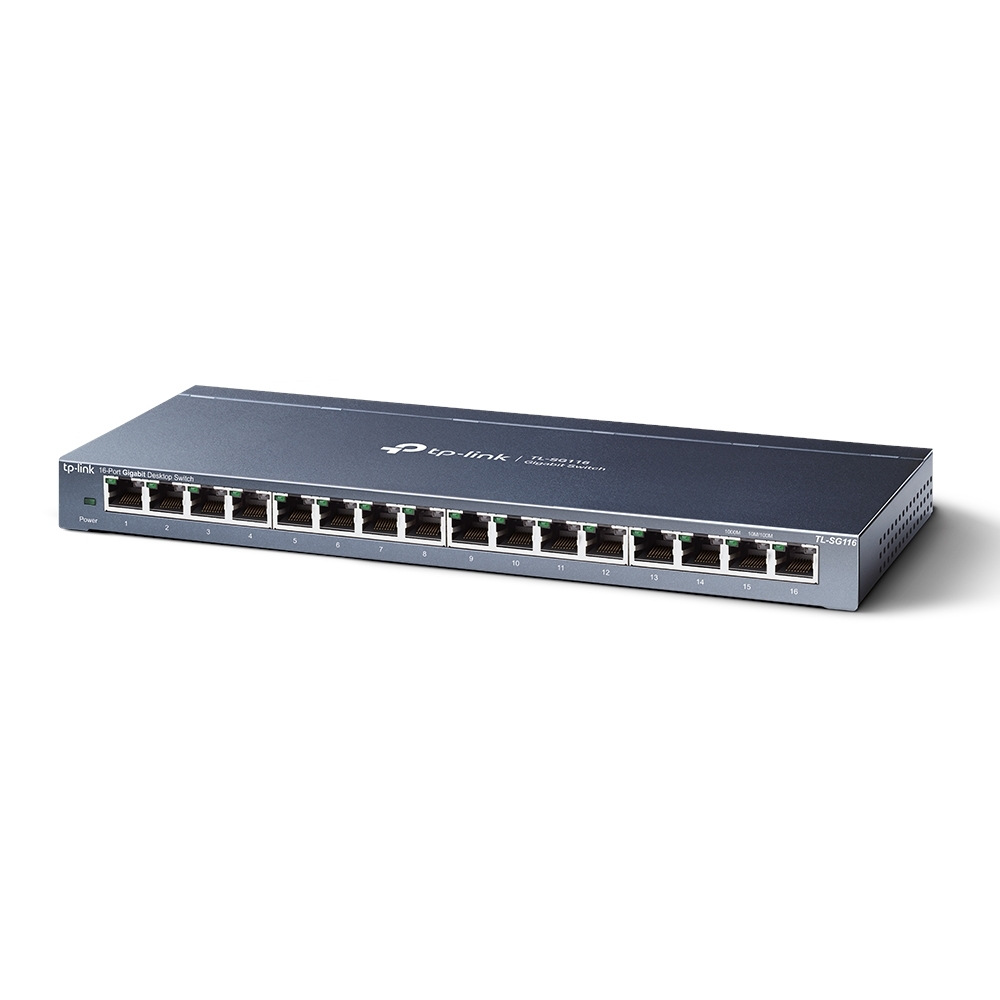

16-Port Gigabit Desktop SwitchTL-SG116

  • 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS and IGMP Snooping function
  • Plug and play, with no configuration needed

What This Product Does

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

(TL-SG116)

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
Power Consumption Maximum: 10.0W
External Power Supply External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
PERFORMANCE
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 10KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents 16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing



SKU TL-SG116
Barcode # 6935364084325
Brand TP-LINK
Shipping Weight 1.3300kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.412m
Shipping Cubic 0.004903000m3
