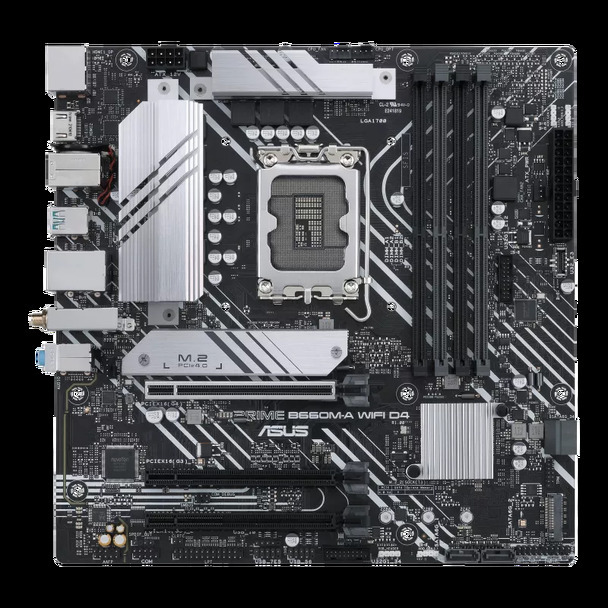

ASUS INTEL B660 mATX motherboard DDR4 WIFI (PRIME-B660M-A-WIFI-D4)
MODEL # 90MB1AE0-M0UAY0
-
SKU: 90MB1AE0-M0UAY0
- Pick Up Available
- Australian Warranty
- Checkout Securely
(90MB1AE0-M0UAY0)
Specifications
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| Chipset | Intel® B660 Chipset |
| Form Factor | microATX 24.4cm x 24.4cm |
| I/O Connectors | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Integrated CPU Graphics | 1 x DisplayPort** 2 x HDMI® ports*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. |
| LAN | 1 x Intel® 1Gb Ethernet |
| Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| PCI Slots | Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset * 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) *Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
| Processor Support | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Raid | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Socket | LGA1700 |
| Storage Interface | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| Warranty | 3 Years |
| Weight | |
| Wireless & Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| SKU | 90MB1AE0-M0UAY0 |
| Brand | ASUS |
| Shipping Weight | 2.0000kg |
