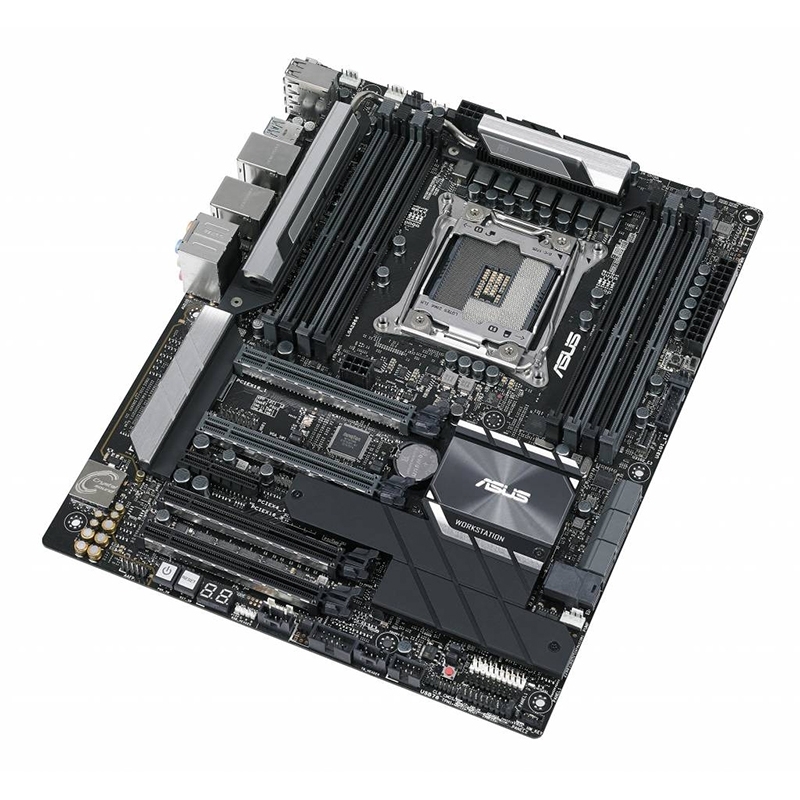

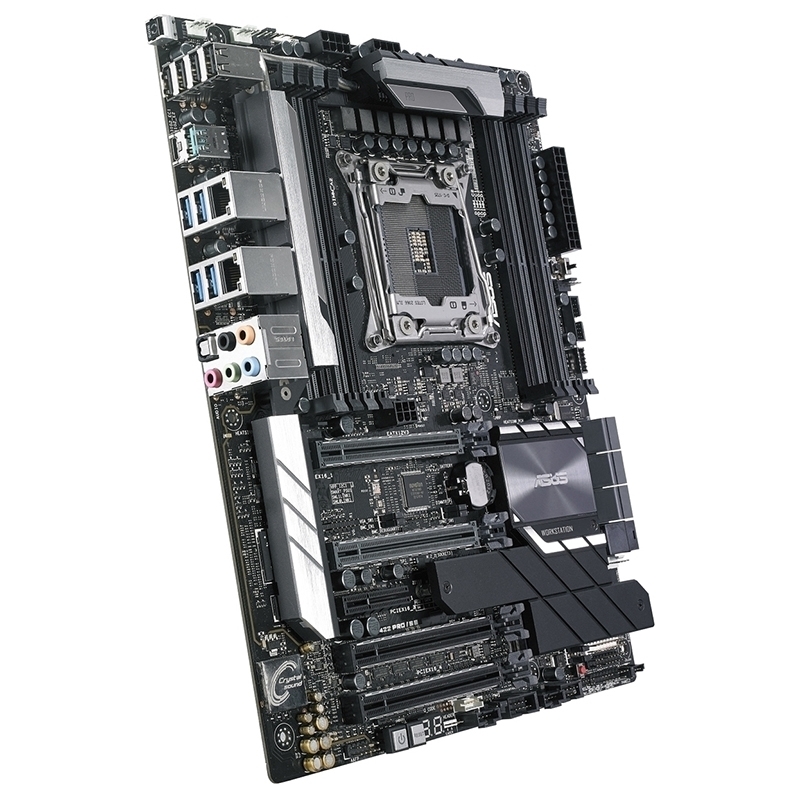

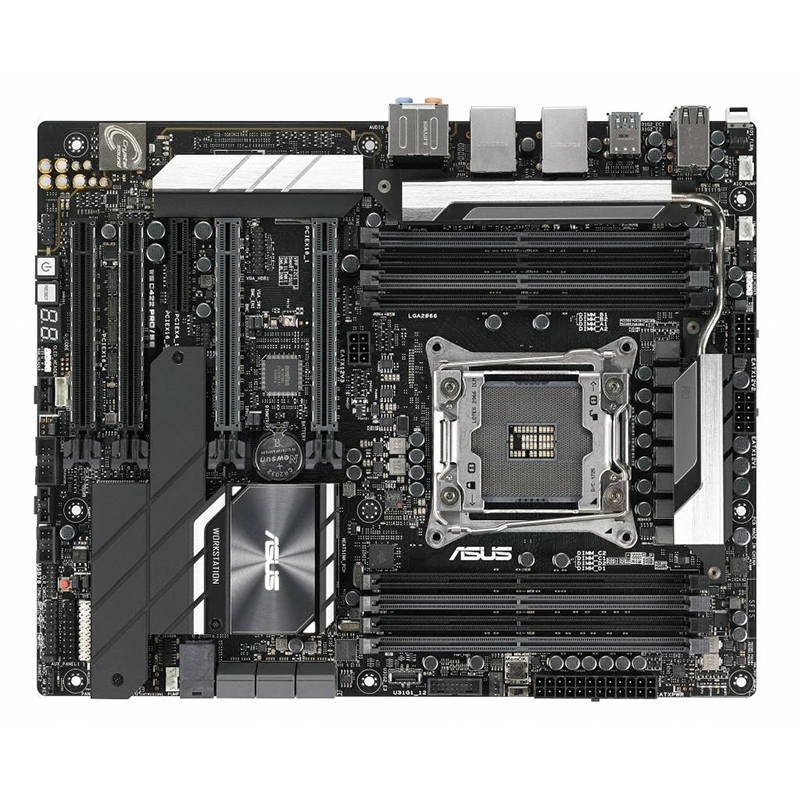

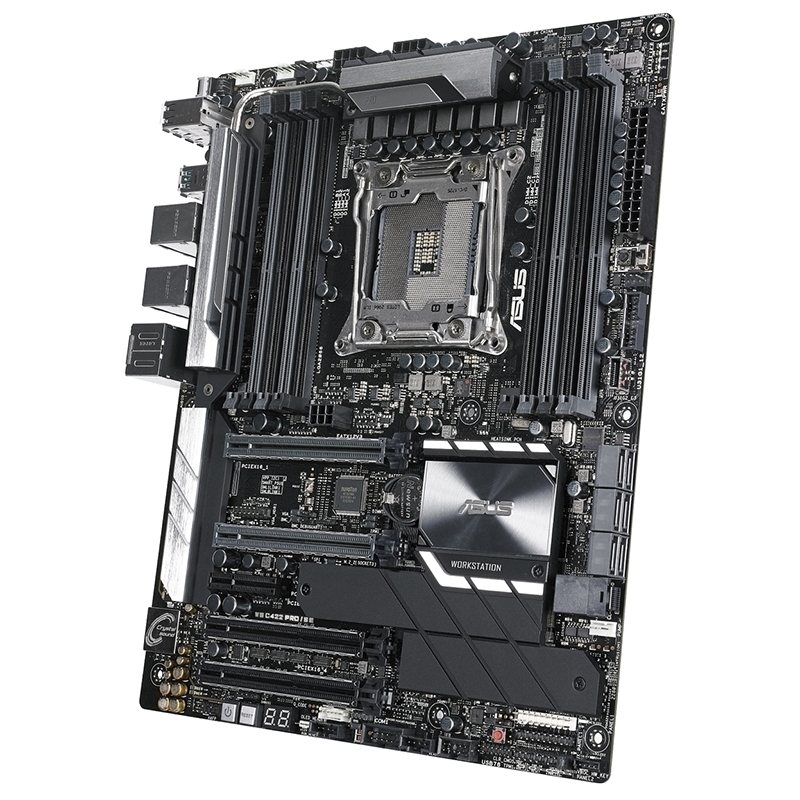

ASUS WS C422 PRO/SE LGA2066 ATX Workstation Motherboard
Model # WS C422 PRO/SE
-
SKU: WS-C422-PRO-SE
- Pick Up Available
- Australian Warranty
- Checkout Securely
ASUS WS C422 PRO/SE LGA2066 ATX Workstation Motherboard - Intel C422 chipset - 8x DIMM DDR4 (Max. 512GB) Memory - 1x PCIe X4, 2x PCIe X16 (Single at X16, dual at X8/X8), 2x PCIe X16 (X16 mode) - 6x SATA 6Gb/s ports - 2x M.2 connectors - USB Ports: 6x USB3.1 Gen. 1, 6x USB2.0 - 2x Intel I210-AT Gigabit LAN - Realtek ALC S1220A 8-Channel High Definition Audio - 3 Years Limited Warranty
(WS-C422-PRO-SE)
| Brand | ASUS |
|---|---|
| Model | WS C422 PRO/SE |
| CPU Socket Type | Socket 2066 |
|---|---|
| CPU Type | Supports Intel 14 nm CPU Supports Intel Turbo Boost Max Technology 2.0 The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Other Chipset | Build in Intel C422 |
|---|
| DDR4 Standard | DDR4 2666 / 2400 / 2133 MHz RDIMM, LR-DIMM Memory |
|---|---|
| Maximum Memory Supported | 512GB |
| Channel Supported | Quad Channel |
| Other Slots | 2 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8) 1 x PCIe 3.0 x4 (x4 mode) |
|---|
| Onboard Video Chipset | Aspeed AST2400 |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210-AT |
| Second LAN Speed | 10/100/1000Mbps |
| RJ45 | 2 x RJ45 |
|---|---|
| USB 1.1/2.0 | 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) |
| USB 3.1 | 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM 4 x USB 3.1 Gen 1 (blue) |
| Features | Storage: 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x U.2 connector Support Raid 0, 1, 10 Intel Rapid Storage Technology Enterprise supports Intel Virtual RAID (VROC) support for CPU RAID Powered by Intel Xeon W processor with ECC memory ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses Server-grade design with built-in dual Intel Gigabit LAN Next-gen transfer speeds - Up to 32 Gbps dual M.2 and U.2, plus up to 10 Gbps USB 3.1 Type-A and Type-C connections Ultimate graphics power with 2/3-Way NVIDIA SLI and AMD Crossfire X Ultra-efficient VRM heatsink - Metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance |
|---|
| SKU | WS-C422-PRO-SE |
| Barcode # | 4712900810851 |
| Brand | ASUS |
| Shipping Weight | 2.3000kg |
Manufacturer Warranty: 3 Years Limited Warranty
