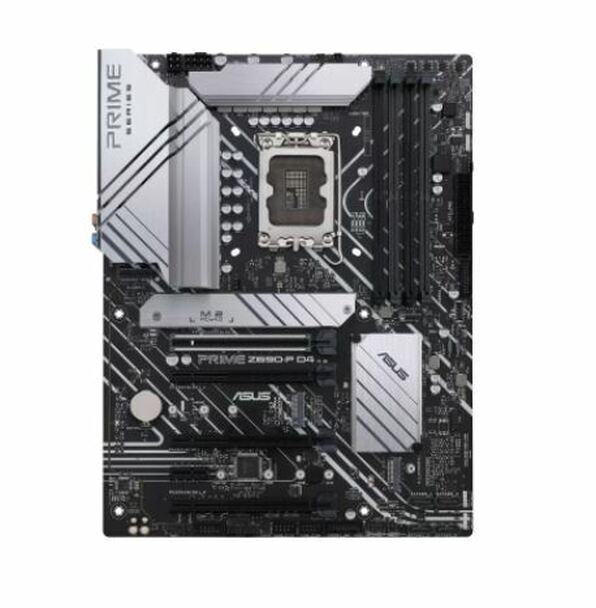

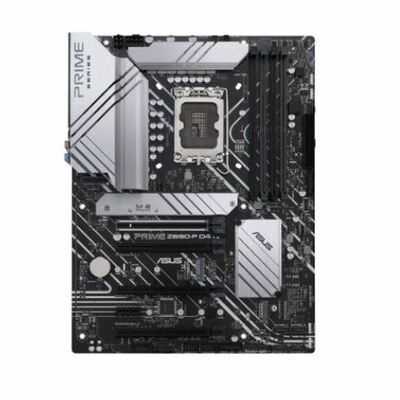

ASUS Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, three M.2 slots, 14+1 DrMOS power stages, DDR4, HDMI, DisplayPort, 2.5 Gb Ethernet

(90MB18P0-M0UAYC)

Specifications
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Chipset Z690
Form Factor ATX 30.5cm x 23.4cm
I/O Connectors 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Integrated CPU Graphics 1 x DisplayPort** 1 x HDMI® Port***, **Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
LAN 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Memory/Type/Bus/Max. 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
PCI Slots Intel® 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
Processor Support Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Raid
RAM Type/Bus/Max. 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
Socket Intel® Socket LGA1700 for 12th Gen Intel® Core™
Storage Interface NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Warranty 3 Years warranty
Weight 1.71Kgs
SKU 90MB18P0-M0UAYC
Brand ASUS
Shipping Weight 2.0000kg
Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

ASUS Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, three M.2 slots, DDR4

MODEL # 90MB18P0-M0UAYC

  • SKU: 90MB18P0-M0UAYC

$487.50
Sold Out
