• Processor / System Bus
  2 x Socket R3 (LGA 2011-3; Narrow type 56x94mm;The maximum length of the heatsink screw thread is 3.7mm.)
  Intel^® Xeon^® processor E5-2600 v4 product family
  Intel^® Xeon^® processor E5-2600 v3 product family
  QPI 6.4 / 8.0 / 9.6 GT/s
• Core Logic
  Intel® C612 PCH
• Memory
  Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
  Capacity : Maximum up to 1024GB LRDIMM
  Memory Type :
  DDR4 2400 /2133 /1866/1600/1333 RDIMM*
  DDR4 2400 /2133 /1866/1600/1333 LRDIMM*
  Memory Size :
  32GB, 16GB, 8GB, 4GB RDIMM
  64GB, 32GB LRDIMM
  * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
• Expansion Slots
  Total Slot : 1
  Slot Location 1 : PCI-E x24 (Gen3 X16 + X8 Link) *¹
• Form Factor
  Half SSI (18.04”x 6.86”)
• ASUS Features
  FAN speed control
  Rack Optimized (Dedicated for Rack)
  ASWM Enterprise
• Storage
  SATA Controller :
  Intel® C612
  6 x SATA3 6Gb/s ports
  or
  5 x SATA3 6Gb/s ports + 1 x M.2 connector *²
  Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
  (Support Software RAID 0, 1, 5, 10 )
  LSI® MegaRAID (For Linux/Windows)
  (Support Software RAID 0, 1, 10 )
  SAS Controller :
  ASUS PIKE II 3008 8-port SAS HBA card(Optional)
  ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
• Networking
  2 x Intel® I210AT + 1 x Mgmt LAN
• Graphic
  Aspeed AST2400 with 32MB VRAM
• On Board I/O
  1 x TPM header
  1 x PSU Power Connector (20-pin)
  1 x Internal A Type USB Port*³
  1 x USB 2.0 pin header , Up to 1 Devices
  4 x Fan Header , 4pin
  1 x SMBus *⁴
  1 x Chassis Intruder
  2 x Front LAN LED
  1 x Serial Port Header
  1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB
  1 x Device Power Connector

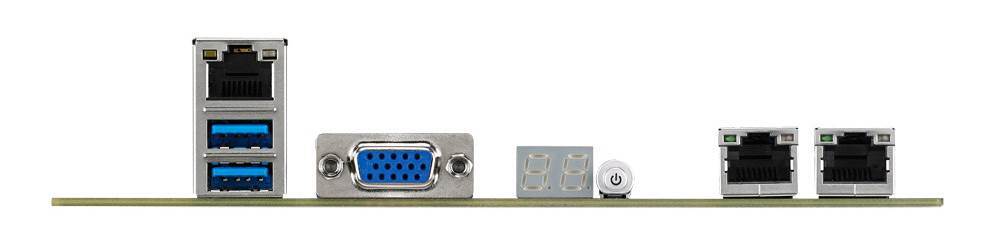

• Back I/O Ports
  2 x USB 3.1 Gen 1
  1 x VGA Port
  2 x GbE LAN
  1 x Mgmt LAN
• Management Solution
  ASWM Enterprise
  ASMB8-iKVM for KVM-over-Internet
• Environment
  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
• Weight
  Gift Box (1-in-1)
  Net Weight : 1.4 KG
  Gross Weight : 2.24 KG

  Bulk Pack (10-in-1)
  Net Weight : 13.8 KG
  Gross Weight : 16 KG
• Accessories
  Gift Box (1-in-1)
  1 x butterfly riser card
  3 x Support DVD
  1 x Cable Set

  Bulk Pack (10-in-1)
  1 x butterfly riser card
  3 x Support DVD
• Monitoring
  CPU Temperature
  Fan RPM
• Note
  * Please refer to www.asus.com for latest momory AVL
  update. 2400/2133 MT/s@1DPC only

  *1: by riser card
  1 x PCI-E x16 (X16 Gen3 Link) and 1 x PCI-E x8 (X8 Gen3
  Link)**
  ** Support InfiniBand and 10G upgrade kit (Optional)
  PEM-FDR、PEB-10G/57840-2S、PEB-10G/57811-1S
  (Riser card default ships with Z10PH-D16 motherboard)

  *2: SATA 6Gb/s & PCI-E Gen3 x4 link
  3 x SATA 6Gb/s ports switch to golden finger (for system design)

  *3: Internal A Type USB2.0 Port

  *4: Integrated in golden finger
