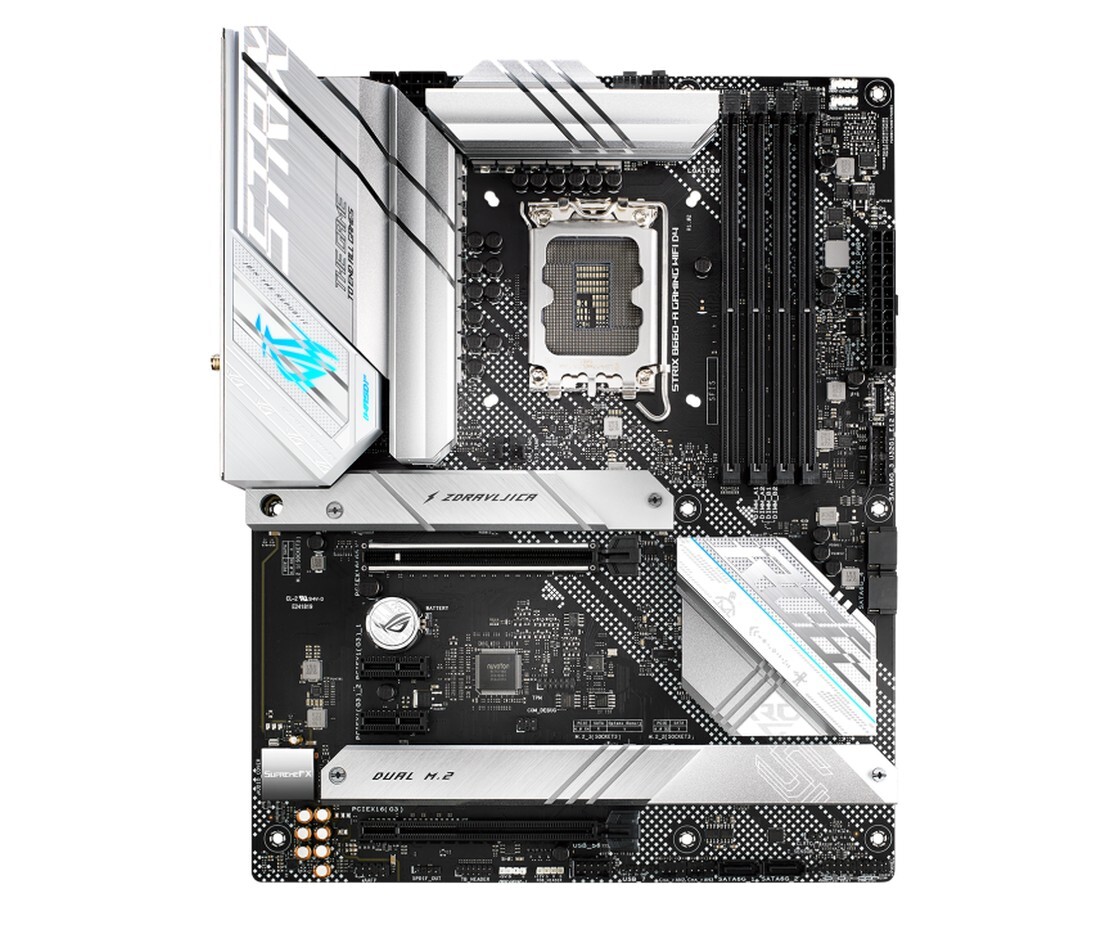

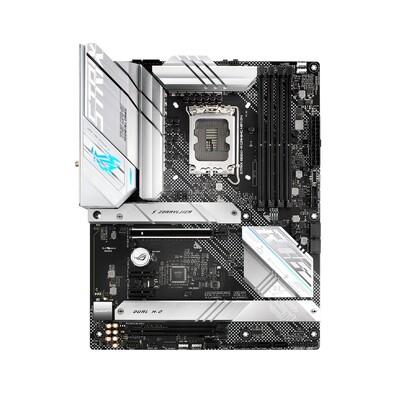

ASUS INTEL B660 (LGA 1700) ATX Gaming motherboard, WIFI, DDR4
MODEL # 90MB18S0-M0UAY0
-
SKU: 90MB18S0-M0UAY0
- Pick Up Available
- Australian Warranty
- Checkout Securely
ASUS INTEL B660 (LGA 1700) ATX Gaming motherboard, WIFI, DDR4
(90MB18S0-M0UAY0)
Specifications
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Chipset | Intel® B660 Chipset |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Integrated CPU Graphics | 1 x DisplayPort (** Support 4K@60Hz as specified in DisplayPort 1.4), 1 x HDMI® port (Support 4K@60Hz as specified in HDMI 2.1) |
| LAN | 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| PCI Slots | 1 x PCIe 5.0/4.0/3.0 x16 slot(s), 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots |
| Processor Support | Intel® Socket LGA1700 for 12th Gen Intel®Core™, Pentium® Gold and Celeron® Processors* |
| Raid | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Socket | Intel® Socket LGA1700 |
| Storage Interface | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Warranty | 3 Years |
| Weight | |
| Accessories | Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package(s) 1 x M.2 Q-Latch package(s) 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User guide |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| BIOS | 192 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Software Features | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
| USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| SKU | 90MB18S0-M0UAY0 |
| Brand | ASUS |
| Shipping Weight | 2.0000kg |
