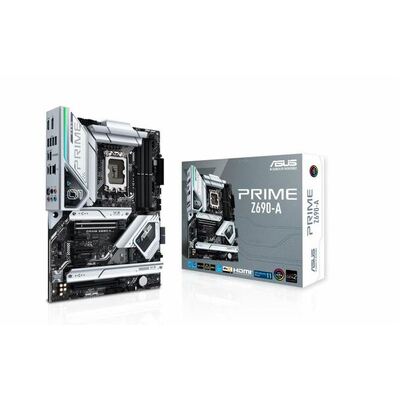

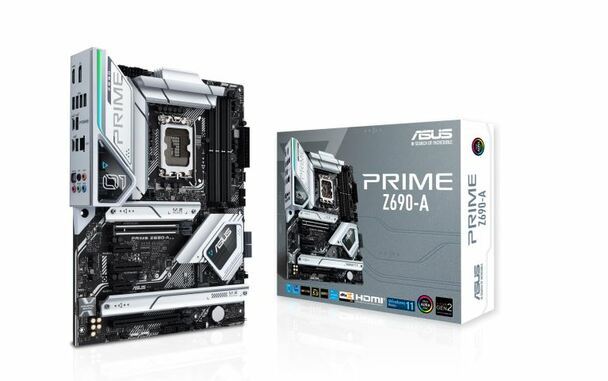

ASUS Intel Z690 (LGA 1700) ATX with PCIe 5.0, four M.2 slots, DDR5 motherboard
MODEL # 90MB18L0-M0UAY0
-
SKU: 90MB18L0-M0UAY0
- Pick Up Available
- Australian Warranty
- Checkout Securely
(90MB18L0-M0UAY0)
Specifications
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| Chipset | Z690 |
| Form Factor | ATX 30.5cm x 24.4cm |
| I/O Connectors | 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Integrated CPU Graphics | 1 x DisplayPort** 1 x HDMI® port***, ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| LAN | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Memory/Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| PCI Slots | Intel®12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots |
| Processor Support | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Raid | NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
| RAM Type/Bus/Max. | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Socket | Intel® Socket LGA1700 for 12th Gen Intel® Core™ |
| Storage Interface | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Warranty | 3 Years warranty |
| Weight | 1.9Kgs |
| SKU | 90MB18L0-M0UAY0 |
| Brand | ASUS |
| Shipping Weight | 2.0000kg |
