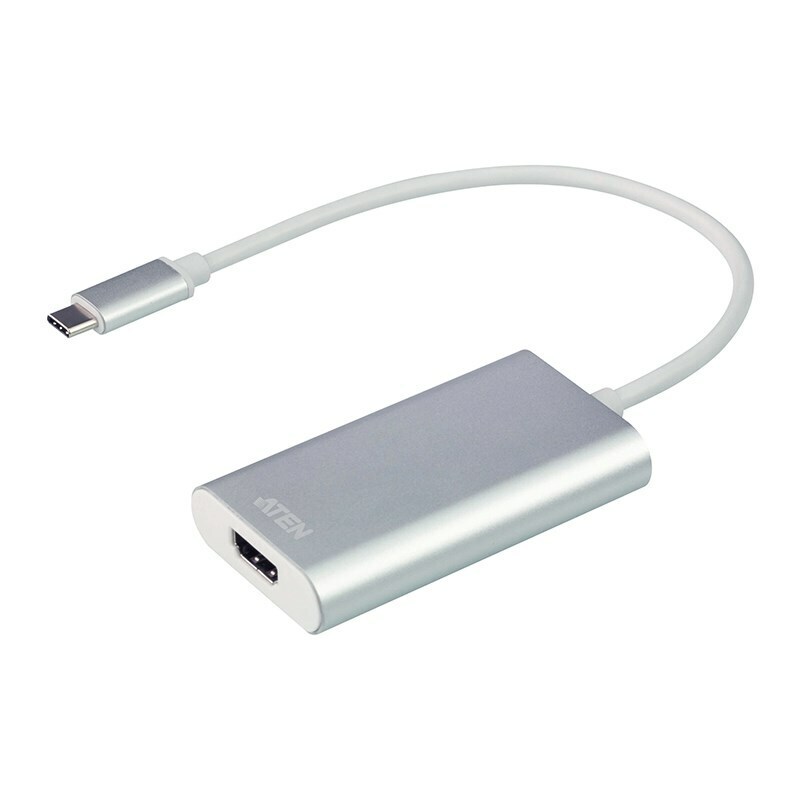

"CAMLIVE" is an HDMI UVC Video Capture device to send unencrypted HDMI video to your USB-C or Thunderbolt 3 laptop (or USB-A with the included adapter). It’s compliant with latest USB 3.1 Type-C specification.

CAMLIVE is designed to Plug & Play. Its built-in UVC and UAC standard support allows system operation without installing drivers and, at the same time, delivers eye-popping, highquality video on Windows and Mac systems at 1080/60fps. By sending captured RAW data, you can enjoy video editing or live streaming with various popular third-party video-editing software/platforms - Open Broadcaster Software (OBS), Xsplit,Twitch, YouTube, Facebook, to name a few.

Having a slim and aesthetic design, CAMLIVE provides you with an enjoyable, high-quality live streaming/video editing experience with style whether at work or on the go.

Package Contents

1x UC3020 CAMLIVE HDMI to USB-C UVC Video Capture
1x USB-C to USB-A Adapter*
1x User Instructions
* When using the adapter, if you are only detecting MJPG video, please disconnect the USB-C head from the adapter, flip the USB-C head around and reconnect it to the adapter.

Captures unencrypted HDMI video signal from camcorder or DSLR up to 1080P @ 60*
Supports live video streaming, webcasting and video conferencing
Compatible with popular streaming software, such as OBS, Xsplit, YouTube, Facebook and Twitch
Plug & Play – Supports UVC/UAC v1.1
Compatible with USB3.1 Gen1 Type-C standard
Works with all major operating systems: Windows® and OS X®

*CAMLIVE cannot display or capture HDCP protected content

Connectors
Video In	1 x HDMI Type A Female (Black)
USB Port	USB 3.1 Gen1 Type-C Male (White) or USB 3.1 Gen1 Type-A Male (via Dongle, Black )
Video Input
Compliance	HDMI 1.4b, up to 1080p@60 (non-HDCP)
Video Resolution	480P, 720P, 1080P
Audio Sampling	16-bit PCM audio, 32KHz, 44.1KHz and 48KHz
Output	Up to 1080P UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection)
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 – 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Minimum Hardware Requirements	CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more
OS Support	Windows 7 and above with UVC support Mac OS X 10.13 and above with UVC support
Physical Properties
Housing	Aluminum
Weight	0.04 kg ( 0.09 lb )
Dimensions (L x W x H)	4.20 x 7.30 x 1.40 cm (1.65 x 2.87 x 0.55 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(UC3020-AT)

Connectors
Video In	1 x HDMI Type A Female (Black)
USB Port	USB 3.1 Gen1 Type-C Male (White) (USB-C to USB-A adapter package included, Black )
Video Resolution	Video input: 1080p60, 720p60, 480p60, HDMI 1.4b support (unencrypted)
Audio Sampling	16-bit PCM audio, 44.1KHz and 48KHz
Output	Uncompressed 1080p, 720p60 and 480p60 UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection)
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 – 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Minimum Hardware Requirements	PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more One USB-C interface or USB-A interface Smartphone: Android device with UVC support and USB-C interface* *Latest UC3020 FW upgrade for smartphone support is required. For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/
OS Support	Windows 10 and above * Mac OS X 10.13 and above Android 5.0.1 and above with UVC support *Window 7 requires driver installation
Physical Properties
Housing	Aluminum
Weight	0.04 kg ( 0.09 lb )
Dimensions (L x W x H)	4.20 x 7.30 x 1.40 cm (1.65 x 2.87 x 0.55 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

SKU	UC3020-AT
Barcode #	672792009433
Brand	ATEN
Shipping Weight	0.3200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3
