4K HDMI pass-through
Maintains HDMI video up to 4096 × 2160 at 60Hz with bandwidth up to 18Gbps.
StarTech 4K HDMI Audio Extractor with 4K 60Hz Support, HDR - HD202A
Model # HD202A
-
SKU: HD202A
$136.00
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HD202A
4K 60Hz HDMI Audio Extractor with HDR
Extract HDMI audio to optical Toslink or stereo RCA while passing HDMI video up to 4K 60Hz with HDR support.
4K 60HzHDMI 2.0HDR pass-throughToslink + RCA
Built for dependable use
Digital optical audio
Extracts SPDIF audio supporting PCM 2.0, Dolby Digital and DTS 5.1 formats.
Stereo RCA output
Connects directly to two-channel analogue audio equipment.
EDID audio management
Selectable two-channel, 5.1-channel and pass-through modes aid source and audio compatibility.
What to know before you connect
- The HD202A does not support DVI monitors.
- RCA output is two-channel stereo.
- SPDIF format support depends on the source audio and selected EDID mode.
- An HDMI source and display cables are required and are not listed as included.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Frequently asked questions
What does the StarTech HD202A do?
It passes an HDMI video signal to a display while extracting the audio to Toslink optical or stereo RCA equipment.
What connections does the HD202A provide?
It provides HDMI input, HDMI output, stereo RCA output and Toslink optical output.
What is the maximum verified performance?
It supports video up to 4096 × 2160 at 60Hz, HDMI 2.0 bandwidth up to 18Gbps and HDR pass-through.
How is the HD202A powered?
It uses the included universal 5V 1A AC power adapter with AU/ANZ plug support.
What compatibility should I check?
It supports HDMI sources and displays plus optical or stereo RCA audio equipment; DVI monitors are not supported.
What audio formats are supported?
SPDIF supports PCM 2.0, Dolby Digital and DTS 5.1; the RCA output provides two-channel stereo audio.
What is included in the package?
The package includes the HDMI audio extractor, universal ANZ-compatible power adapter, two mounting brackets and two screws.
What warranty applies in Australia?
The Australian-version HD202A supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HD202A)
Features and highlights
4K HDMI pass-through
Maintains HDMI video up to 4096 × 2160 at 60Hz with bandwidth up to 18Gbps.
Digital optical audio
Extracts SPDIF audio supporting PCM 2.0, Dolby Digital and DTS 5.1 formats.
Stereo RCA output
Connects directly to two-channel analogue audio equipment.
EDID audio management
Selectable two-channel, 5.1-channel and pass-through modes aid source and audio compatibility.
Mountable powered design
Includes an ANZ-compatible universal power adapter, brackets and mounting screws.
Key highlights
- HDR video pass-through
- HDCP compliant
- Aluminium enclosure
- 2-year warranty
Official StarTech.com 2 years manufacturer warranty in Australia.
Technical specifications
StarTech HD202A · 4K 60Hz HDMI Audio Extractor with HDR
Warranty Information
Warranty
2 Years
Hardware
AV Input
HDMI
AV Outputs
HDMI pass-through; stereo RCA; Toslink optical
Audio
Yes
Performance
Maximum Digital Resolution
4096 × 2160 at 60Hz
Video Bandwidth
Up to 18Gbps
HDR
Pass-through supported
SPDIF Audio
PCM 2.0, Dolby Digital and DTS 5.1
RCA Audio
Two-channel stereo
Widescreen Support
Yes
Connectors

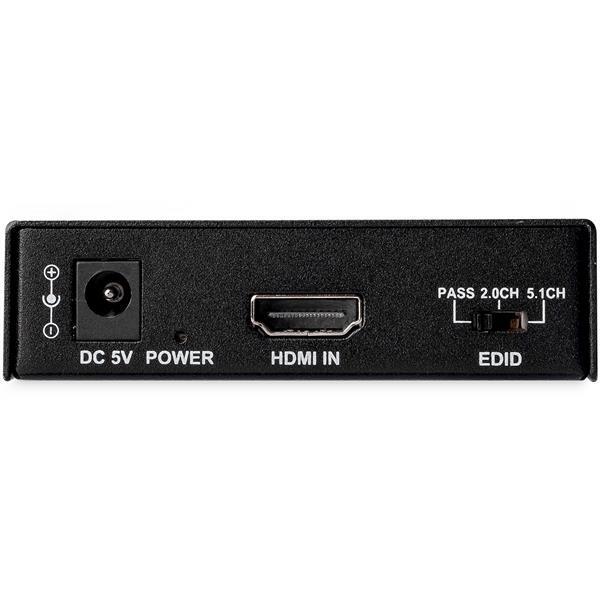

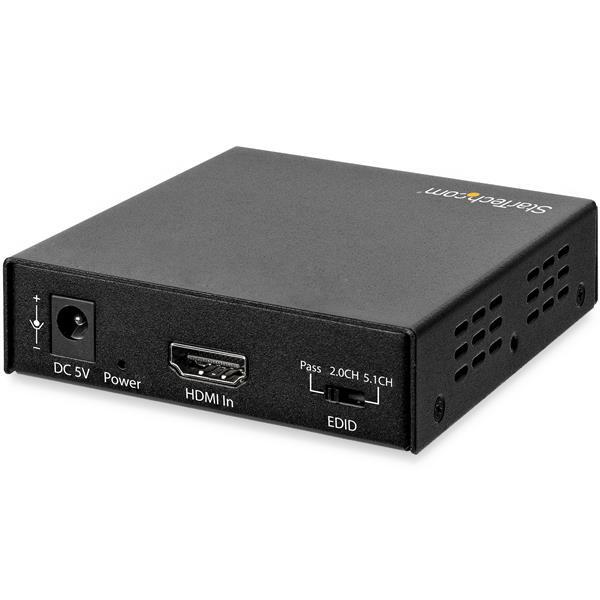

Input
1 × HDMI female

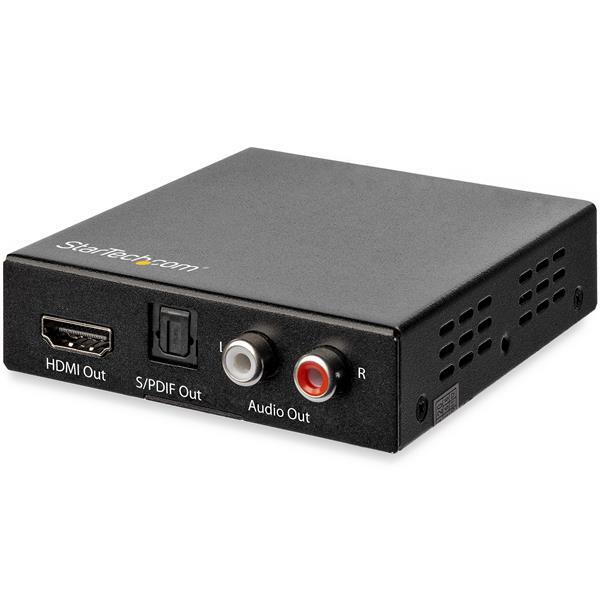

Video Output
1 × HDMI female
Audio Outputs
1 × stereo RCA; 1 × Toslink SPDIF optical
System Requirements and Notes
Display Limitation
DVI monitors are not supported
Power
Power Source
AC adapter included
Adapter Input
100240V AC, 0.4A
Adapter Output
5V DC, 1000mA
Plug Type
M
Environmental
Operating Temperature
0°C to 45°C
Storage Temperature
-20°C to 70°C
Humidity
10%90% RH, non-condensing
Physical Characteristics
Colour
Black
Material
Aluminium
Product Length
3.5in [9.0cm]
Product Width
3.1in [8.0cm]
Product Height
0.9in [2.2cm]
Weight
7.3oz [208g]
Packaging Information
Quantity
1
Package Length
7.7in [19.5cm]
Package Width
6.2in [15.7cm]
Package Height
2.0in [5.2cm]
Shipping Weight
1.1lb [0.5kg]
What's in the Box
Included
1 × HDMI audio extractor
Included
1 × Universal power adapter with ANZ plug
Included
2 × Mounting brackets
Included
2 × Mounting screws
| SKU | HD202A |
| Barcode # | 65030878609 |
| Brand | Startech |
| Shipping Weight | 0.4400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.190m |
| Shipping Cubic | 0.000950000m3 |
