HDMI audio extraction
Separates audio from an HDMI source while passing the video signal to an HDMI display.
StarTech HDMI Audio Extractor, HDMI to 3.5mm Audio Converter, 1080p - HD2A
Model # HD2A
-
SKU: HD2A
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HD2A
1080p HDMI Audio Extractor with 3.5mm and Toslink
Separate stereo audio from an HDMI signal to 3.5mm analogue or Toslink optical equipment while passing video up to 1080p.
1080p HDMI3.5mm audioToslink adapterUSB powered
Built for dependable use
Analogue and digital options
Provides a 3.5mm output and includes a Toslink adapter for compatible optical equipment.
1080p video pass-through
Supports HDMI video resolutions up to 1920 × 1080.
Compact USB-powered design
Uses the included 780mm USB power cable, avoiding a separate AC adapter.
What to know before you connect
- The audio specification is 2.1-channel stereo.
- Dual-RCA output requires a separate 3.5mm-to-RCA adapter.
- Maximum video resolution is 1080p.
- A USB power source is required.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Frequently asked questions
What does the StarTech HD2A do?
It passes HDMI video to a display and extracts the audio to a 3.5mm output or the included Toslink adapter.
What connections does the HD2A provide?

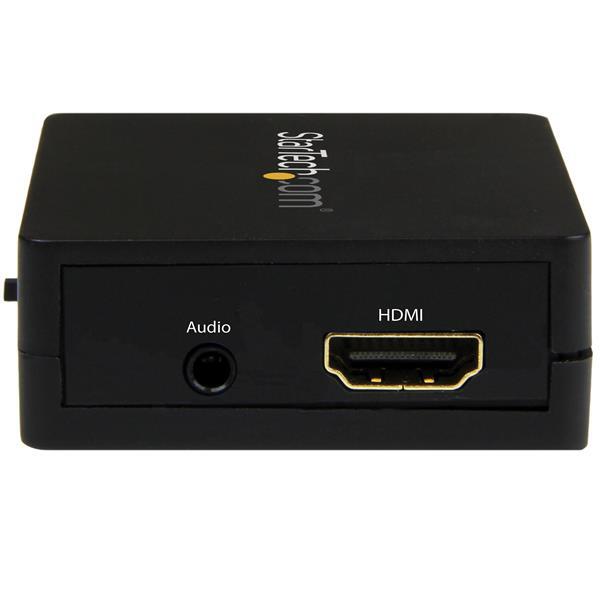

It provides HDMI input, HDMI output, a 3.5mm audio output and a Mini-USB power input.
What is the maximum verified performance?
The HDMI pass-through supports resolutions up to 1920 × 1080, with 2.1-channel stereo audio extraction.
How is the HD2A powered?
It is powered through the included 780mm USB power cable connected to a suitable 5V USB source.
What compatibility should I check?
It is HDMI 1.3b compliant and HDCP enabled for supported HDMI sources and displays, with analogue or Toslink audio equipment.
Can it output dual-RCA audio directly?
No. Dual-RCA connection requires a separate 3.5mm-to-RCA adapter; the included adapter is for Toslink optical audio.
What is included in the package?
The package includes the HD2A extractor, a 780mm USB power cable and a Toslink adapter.
What warranty applies in Australia?
The Australian-version HD2A supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HD2A)
Features and highlights
HDMI audio extraction
Separates audio from an HDMI source while passing the video signal to an HDMI display.
Analogue and digital options
Provides a 3.5mm output and includes a Toslink adapter for compatible optical equipment.
1080p video pass-through
Supports HDMI video resolutions up to 1920 × 1080.
Compact USB-powered design
Uses the included 780mm USB power cable, avoiding a separate AC adapter.
HDMI and HDCP compatibility
HDMI 1.3b compliant and HDCP enabled for supported source and display configurations.
Key highlights
- Explore EP93Z3E chipset
- 2.1 stereo audio
- Small 60 × 55 × 20mm housing
- No software required
Official StarTech.com 2 years manufacturer warranty in Australia.
Technical specifications
StarTech HD2A · 1080p HDMI Audio Extractor with 3.5mm and Toslink
Warranty Information
Warranty
2 Years
Hardware
AV Input
HDMI
AV Outputs
HDMI pass-through; 3.5mm audio
Audio
Yes
Chipset ID
Explore - EP93Z3E
Performance
Maximum Digital Resolution
1920 × 1080
Supported Resolution
Up to 1080p
Audio
2.1-channel stereo
Widescreen Support
Yes
Connectors
Power
1 × Mini-USB
Input
1 × HDMI female
Outputs
1 × HDMI female; 1 × 3.5mm mini-jack
Power
Power Source
USB Powered
Input Voltage
5V DC
Output Voltage
5V DC
Environmental
Operating Temperature
0°C to 70°C
Storage Temperature
-10°C to 80°C
Humidity
5%95% RH, non-condensing
Physical Characteristics
Colour
Black
Product Length
2.4in [60mm]
Product Width
2.2in [5.5cm]
Product Height
0.8in [2.0cm]
Weight
1.4oz [39g]
Packaging Information
Quantity
1
Package Length
6.8in [17.3cm]
Package Width
5.6in [14.3cm]
Package Height
1.3in [3.3cm]
Shipping Weight
4.5oz [128g]
What's in the Box
Included
1 × HDMI audio extractor
Included
1 × 2.5ft [780mm] USB power cable
Included
1 × Toslink adapter
| SKU | HD2A |
| Barcode # | 65030863308 |
| Brand | STARTECH |
| Shipping Weight | 0.1300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
