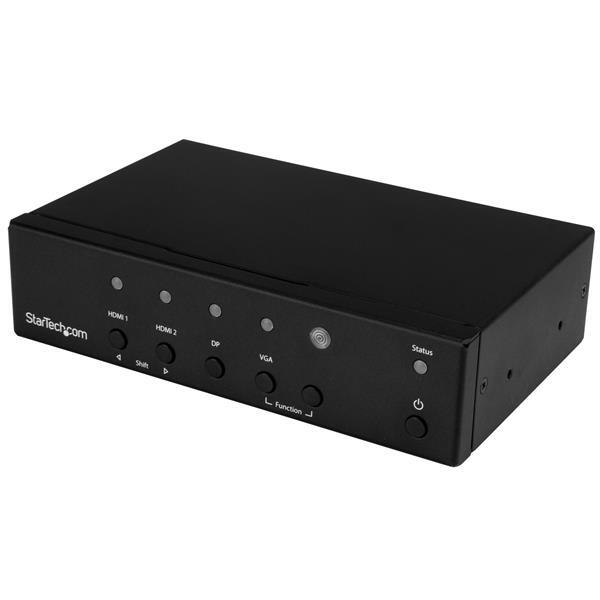

This multi-input converter switch lets you connect your DisplayPort (DP), HDMI® and VGA audio/video sources to one HDMI display or projector. The switch enables you to automatically or manually switch between your video sources and features built-in signal conversion, which eliminates the cost and hassle of using additional adapters for the sake of compatibility. This versatile A/V switch supports video resolutions up to 1920x1200 (1080p) on your VGA source and up to 4K at 30 Hz on your DisplayPort and HDMI video sources. For a tidy, professional installation, the converter switch includes mounting hardware.

A diagram showing how the switch connects to a display and video sources Save time with a single switch for DisplayPort, HDMI and VGA The A/V switch features built-in HDMI conversion, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same HDMI display, without having to use additional adapters or scalers. Effortless control with automatic or priority switching The converter switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching. The converter switch is perfect for digital signage applications where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages. Focus on your presentation, not boardroom connections This versatile A/V switch has been designed with the boardroom and classroom in mind, with HDMI, VGA and DisplayPort inputs to support a wide range of devices, and a built-in converter that makes it easy to connect to the room’s display without having to connect additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it so easy to share a projector or other display device between multiple sources. Impressive DisplayPort and HDMI image quality with 4K support The video switch maintains Ultra HD 4K picture quality while switching between content from HDMI and DisplayPort source devices, including Blu-ray™ players and DVD players, computer systems, video game consoles, digital cable and satellite boxes and A/V receivers. 4K video support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p -- 8.29 million pixels versus 2.07 million pixels. It offers a more engaging visual experience for audiences in a wide range of venues, including conference centers, boardrooms, educational facilities, and commercial settings. When connecting a VGA source, the switch supports high-definition resolutions up to 1920 x 1200. With its exceptional resolution and image quality, this switch is ideal for bringing your digital signage to life. The HDVGADP2HD is TAA compliant and backed by a 2-year StarTech.com warranty and free lifetime support.
Switch between DisplayPort, VGA or two HDMI source devices on one display, with automatic and priority switching - HDMI®, VGA and DP to HDMI Converter Switch - 4K
Multi-Input to HDMI Automatic Switch and Converter - 4K

(HDVGADP2HD)

Packaging Information
Package Height65 mm [2.6 in]
Package Length21.1 cm [8.3 in]
Package Width29.6 cm [11.7 in]
Shipping (Package) Weight1.2 kg [2.7 lb]
Performance
Audio Specifications2-channel 3.5mm stereo audio (VGA)
2-channel DisplayPort stereo audio (DP)
7.1 surround sound (HDMI)
Maximum Analog Resolutions1920 x 1200 at 60 Hz
Maximum Digital Resolutions3840x2160 at 30 Hz
Supported ResolutionsHDMI and DisplayPort
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)

VGA
1024 x 768
1280 x 720 (High-definition 720p)
1920 x 1080 (High-definition 1080p)
1920 x 1200
Wide Screen SupportedYes
Physical Characteristics
Product Height4.1 cm [1.6 in]
Product Length16.1 cm [6.3 in]
Product Width10.5 cm [4.1 in]
Weight of Product615 g [21.7 oz]
Power
Center Tip PolarityPositive
Input Voltage100 - 240 AC
Output Current1.5 A
Output Voltage12 DC
Plug TypeM
Power Consumption (In Watts)18
Power SourceAC Adapter Included
What's in the Box
Included in Packageconverter switch
footpad set
IR remote control
mounting bracket kit
quick start guide
RJ11 cable
RJ11-to-RS232 converter
screw kit
universal power adapter (NA / EU / UK / AU)
Indicators
LED Indicatorsstatus LED
selected port LEDs
Hardware
Ports4
AV OutputHDMI
AV InputVGA
HDMI
DisplayPort
AudioYes
Active or Passive AdapterActive
Environmental
Storage Temperature-10°C to 60°C (14°F to 140°F)
Operating Temperature0°C to 40°C (32°F to 104°F)
Humidity0% ~ 80%

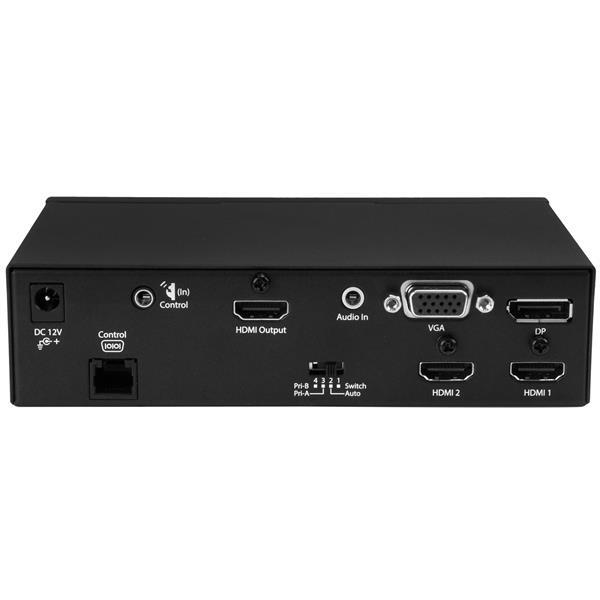

Connector(s)
Connector AInfrared Female Input
VGA (15 pin, High Density D-Sub) Female Input
Connector BHDMI (19 pin) Female Output
Connector A3.5 mm Mini-Jack (3 Position) Female Input
DisplayPort (20 pin) Female Input
HDMI (19 pin) Female Input
SKU HDVGADP2HD
Barcode # 65030863476
Brand StarTech
Shipping Weight 1242.0000kg
Shipping Width 0.296m
Shipping Height 0.065m
Shipping Length 0.211m
