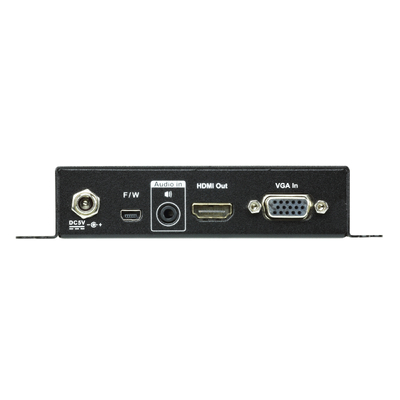

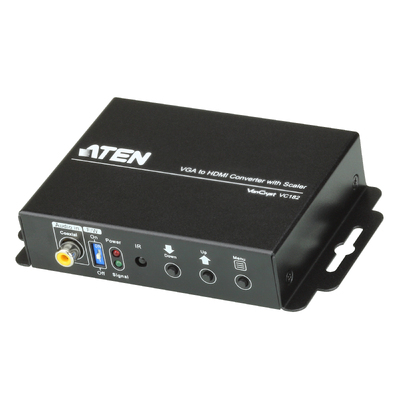

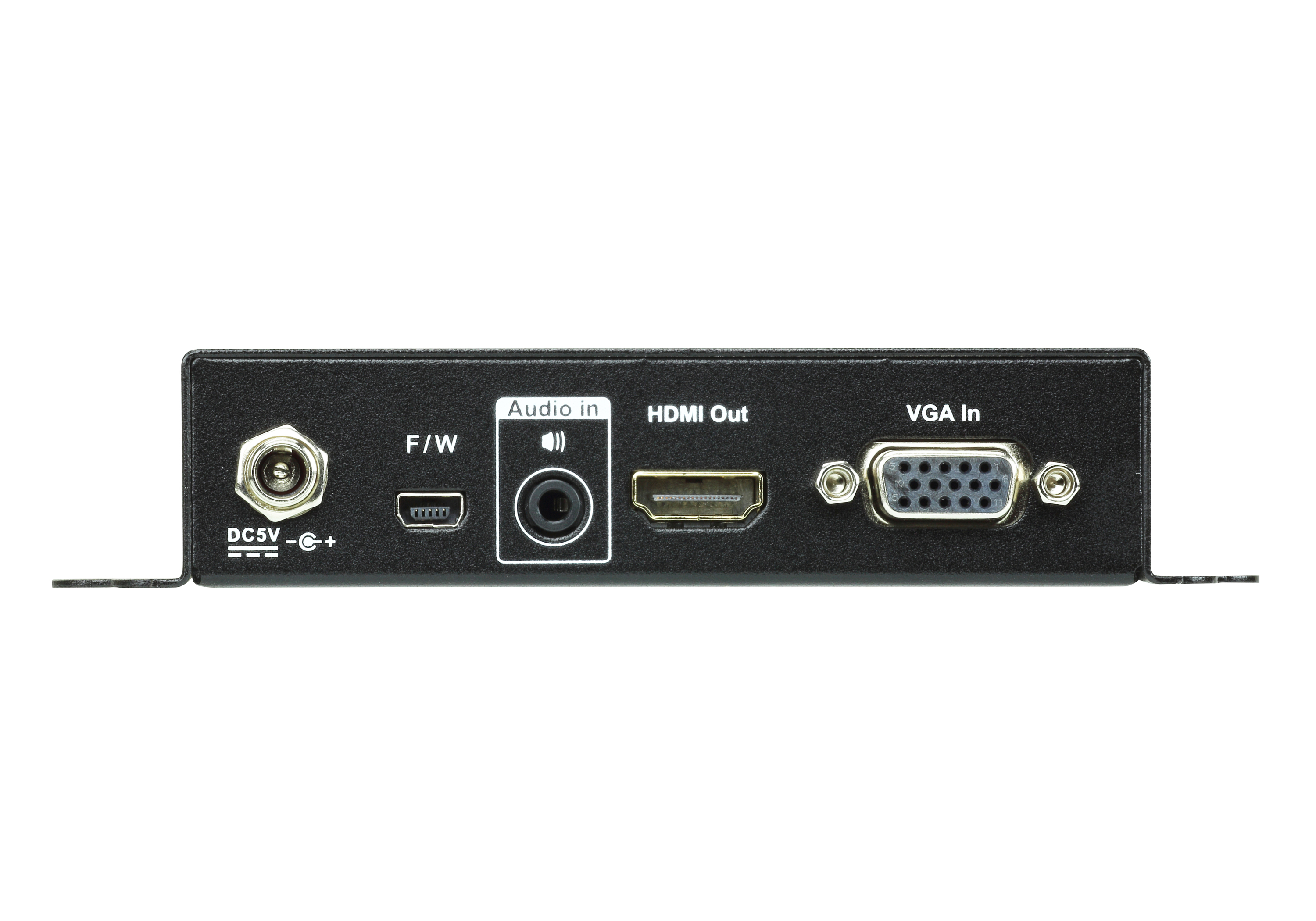

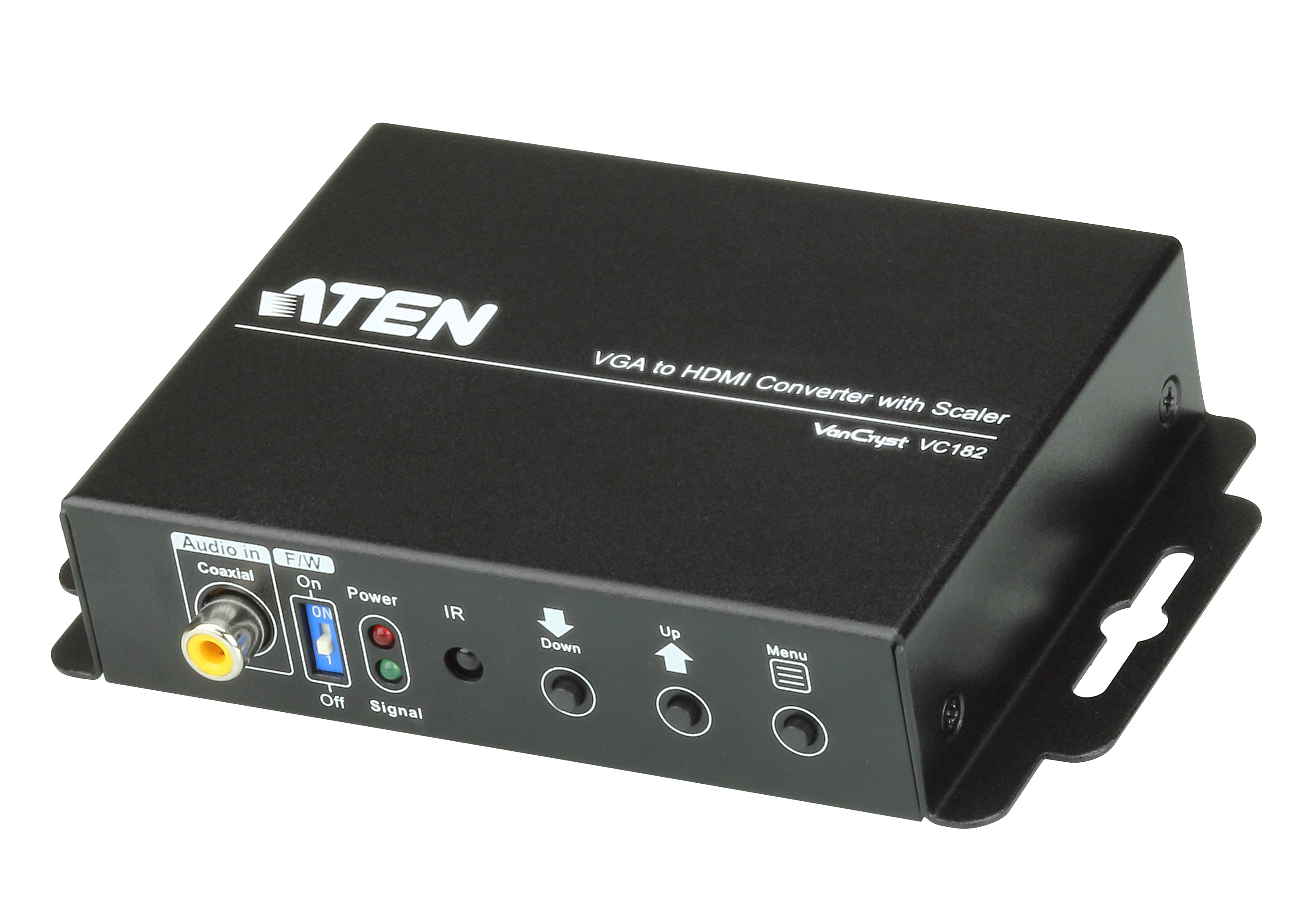

The VC182 VGA to HDMI converter with Scaler offers an easy and convenient way of converting VGA input signals into digital video (HDMI). The VC182 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

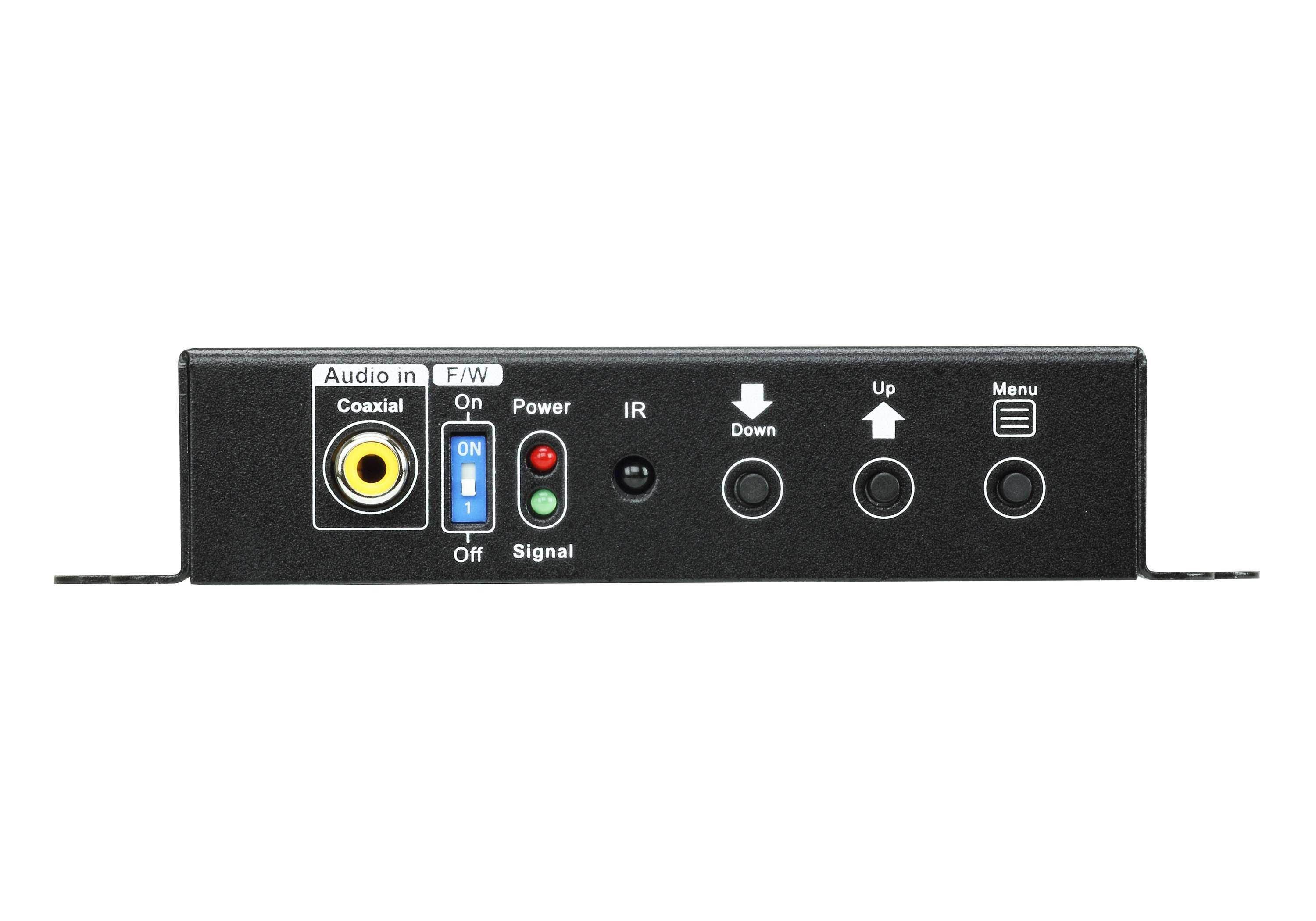

You can operate the VC182 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.

Package Contents

1x VC182 VGA to HDMI Converter with Scaler
1x Power Adapter
1x Software CD
1x User Instructions

(VC182-AT-U)

Video Input
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 ?
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 ?
Video
Max. Pixel Clock	165 MHz
Max. Resolution	Up to 1080p
Scaler Resolutions	480p; 480i; 576p; 576i; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200
Audio
Input	Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:1.56WBTU
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 - 60 ºC
Humidity	20 - 90% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.31 kg ( 0.68 lb )
Dimensions (L x W x H)	11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.)
Carton Lot	5 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
