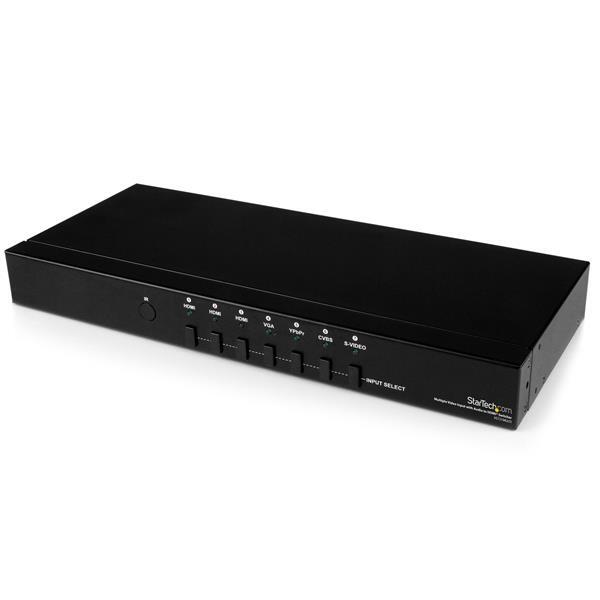

The VS721MULTI Multiple Video Input to HDMI® Switcher enables users to switch between 7 different audio-video sources to a single HDMI-equipped display. This versatile switcher is the perfect solution for combining digital and analog video sources (RGB/YPbPr/YCbCr) with your digital HDMI® display, eliminating the cost of upgrading individual components (i.e. DVD player, PC, VCR, etc.). An all-in-one multimedia solution, the video converter/switcher includes support for full high definition 1080p video resolution as well as digital and analog audio. Plus, the switch features RS232 remote serial control, and includes a convenient IR remote control for switching between video sources . Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Share an HDMI® display between multiple analog or digital video sources (e.g VGA, Component, S-Video, Composite, HDMI) - Multiple Video Input to HDMI® Switcher
Multiple Video Input with Audio to HDMI Scaler Switcher - HDMI / VGA / Component

(VS721MULTI)

Hardware
AV InputComponent
Composite
HDMI
S-Video
VGA
AV OutputHDMI
CablingHDMI
Industry StandardsHigh Speed HDMI®, HDCP
Ports7
Indicators
LED Indicators1 - HDMI
2 - HDMI
3 - HDMI
4 - VGA
5 - YPbPr
6 - CVSB
7 - S-VIDEO
Packaging Information
Package Height90 mm [3.5 in]
Package Length45.9 cm [18.1 in]
Package Width26 cm [10.2 in]
Shipping (Package) Weight2.7 kg [6 lb]
Performance
Maximum Analog ResolutionsVGA: 1920x1200
YPbPr: 1920x1080
Maximum Digital Resolutions1920x1200
Supported ResolutionsSupport VGA mode
640x480, 720x400, 800x600, 848x480, 1024x768, 1152x864, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1400x1050, 1440x900, 1440x1050, 1600x1200, 1680x1050, 1920x1080, 1920x1200

Support YPbPR mode
720x480, 720x576, 720x480, 720x576, 1280x720, 1920x1080, 1920x1080
Wide Screen SupportedYes
Physical Characteristics
ColorBlack
Enclosure TypeAluminum
Product Height4.5 cm [1.8 in]
Product Length38.4 cm [15.1 in]
Product Width17.3 cm [6.8 in]
Weight of Product1.8 kg [4 lb]
Power
Center Tip PolarityPositive
Input Current0.6 A
Input Voltage100 - 240 AC
Hardware
AudioYes
Environmental
Storage Temperature-20°c to 85°c (-4°F to 185°F)
Operating Temperature0°c to 70°c (32°F to 158°F)
Humidity0% to 95% RH Non-Condensing

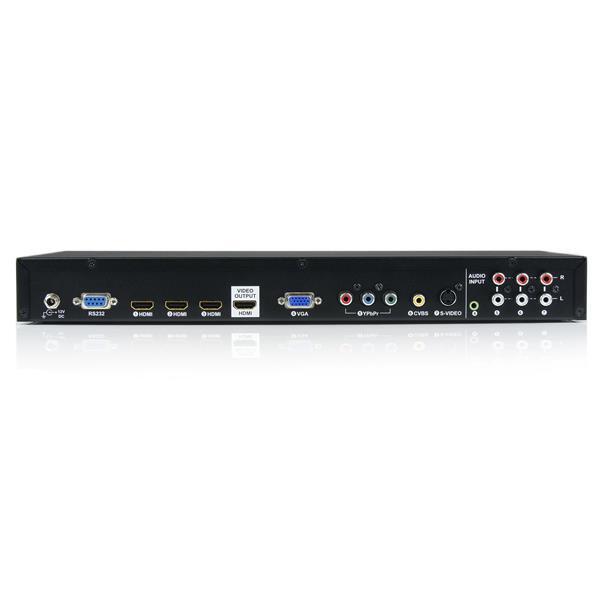

Connector(s)
Connector BHDMI (19 pin) Female
Connector AVGA (15 pin, High Density D-Sub) Female
S-Video (4 pin, Mini-DIN) Female
RCA Female
HDMI (19 pin) Female
Composite Video (1 x RCA) Female
Component Video (3 x RCA) Female
3.5 mm Mini-Jack (3 Position) Female
Power
Output Current1.5 A
Output Voltage12 DC
Plug TypeM
Power Consumption (In Watts)18
Power SourceAC Adapter Included
Software
OS CompatibilityWindows® 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows® Server 2008 R2, 2003(32/64)
What's in the Box
Included in Packageinstruction manual
IR remote control
mounting kit
multiple format to HDMI audio video switch
RS-232 control software CD
RS232 serial cable (6 ft.)
universal power adapter (NA, EU, UK, AU)
SKU VS721MULTI
Barcode # 65030848497
Brand StarTech
Shipping Weight 2700.0000kg
Shipping Width 0.260m
Shipping Height 0.090m
Shipping Length 0.459m
